Large PC fan CR Boxes can save a couple hundred dollars per year in electricity and filter replacement cost compared to equivalent large HEPAs
-
189-415 CADR - 5-9 fans
Luggables
Luggables
NOTE: Only blue-fan variants have colored fans.
SKU:LUGKit1
Regular price
$174.00 USD
Sale price
$174.00 USD
Regular price
Unit price
/
per
Couldn't load pickup availability
Luggables
Regular price
$174.00 USD
Sale price
$174.00 USD
Regular price
Unit price
/
per

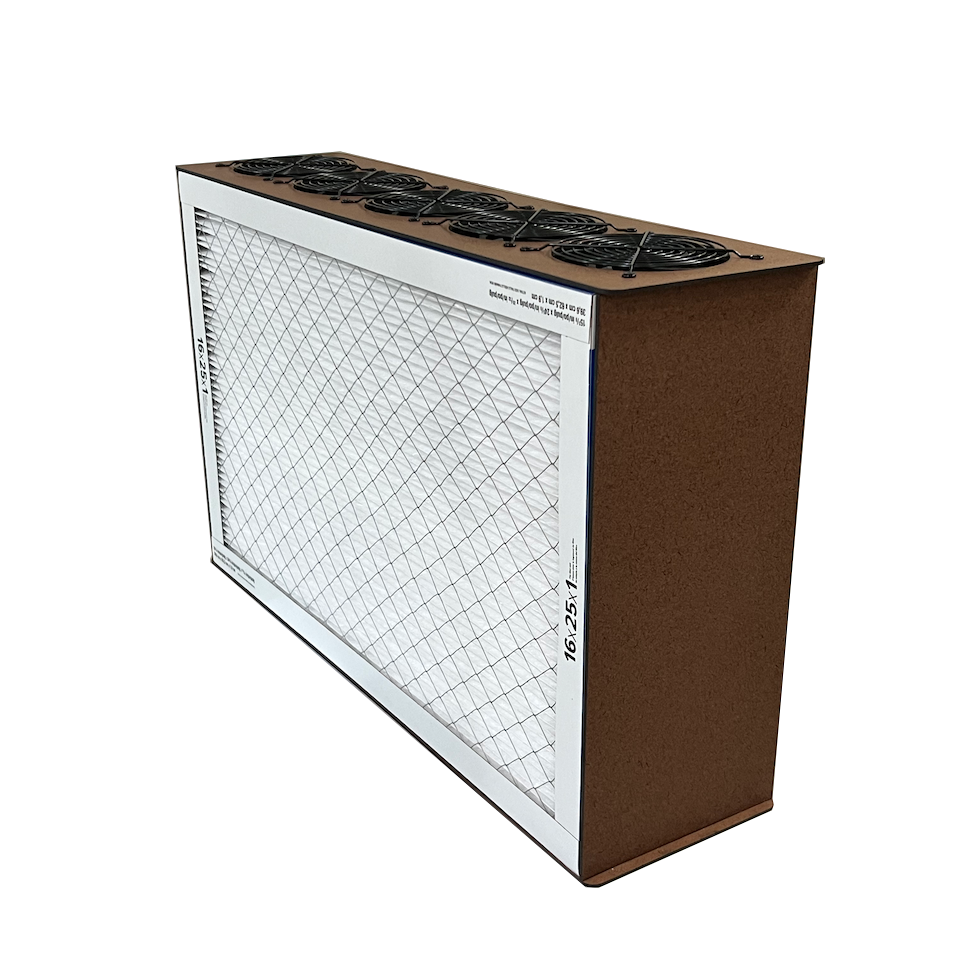

Luggables are our lightweight, portable, and cost-effective CR Boxes for medium-large rooms. This 16x26x7" Luggable boasts 5 premium SickleFlow fans, a great fit for medium-large rooms like open kitchen/family, classrooms, conference rooms etc. It's well-oriented: the main 5-fan bank can blow up or sideways, with one side against a wall. Finally, it really is luggable -- weighing only 6 lbs! Luggable comes with a side suitcase handle installed.

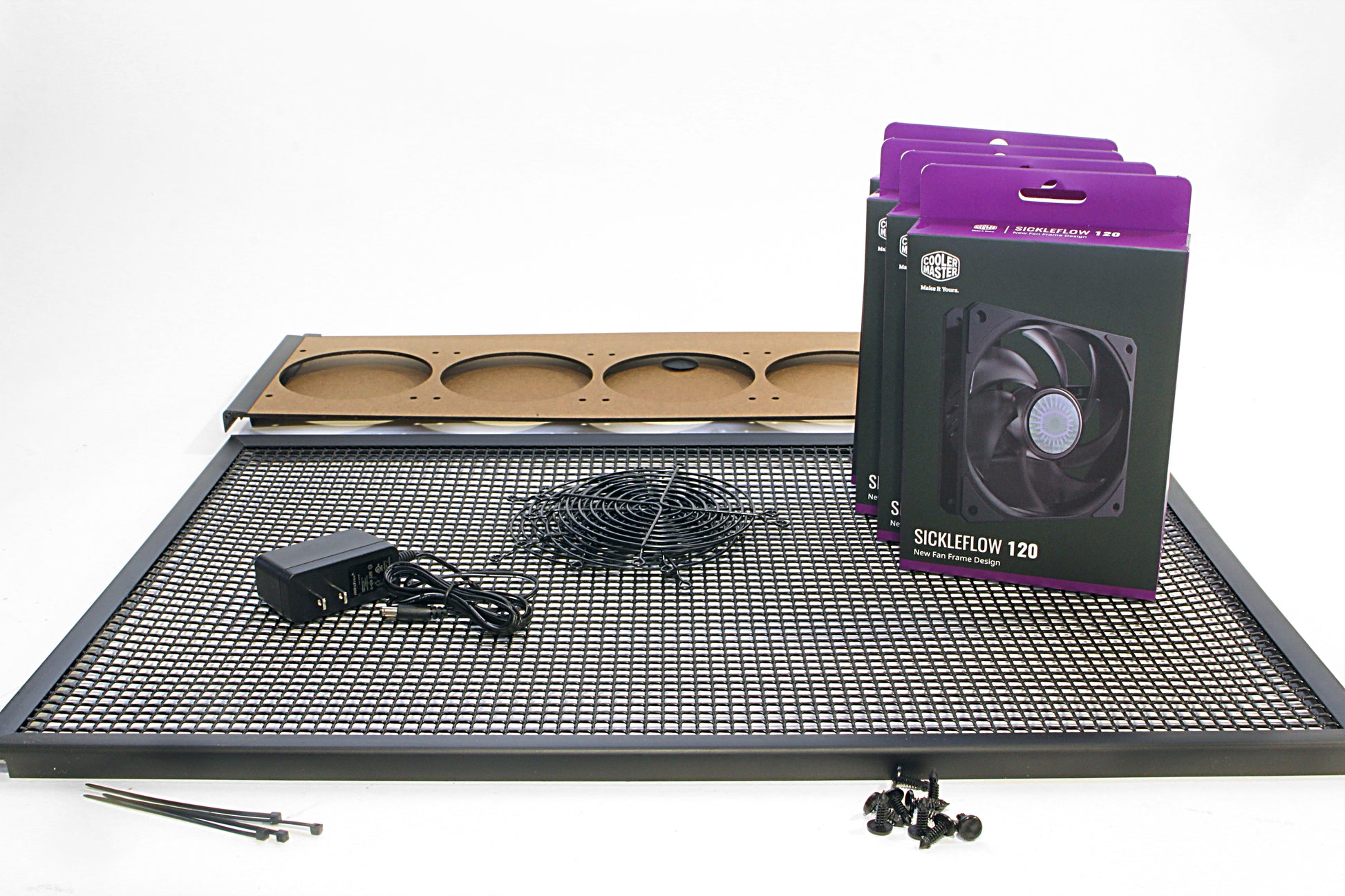

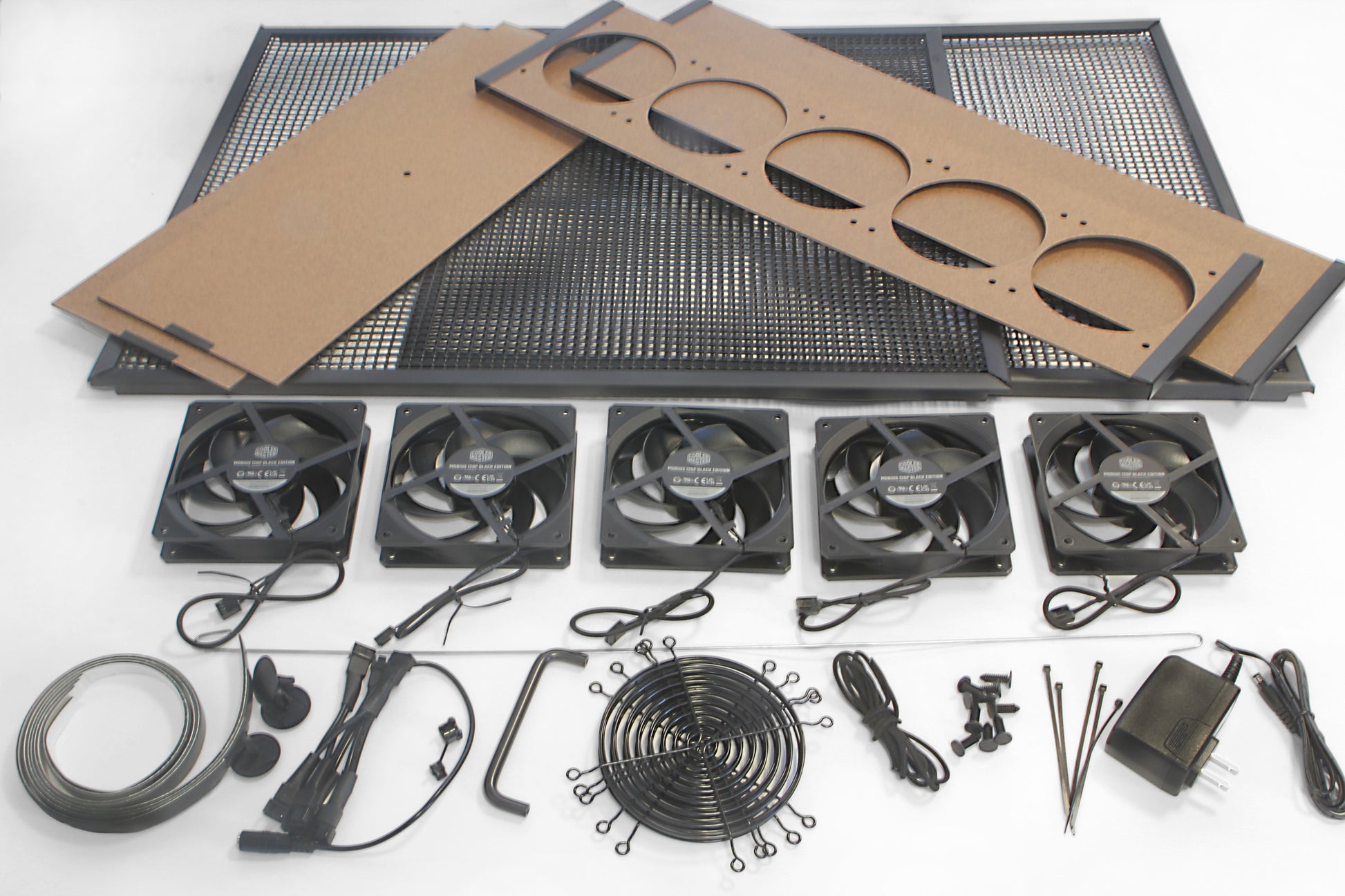

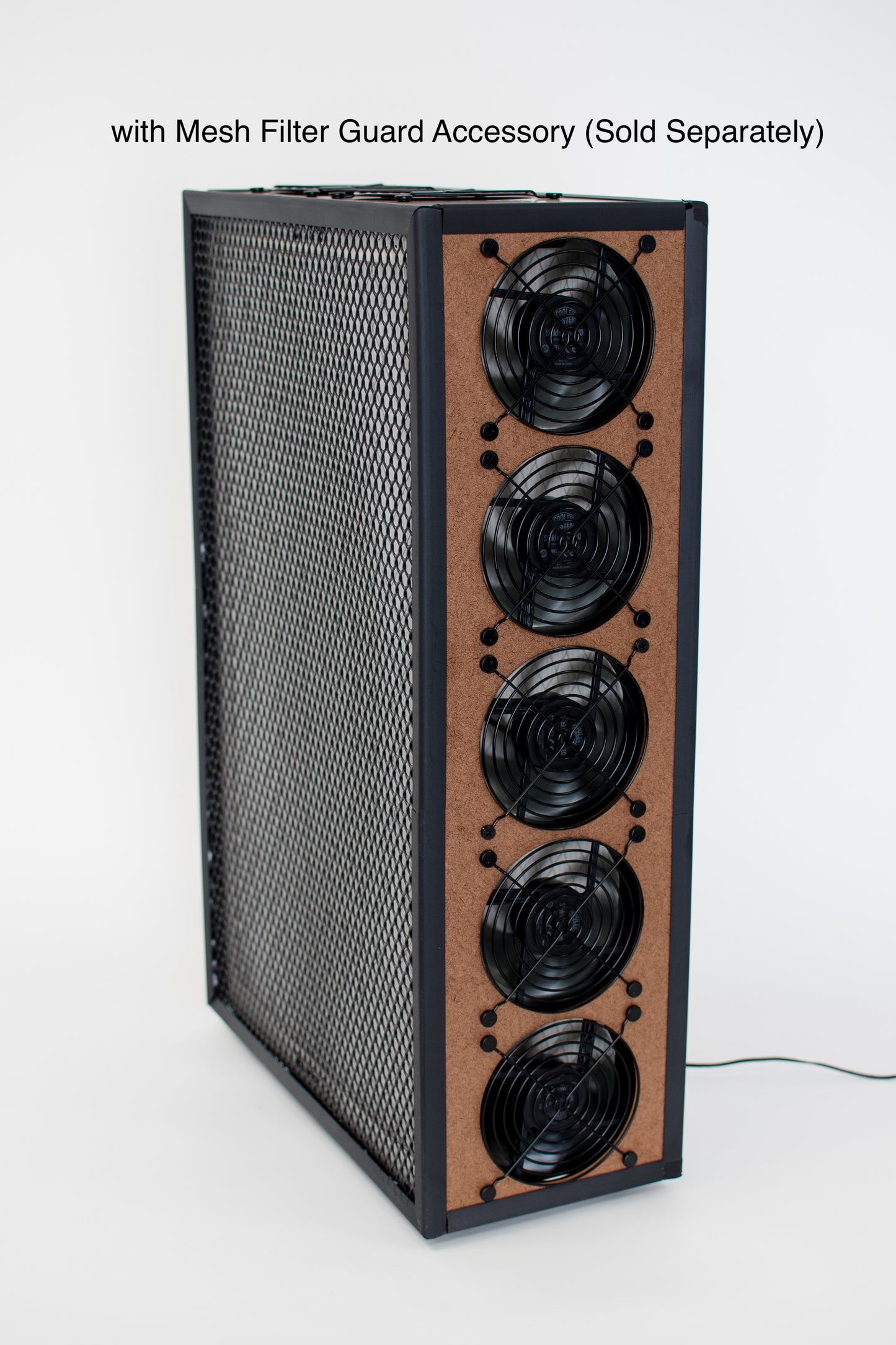

The optional hex mesh filter guard protects from prying little hands and claws.

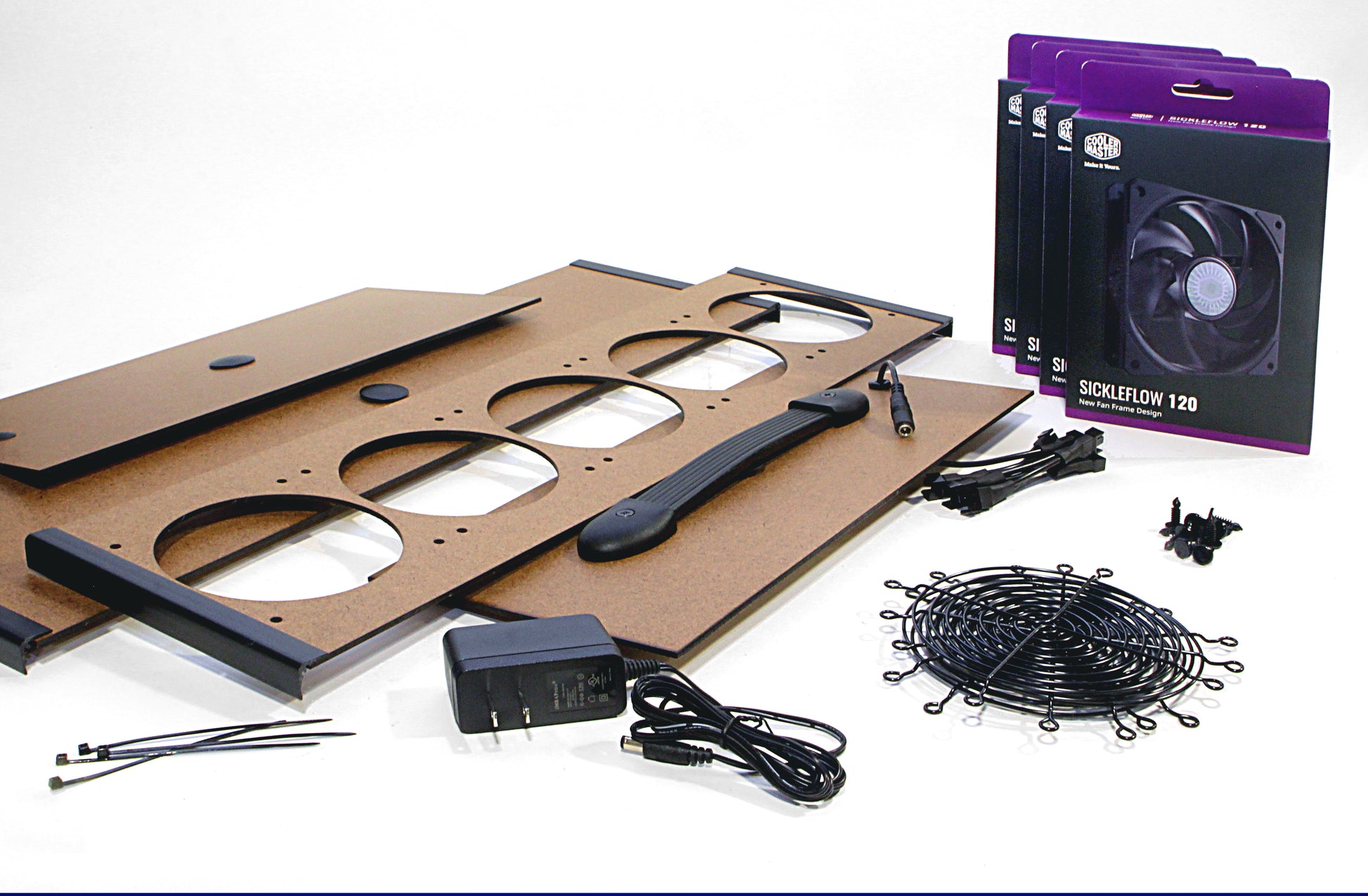

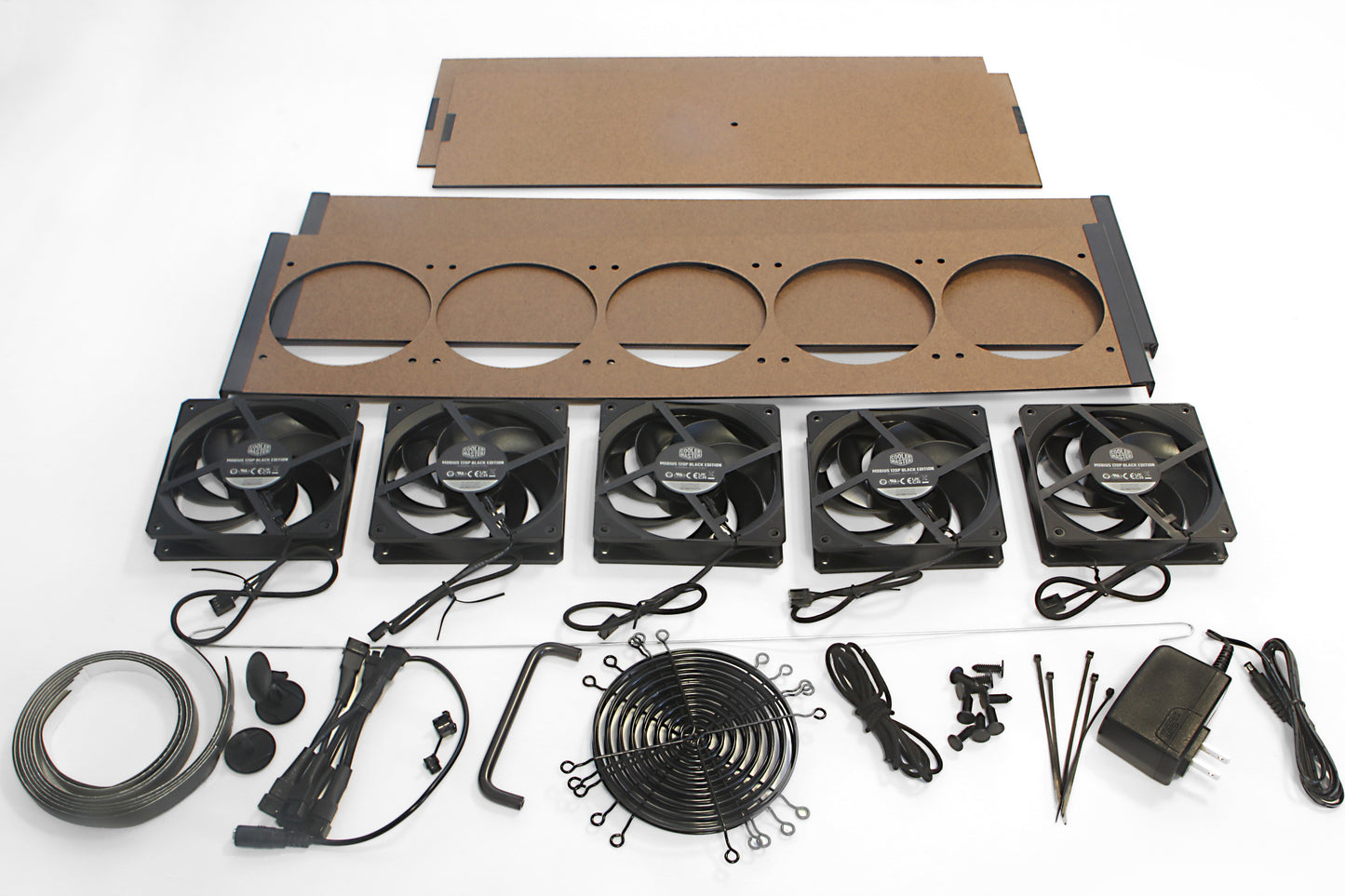

Unassembled Kit has 30 minute assembly time.
Considering shipping prices, unassembled STEM Kit w/o filters can save ~$50 when 3M Filtrete MPR1900/MPR2200 16x25 are purchased separately fromCostco,Lowes, Amazon. Outside the US, try Digi-Key
While working toward UL507 certification to satisfy CARB air cleaner regulations, only unassembled kits without filters will ship to California.
Luggable hardboard panels do not contain lead, Formaldehyde, or PFAS. However, like cooking, lasercutting can generate trace carcinogens hence:
⚠️WARNING: This product may contain chemicals known to the State of California to cause cancer. www.P65Warnings.ca.gov for more information
Luggables are our lightweight, portable, and cost-effective CR Boxes for medium-large rooms. This 16x26x7" Luggable boasts 5 premium SickleFlow fans, a great fit for medium-large rooms like open kitchen/family, classrooms, conference rooms etc. It's well-oriented: the 5-fan bank can blow up or sideways, with one side against a wall. Finally, it really is luggable -- weighing only 6 lbs! Luggable comes with a side suitcase handle installed.
The optional hex mesh filter guard protects from prying little hands and claws.
Unassembled Kit has 30 minute assembly time.
Considering shipping prices, unassembled STEM Kit w/o filters can save ~$50 when 3M Filtrete MPR1900/MPR2200 16x25 are purchased separately fromCostco,Lowes, Amazon. Outside the US, try Digi-Key
While working toward UL507 certification to satisfy CARB air cleaner regulations, only unassembled kits without filters will ship to California.
Luggable hardboard panels do not contain lead, Formaldehyde, or PFAS. However, like cooking, lasercutting can generate trace carcinogens hence:
⚠️WARNING: This product may contain chemicals known to the State of California to cause cancer. www.P65Warnings.ca.gov for more information
Luggables are our lightweight, portable, and cost-effective CR Boxes for medium-large rooms. This 16x26x7" Luggable boasts 5 premium SickleFlow fans: 3 blue and 2 black, bringing cool color to medium-large rooms like restaurants, clubs, open kitchen/family, and classrooms. It's well-oriented: the 5-fan bank can blow up or sideways, with one side against a wall. Finally, it really is luggable -- weighing only 6 lbs! Luggable comes with a side suitcase handle installed.
Note the blue lights will always be on when the fans are powered, and are too bright for bedrooms, but make a nice nightlight elsewhere in the house. The blue lights use 4.4W more than a basic 5-black SickleFlow.
The optional hex mesh filter guard protects from prying little hands and claws.
Unassembled Kit has 30 minute assembly time.
Considering shipping prices, unassembled STEM Kit w/o filters can save ~$50 when 3M Filtrete MPR1900/MPR2200 16x25 are purchased separately fromCostco,Lowes, Amazon. Outside the US, try Digi-Key
While working toward UL507 certification to satisfy CARB air cleaner regulations, only unassembled kits without filters will ship to California.
Luggable hardboard panels do not contain lead, Formaldehyde, or PFAS. However, like cooking, lasercutting can generate trace carcinogens hence:
⚠️WARNING: This product may contain chemicals known to the State of California to cause cancer. www.P65Warnings.ca.gov for more information
Luggables are our lightweight, portable, and cost-effective CR Boxes for medium-large rooms. This 16x26x7" Luggable boasts 5 premium SickleFlow fans: 3 blue and 2 black, bringing cool color to medium-large rooms like restaurants, clubs, open kitchen/family, and classrooms. It's well-oriented: the 5-fan bank can blow up or sideways, with one side against a wall. Finally, it really is luggable -- weighing only 6 lbs! Luggable comes with a side suitcase handle installed.
Note the blue lights will always be on when the fans are powered, and are too bright for bedrooms, but make a nice nightlight elsewhere in the house. The blue lights use 4.4W more than a basic 5-black SickleFlow.
The optional hex mesh filter guard protects from prying little hands and claws.
Unassembled Kit has 30 minute assembly time.
Considering shipping prices, unassembled STEM Kit w/o filters can save ~$50 when 3M Filtrete MPR1900/MPR2200 16x25 are purchased separately fromCostco,Lowes, Amazon. Outside the US, try Digi-Key
While working toward UL507 certification to satisfy CARB air cleaner regulations, only unassembled kits without filters will ship to California.
Luggable hardboard panels do not contain lead, Formaldehyde, or PFAS. However, like cooking, lasercutting can generate trace carcinogens hence:
⚠️WARNING: This product may contain chemicals known to the State of California to cause cancer. www.P65Warnings.ca.gov for more information

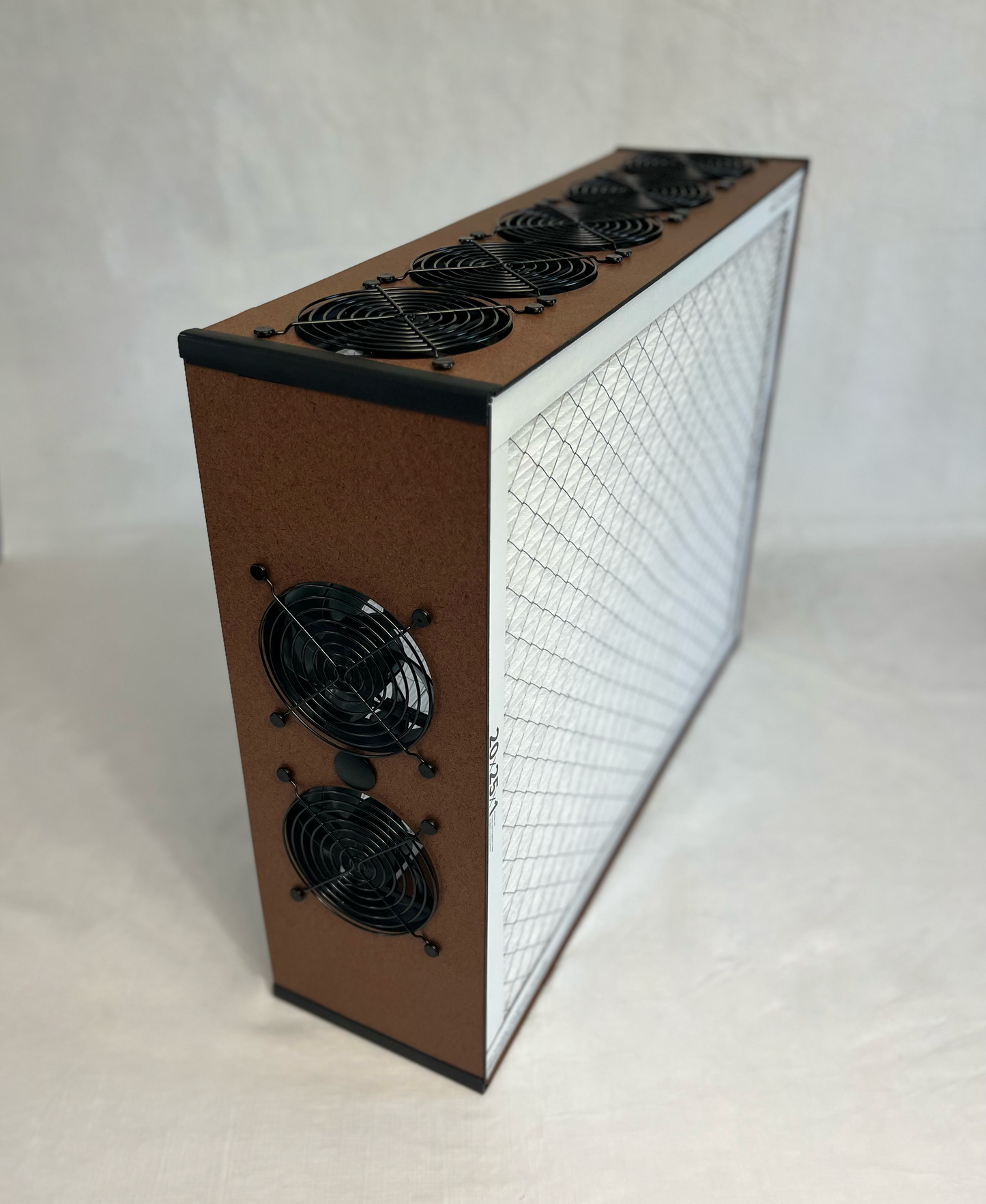

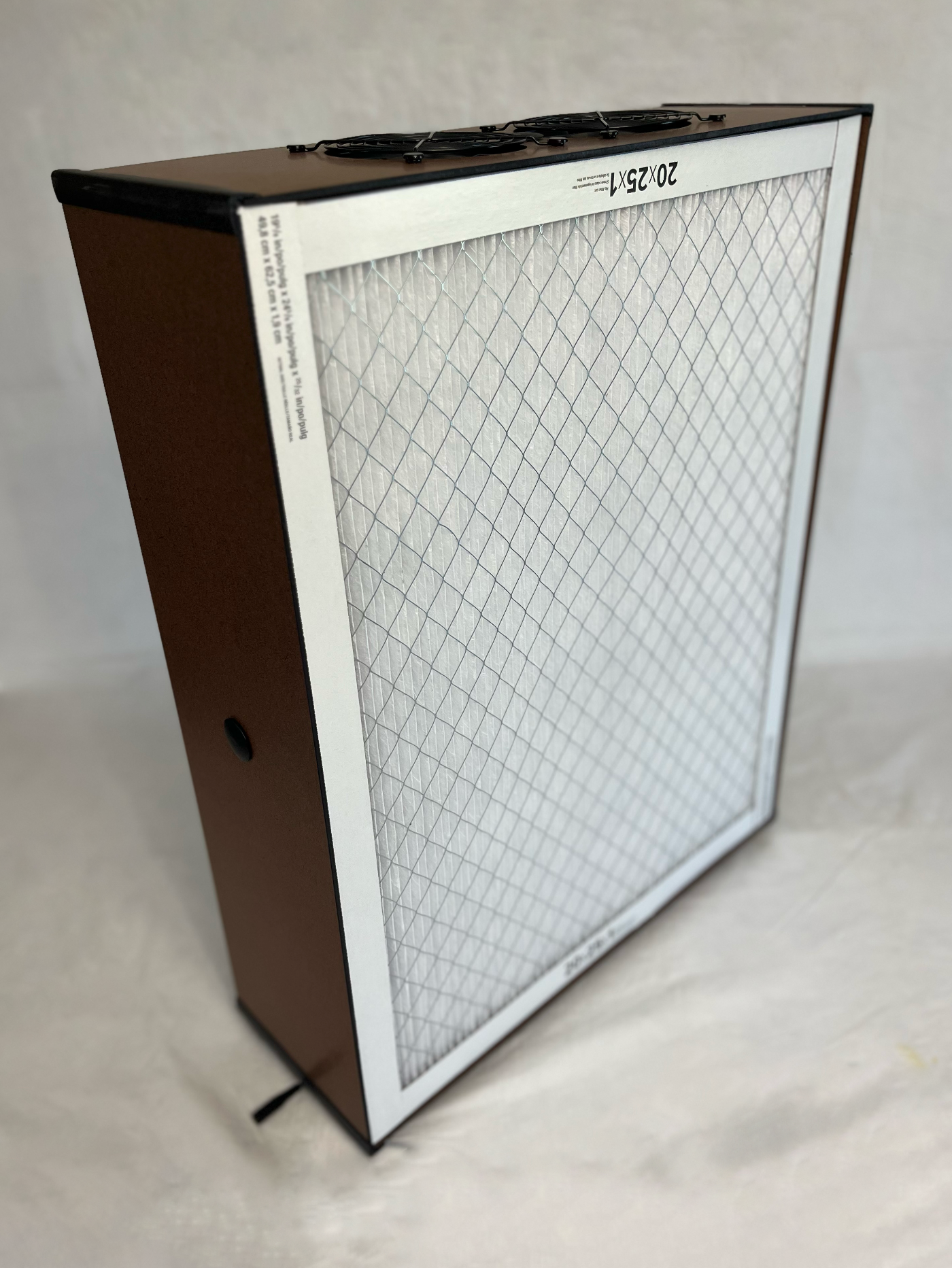

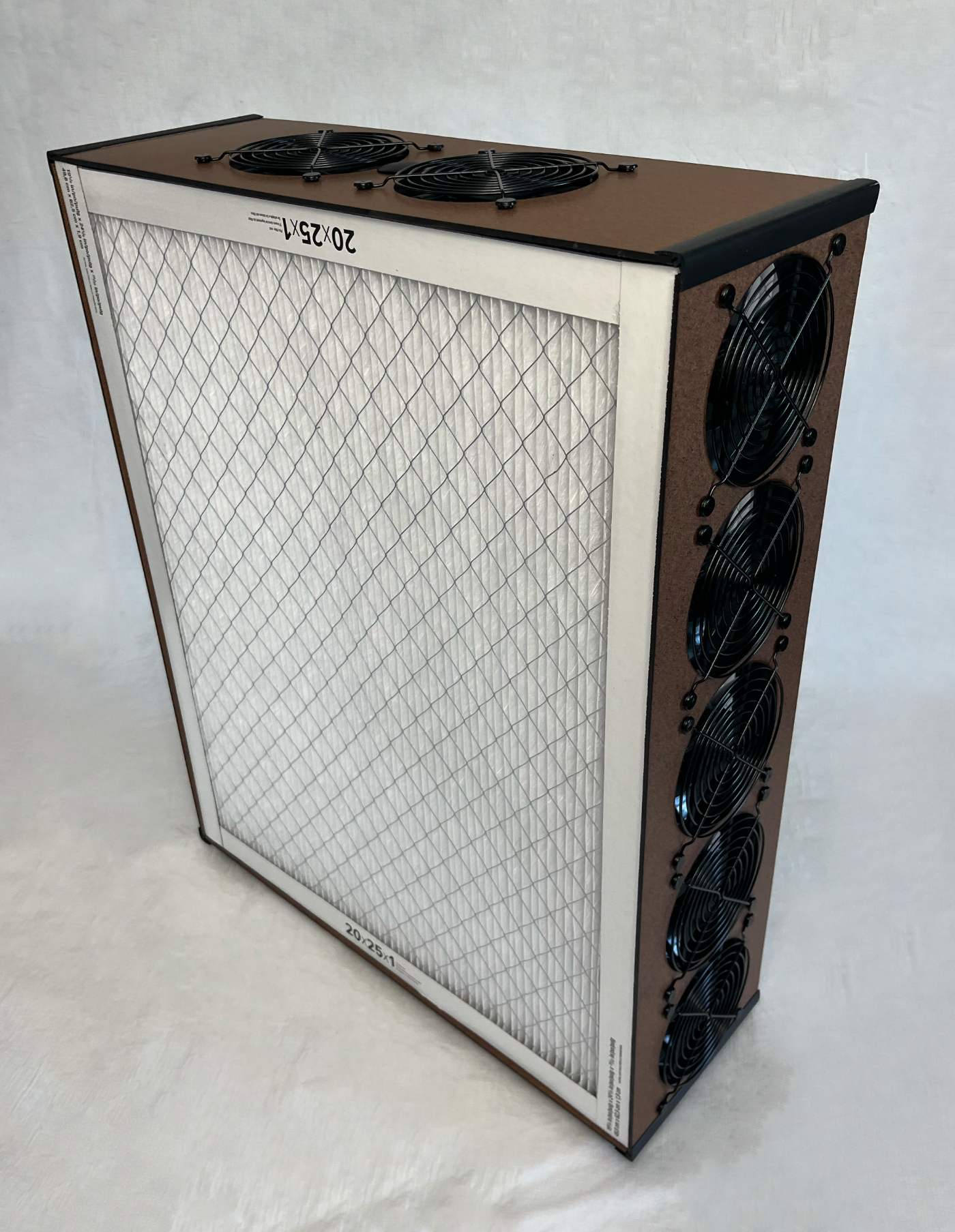

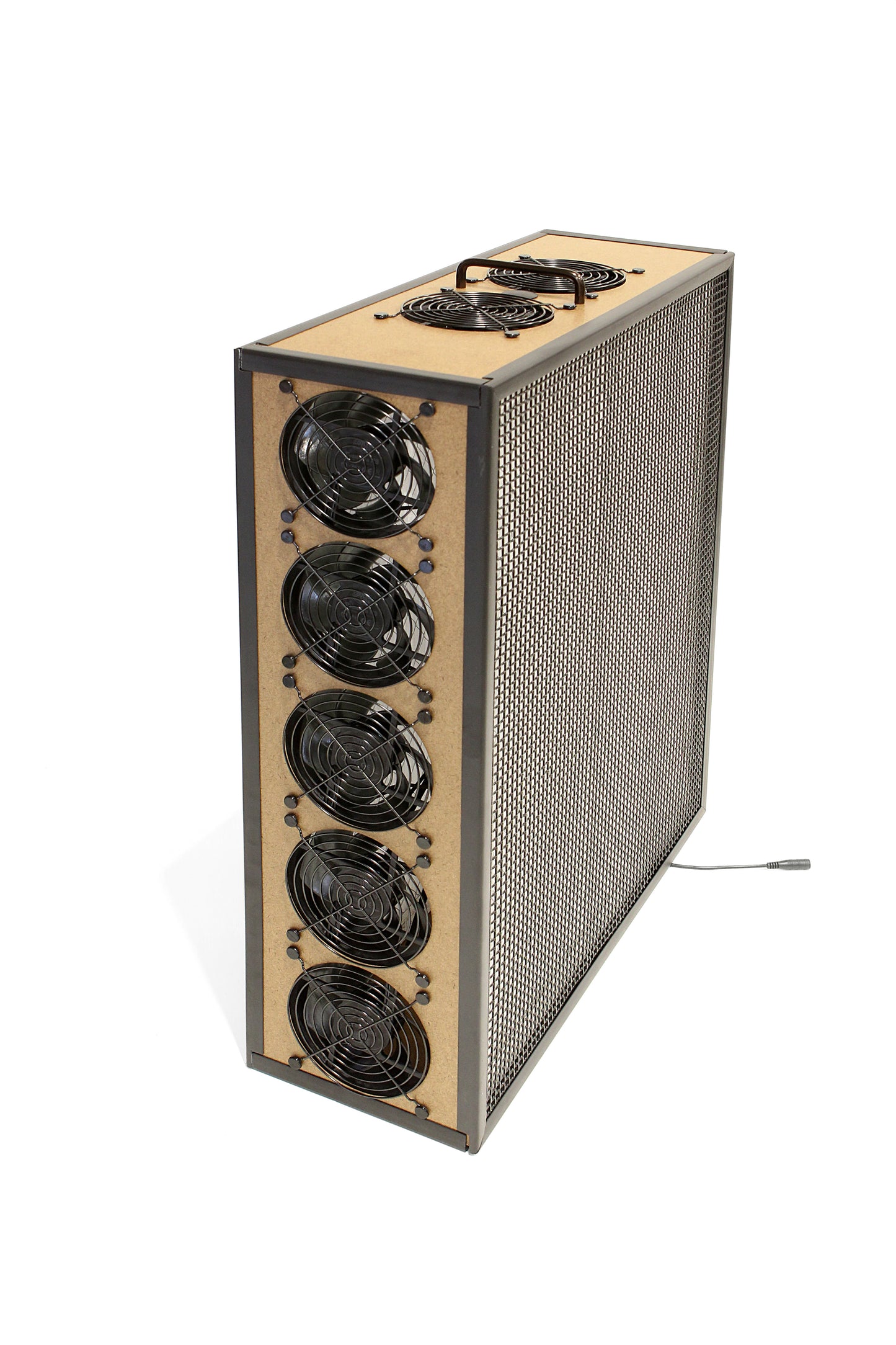

Luggables are our lightweight, portable, and cost-effective CR Boxes for medium-large rooms. The 20x26x7" Luggable XL boasts 7 premium SickleFlow fans, a great fit for medium-large rooms like open kitchen/family, classrooms, cafeterias, gyms, etc. It's well-oriented: the main 5-fan bank can blow up or sideways, with one side against a wall. Finally, it really is luggable -- weighing only 8 lbs! Luggable XL comes with a side suitcase handle installed.

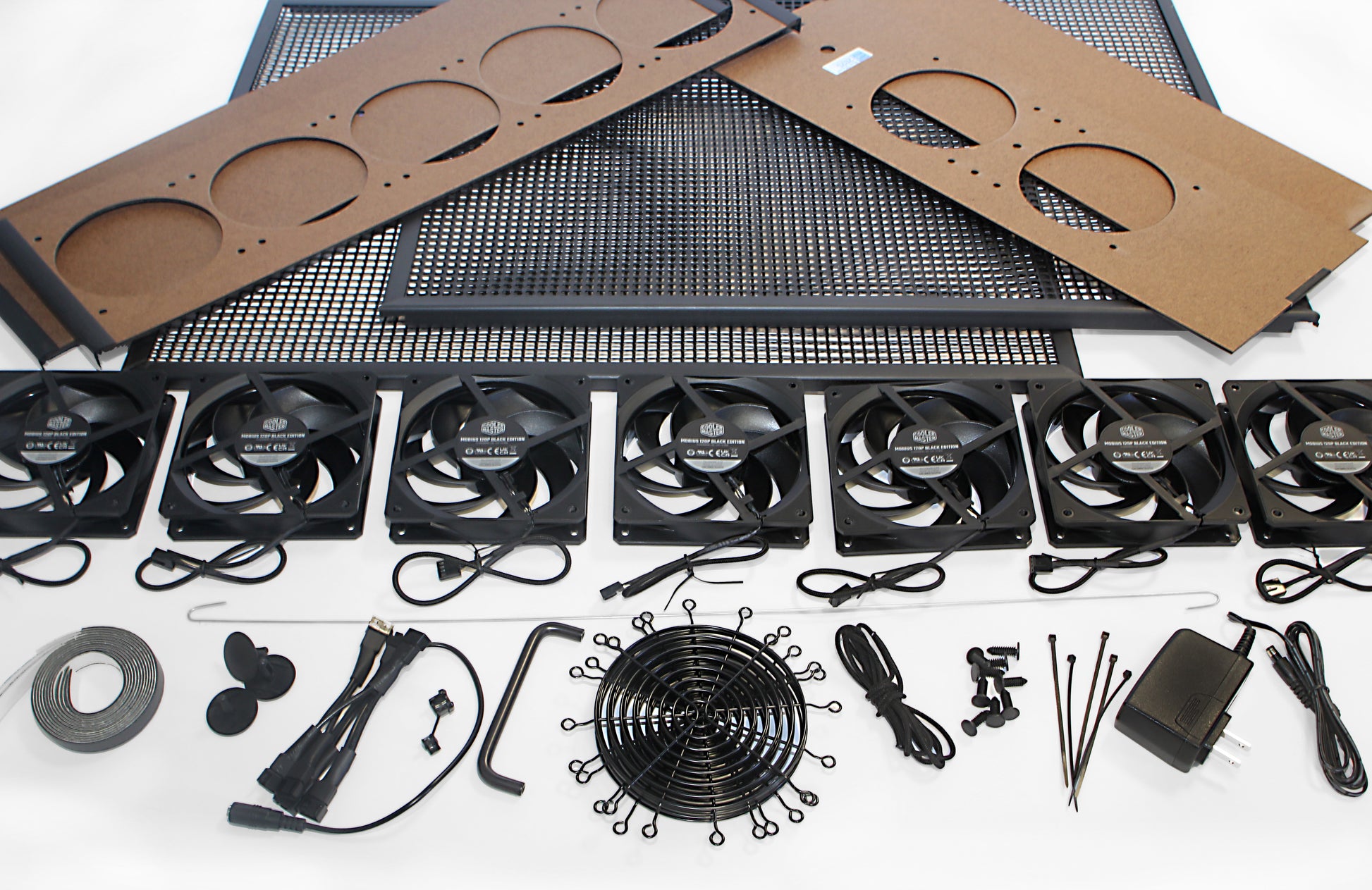

The optional hex mesh filter guard protects from prying little hands and claws.
Unassembled Kit has 30 minute assembly time.
Considering shipping prices, unassembled STEM Kit w/o filters save ~$50 when 3M Filtrete MPR1900/MPR2200 20x25 are purchased separately from Costco, Lowes, or Amazon. Outside the US, try Digi-Key
While working toward UL507 certification to satisfy CARB air cleaner regulations, only unassembled kits without filters will ship to California.
Luggable XL hardboard panels do not contain lead, Formaldehyde, or PFAS. However, like cooking, lasercutting can generate trace carcinogens hence:
⚠️WARNING: This product may contain chemicals known to the State of California to cause cancer. www.P65Warnings.ca.gov for more information
Luggables are our lightweight, portable, and cost-effective CR Boxes for medium-large rooms. The 20x26x7" Luggable XL boasts 7 premium SickleFlow fans, a great fit for medium-large rooms like open kitchen/family, classrooms, cafeterias, gyms, etc. It's well-oriented: the main 5-fan bank can blow up or sideways, with one side against a wall. Finally, it really is luggable -- weighing only 8 lbs! Luggable XL comes with a side suitcase handle installed.
The optional hex mesh filter guard protects from prying little hands and claws.
Unassembled Kit has 30 minute assembly time.
Considering shipping prices, unassembled STEM Kit w/o filters save ~$50 when 3M Filtrete MPR1900/MPR2200 20x25 are purchased separately from Costco, Lowes, or Amazon. Outside the US, try Digi-Key
While working toward UL507 certification to satisfy CARB air cleaner regulations, only unassembled kits without filters will ship to California.
Luggable XL hardboard panels do not contain lead, Formaldehyde, or PFAS. However, like cooking, lasercutting can generate trace carcinogens hence:
⚠️WARNING: This product may contain chemicals known to the State of California to cause cancer. www.P65Warnings.ca.gov for more information

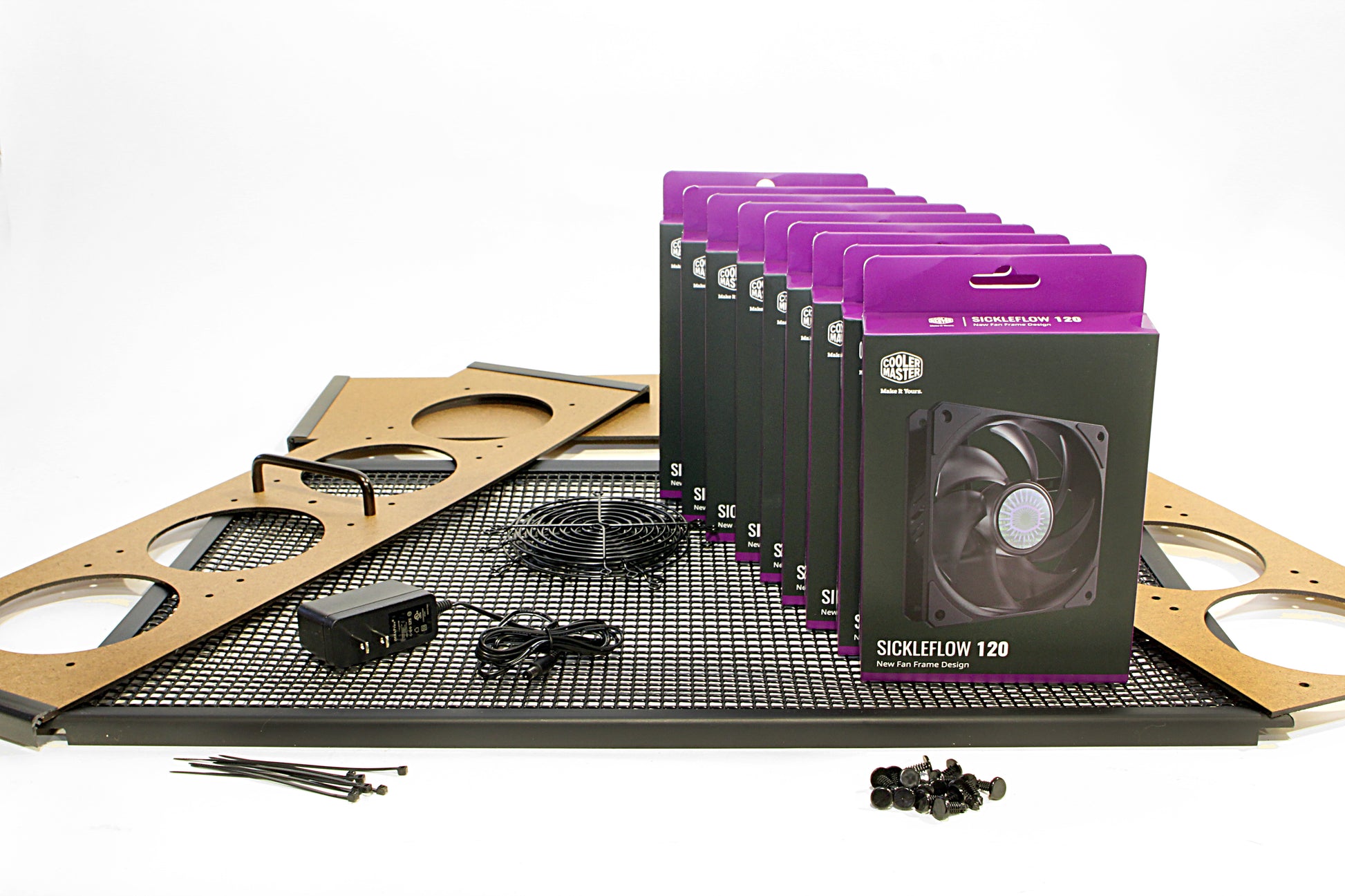

Luggables are our lightweight, portable, and cost-effective CR Boxes for medium-large rooms. The 25x25x7" Luggable XXL boasts 9 premium SickleFlow fans, a great fit for medium-large rooms like open kitchen/family, classrooms, cafeterias, gyms, etc. It's well-oriented: the main 5-fan bank can blows up and the 4-fan bank sideways, with one side against a wall. Finally, it really is luggable -- weighing only 10 lbs! Luggable XXL comes with a side handle installed.
The optional hex mesh filter guard protects from prying little hands and claws.
Unassembled Kit has 30 minute assembly time.
Considering shipping prices, unassembled STEM Kit w/o filters save ~$50 when 3M Filtrete MPR1900/MPR2200 25x25 are purchased separately from Lowes. Outside the US, try Digi-Key
While working toward UL507 certification to satisfy CARB air cleaner regulations, only unassembled kits without filters will ship to California.
Luggable XXL hardboard panels do not contain lead, Formaldehyde, or PFAS. However, like cooking, lasercutting can generate trace carcinogens hence:
⚠️WARNING: This product may contain chemicals known to the State of California to cause cancer. www.P65Warnings.ca.gov for more information
Luggables are our lightweight, portable, and cost-effective CR Boxes for medium-large rooms. The 25x25x7" Luggable XXL boasts 9 premium SickleFlow fans, a great fit for medium-large rooms like open kitchen/family, classrooms, cafeterias, gyms, etc. It's well-oriented: the main 5-fan bank blows upward and the 4-fan bank sideways, with one side against a wall. Finally, it really is luggable -- weighing only 8 lbs! Luggable XL comes with a side suitcase handle installed.
The optional hex mesh filter guard protects from prying little hands and claws.
Unassembled Kit has 30 minute assembly time.
Considering shipping prices, unassembled STEM Kit w/o filters save ~$50 when 3M Filtrete MPR1900/MPR2200 25x25 are purchased separately from Lowes. Outside the US, try Digi-Key
While working toward UL507 certification to satisfy CARB air cleaner regulations, only unassembled kits without filters will ship to California.
Luggable XXL hardboard panels do not contain lead, Formaldehyde, or PFAS. However, like cooking, lasercutting can generate trace carcinogens hence:
⚠️WARNING: This product may contain chemicals known to the State of California to cause cancer. www.P65Warnings.ca.gov for more information
Luggables are our lightweight, portable, and cost-effective CR Boxes covering rooms from small to large. This 16x25x7" 5-Arctic Luggable fits small-medium bedrooms, offices and dining rooms. It's well-oriented: the 5-fan bank can blow up or sideways, with one side against a wall. Finally, it really is luggable -- weighing only 6 lbs! Comes with a side suitcase handle installed.
The Arctic P12 fans are a tad quieter than SickleFlow, so ideal for sleeping in bedrooms. Five Arctic P12 can clean standard 130 sq ft bedrooms in 6 minutes (10ACH).
Hex mesh filter guards are available as accessory to protect from prying little hands and claws.
Unassembled Kit has 20-30 minute assembly time. See STEM Kits page for guides & videos.
Considering shipping prices, unassembled STEM Kit w/o filters can save ~$50 when 3M Filtrete MPR1900/MPR2200 16x25 are purchased separately from Costco, Lowes, Amazon. Outside the US, try Digi-Key.
While working toward UL507 certification to satisfy CARB air cleaner regulations, only unassembled kits without filters will ship to California.
Luggable hardboard panels do not contain lead, Formaldehyde, or PFAS. However, like cooking, lasercutting can generate trace carcinogens hence:
⚠️WARNING: This product may contain chemicals known to the State of California to cause cancer. www.P65Warnings.ca.gov for more information
Variant:
5-fan Arctic / SickleFlow
XL - 7 SickleFlow
XXL - 9 SickleFlow
Filters:
2 Filtrete 16x25" MPR1900+
2 Filtrete 20x25" MPR1900+
2 Filtrete 25x25" MPR1900+
CADR by Intertek:
189 cfm (Arctic), 211 cfm (SickleFlow)
323 cfm (550 m3/hr)
415 cfm (716 m3/hr)
Room Occupants (40cfm per):
5
8
10
5 ACH Coverage:
300 sq ft
485 sq ft
622 sq ft
Power:
8 W
10.8 W
13 W
Sound Power / Pressure:
41.7 / 33.7 dBA (Arctic), 34.8 (SickleFlow)
45.3 / 37.3 dBA
46 / 38 dBA
Dimensions:
16x25x7"
20x25x7"
25x25x7"
Weight:
6 lbs
8 lbs
10 lbs
-
Variant5-fan Arctic / SickleFlow
-
Filters2 Filtrete 16x25" MPR1900+
-
CADR by Intertek189 cfm (Arctic), 211 cfm (SickleFlow)
-
Room Occupants (40cfm per)5
-
5 ACH Coverage300 sq ft
-
Power8 W
-
Sound Power / Pressure41.7 / 33.7 dBA (Arctic), 34.8 (SickleFlow)
-
Dimensions16x25x7"
-
Weight6 lbs
-
VariantXL - 7 SickleFlow
-
Filters2 Filtrete 20x25" MPR1900+
-
CADR by Intertek323 cfm (550 m3/hr)
-
Room Occupants (40cfm per)8
-
5 ACH Coverage485 sq ft
-
Power10.8 W
-
Sound Power / Pressure45.3 / 37.3 dBA
-
Dimensions20x25x7"
-
Weight8 lbs
-
VariantXXL - 9 SickleFlow
-
Filters2 Filtrete 25x25" MPR1900+
-
CADR by Intertek415 cfm (716 m3/hr)
-
Room Occupants (40cfm per)10
-
5 ACH Coverage622 sq ft
-
Power13 W
-
Sound Power / Pressure46 / 38 dBA
-
Dimensions25x25x7"
-
Weight10 lbs
Common

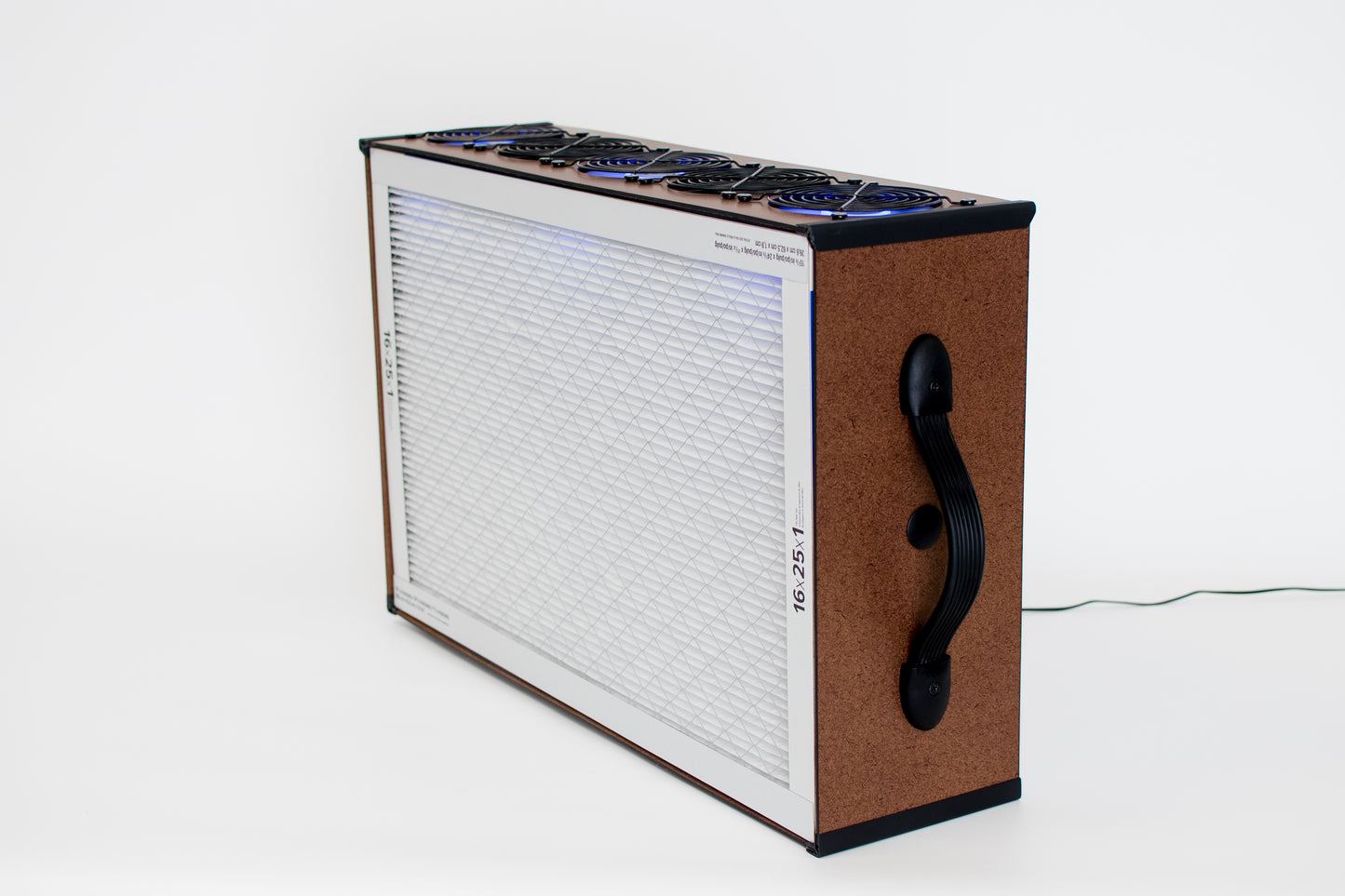

- Integrated Suitcase Handle

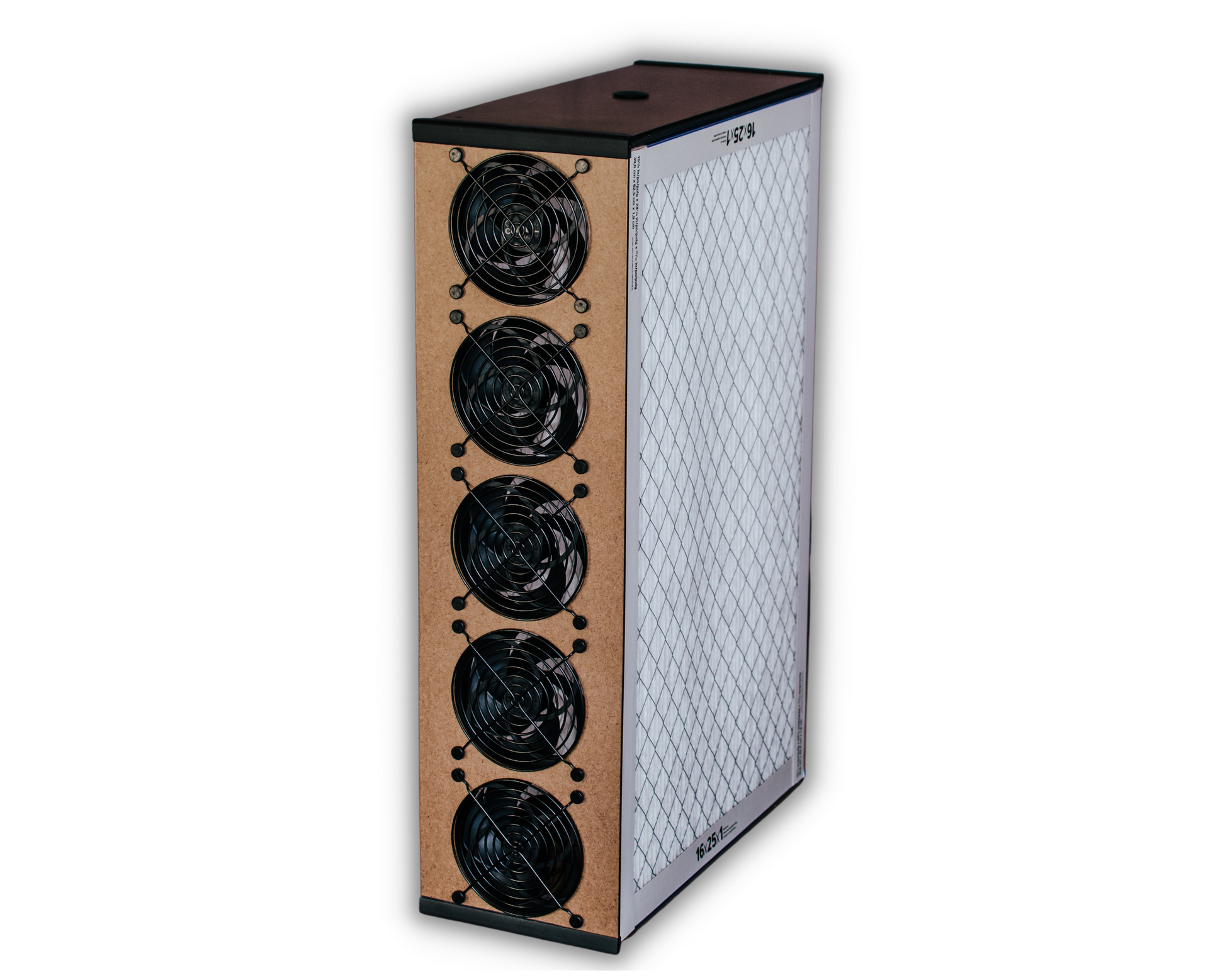

- Stands tall or wide against a wall
- Lightweight: 6-10 lbs
- Internal pre-tensioner cords for easy slide-out filter changes and snug fit.
- UL-listed 120V AC to 12V 2A DC wall plug w/ 5.5x2.1mm barrel socket
Unintuitively Quiet
It's dead simple. CleanAirKits deliver top-end portable HEPA performance and they're QUIET. At that performance level, HEPA are not quiet -- people turn them down or turn them off. And we need them to be on and high-performing to passively remove covid and pollutants.The exceptionally large, unencumbered filtration area provided by dual micro pleated 3M Filtretes, and our diffuse banks of silent pressure fans make this possible. Delivering 200-500 cubic feet per minute of clean air means the boxes filter 1000-2000 faster than an adult human breathes!
Industry Leading Efficiencies
Always On Safety
Since a Clean Air Kit is not loud and power hungry like a HEPA, it can always be running. And if it's always running, it's always adding a layer of protection for you and your family from smoke & airborne transmission of viruses like Flu, RSV, and Covid.
This corresponds to the pandemic HVAC best practice of continuously running furnace fan circulation with MERV13 or MERV14 filtration.
Contagion Risk falls with faster air cleaning
March 2022: Study of 10,441 Italian Classrooms with
varying mechanical ventilation up to 6 ACH.
-
Quiet on FullClean Air Kits produce 5-10x less noise than HEPA purifiers at max capacity.
-
One Speed DesignSpeed controls defeat the efficacy of most HEPAs -- people turn them down to quiet where air cleaning slows. We have just one speed: silent full blast!
-
Unprecedented Energy EfficiencyDecades of competition has driven amazing silence + efficiency in PC fans. Our fan banks use 6-16W -- comparable to a LED bulb and easy to run off batteries!
