Large PC fan CR Boxes can save a couple hundred dollars per year in electricity and filter replacement cost compared to equivalent large HEPAs
-
660 sq ft 11 people
Brisk Box Ultra Black
Brisk Box Ultra Black
Couldn't load pickup availability
Brisk Box Ultra Black

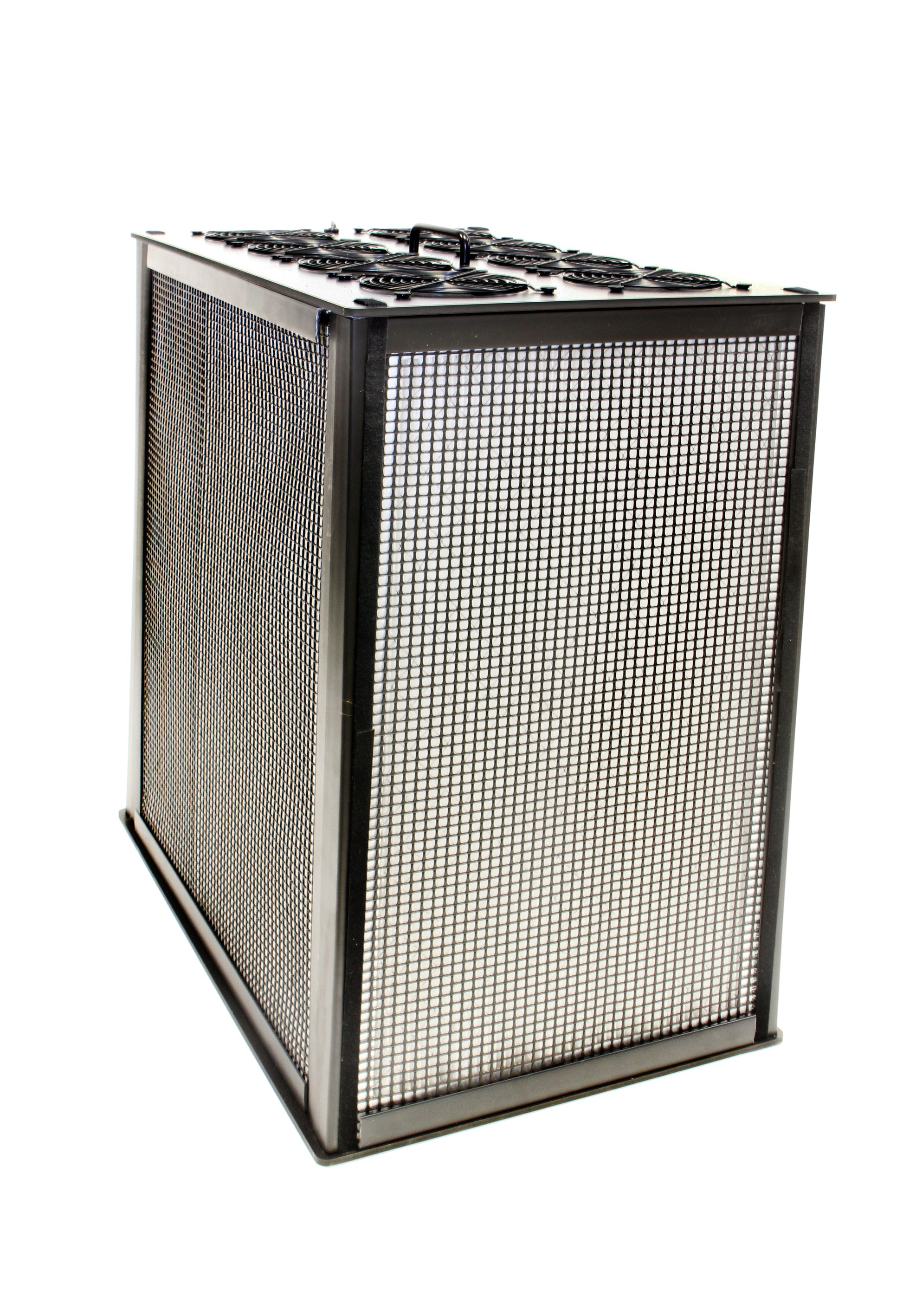

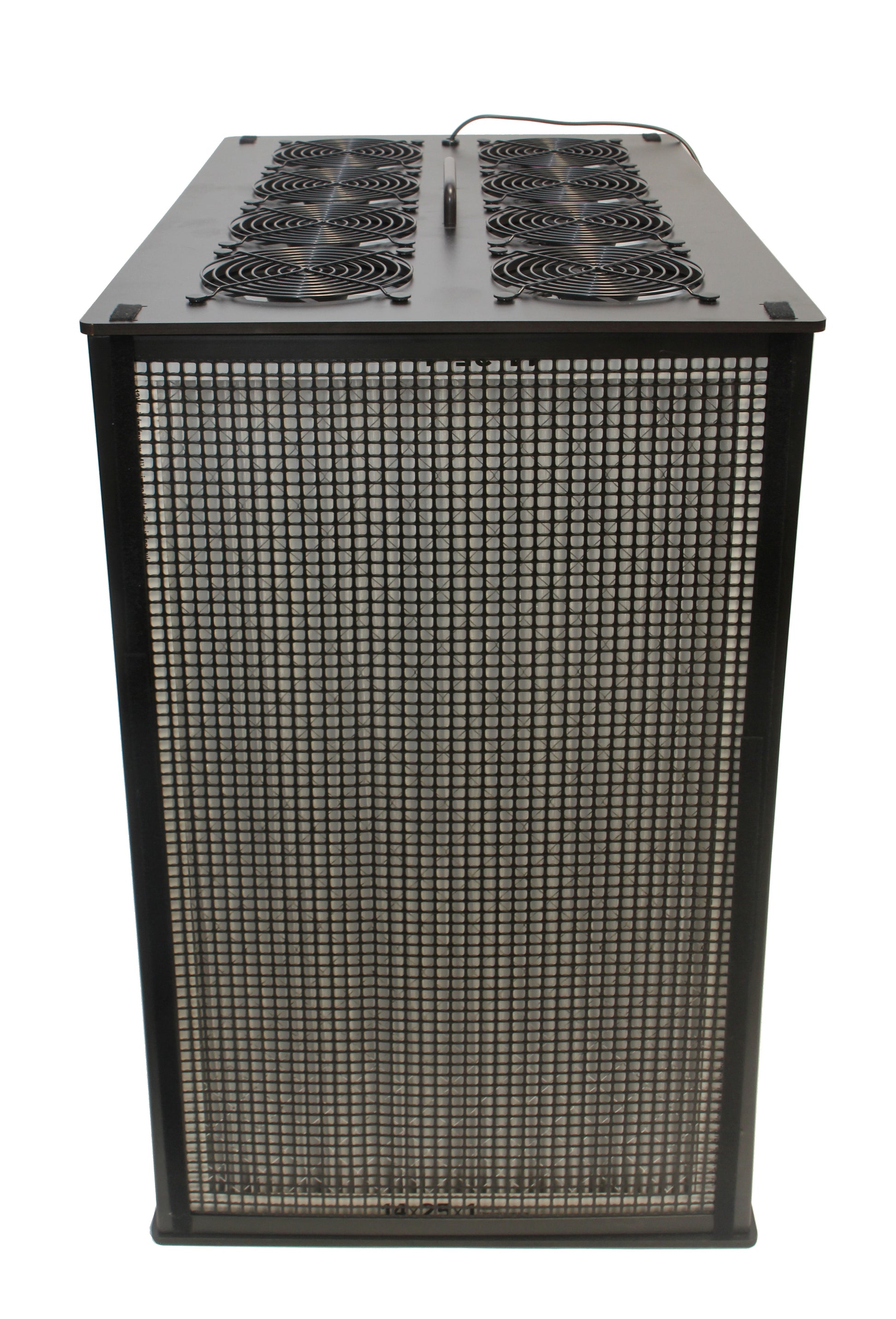

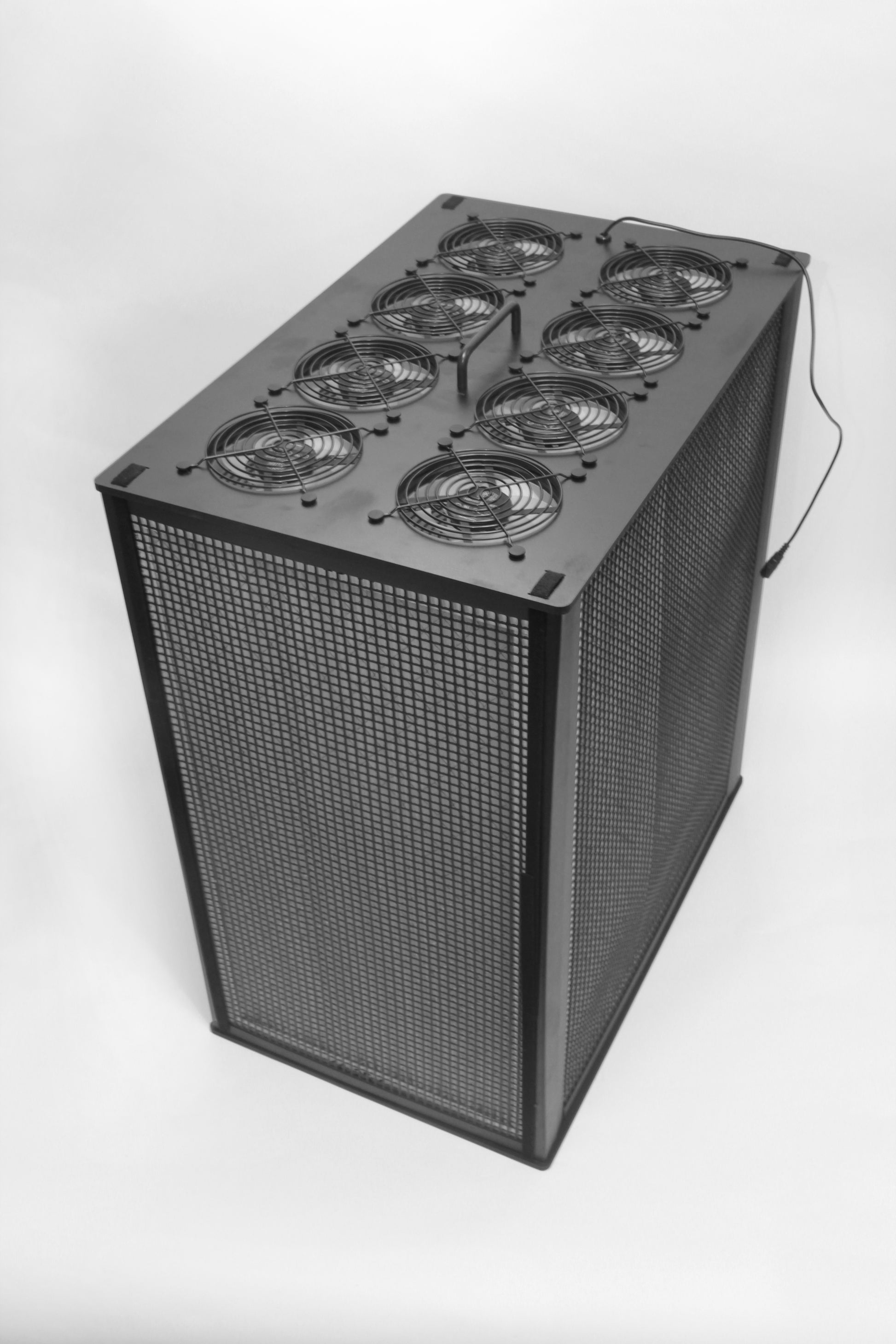

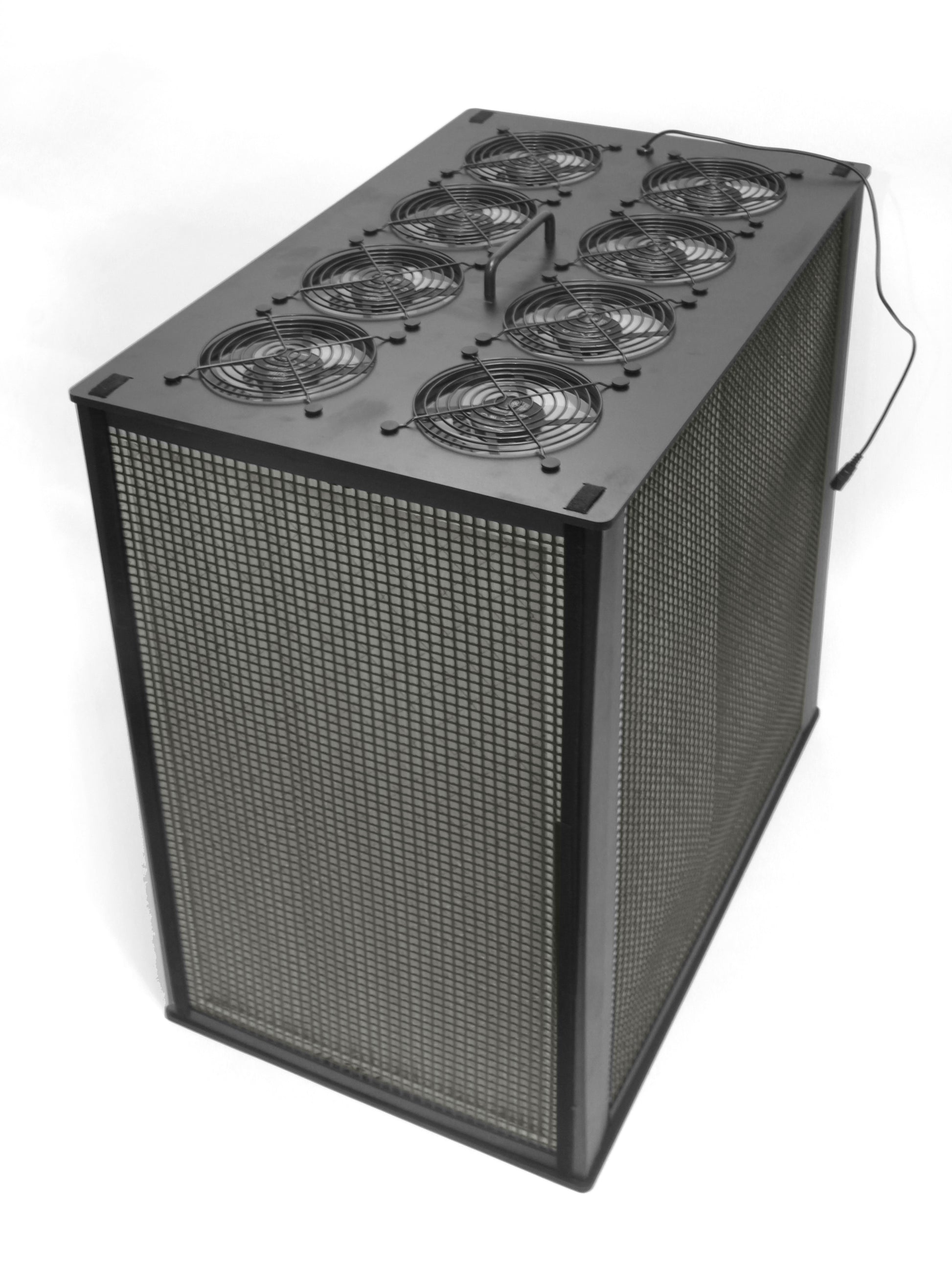

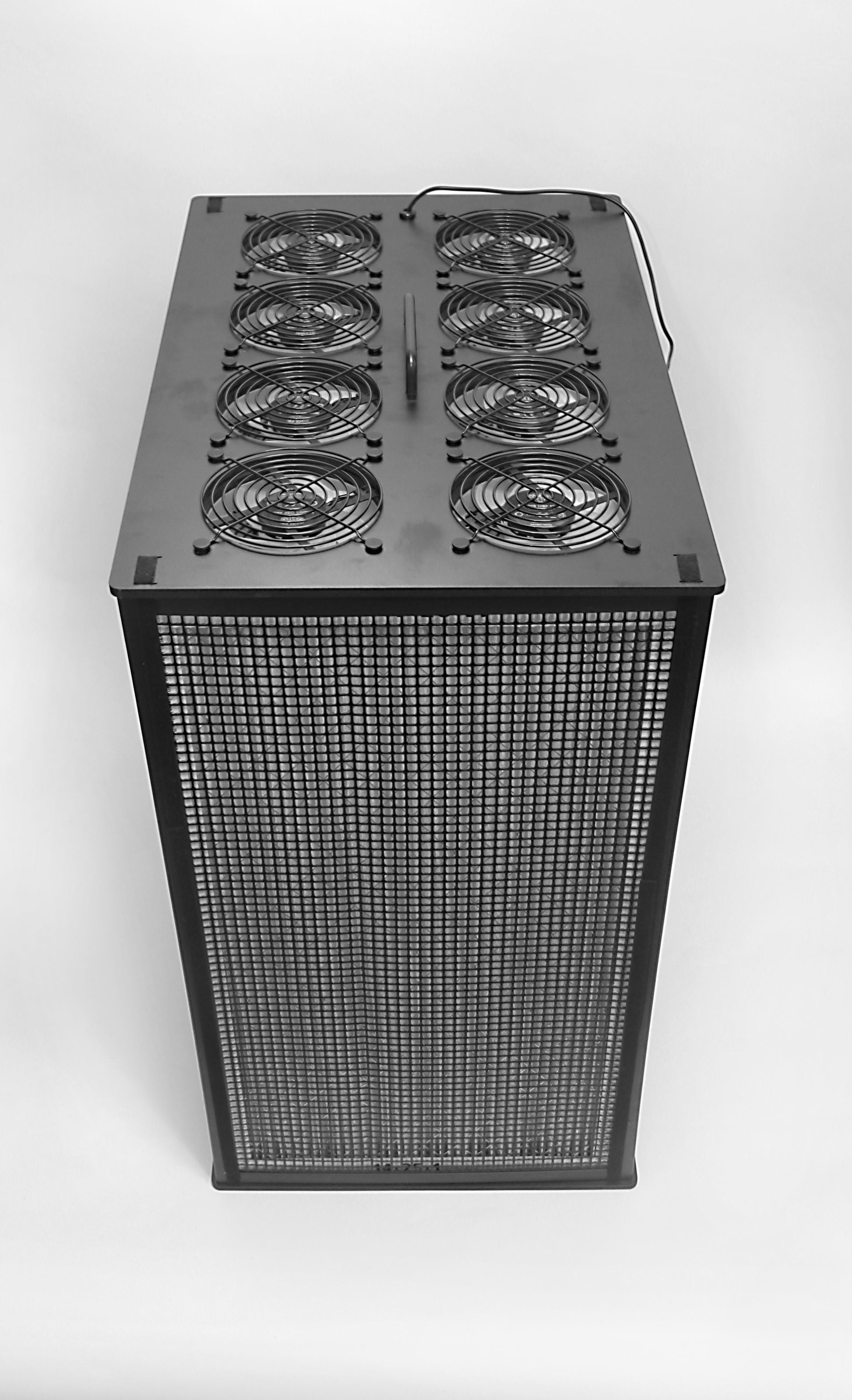

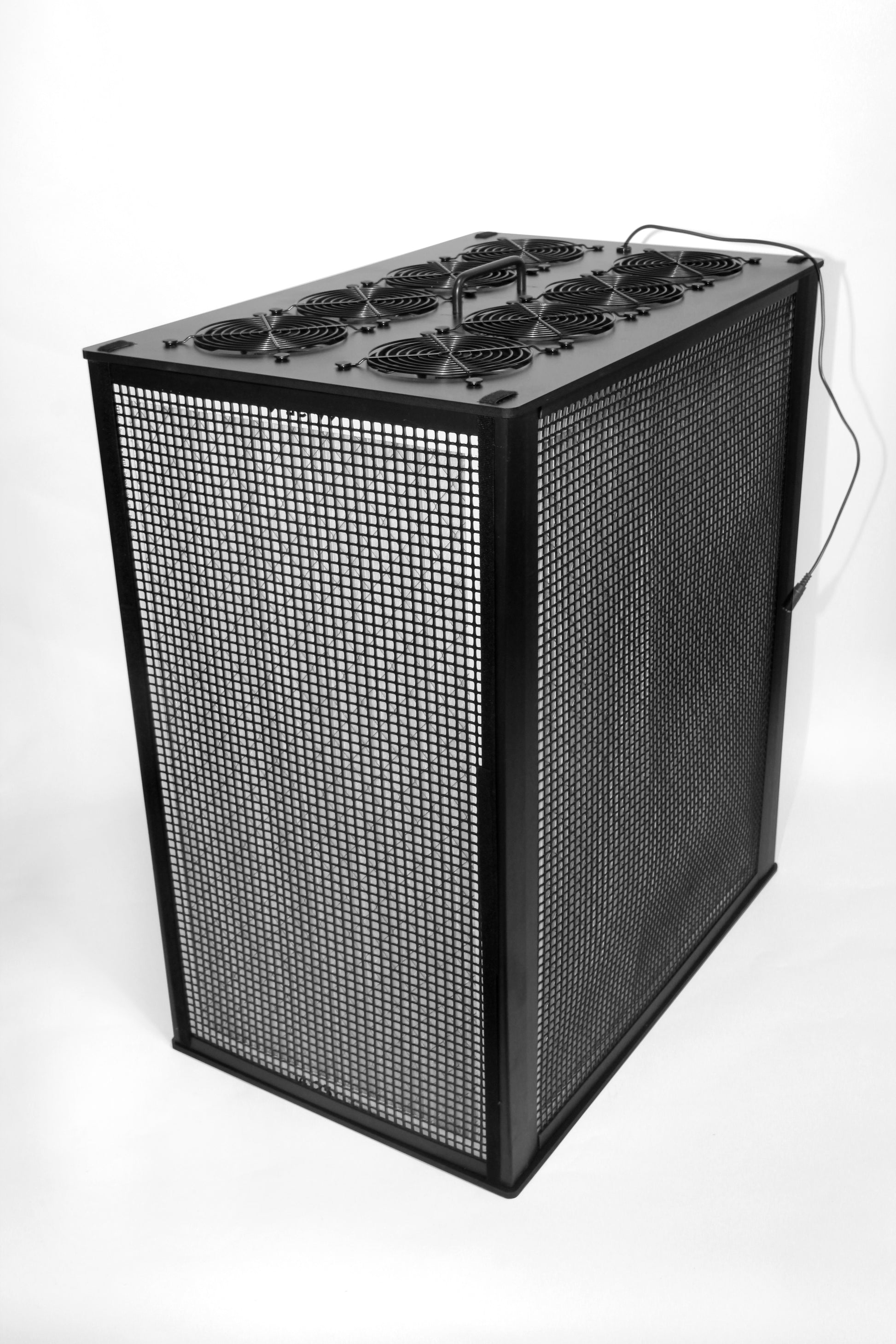

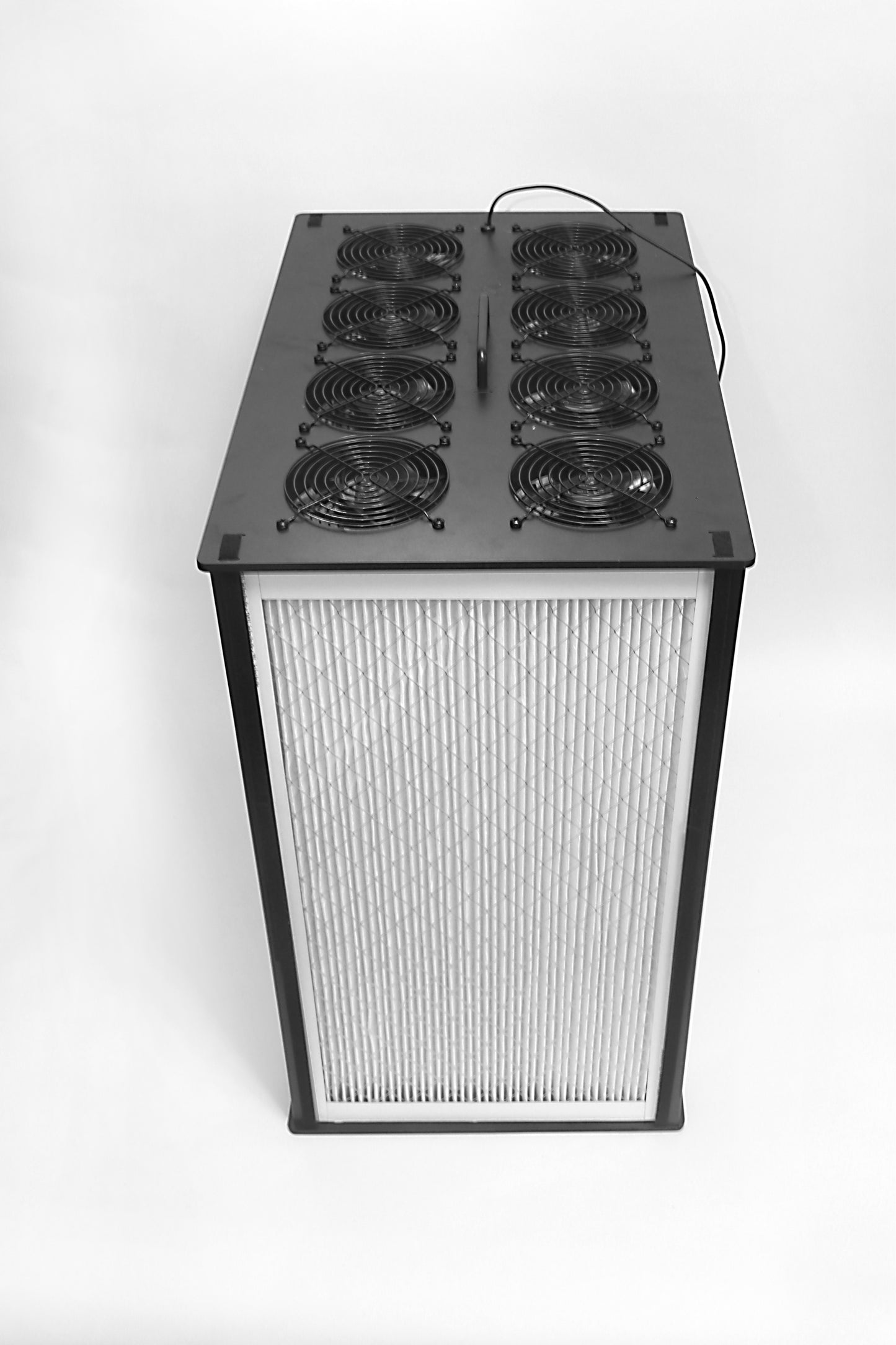

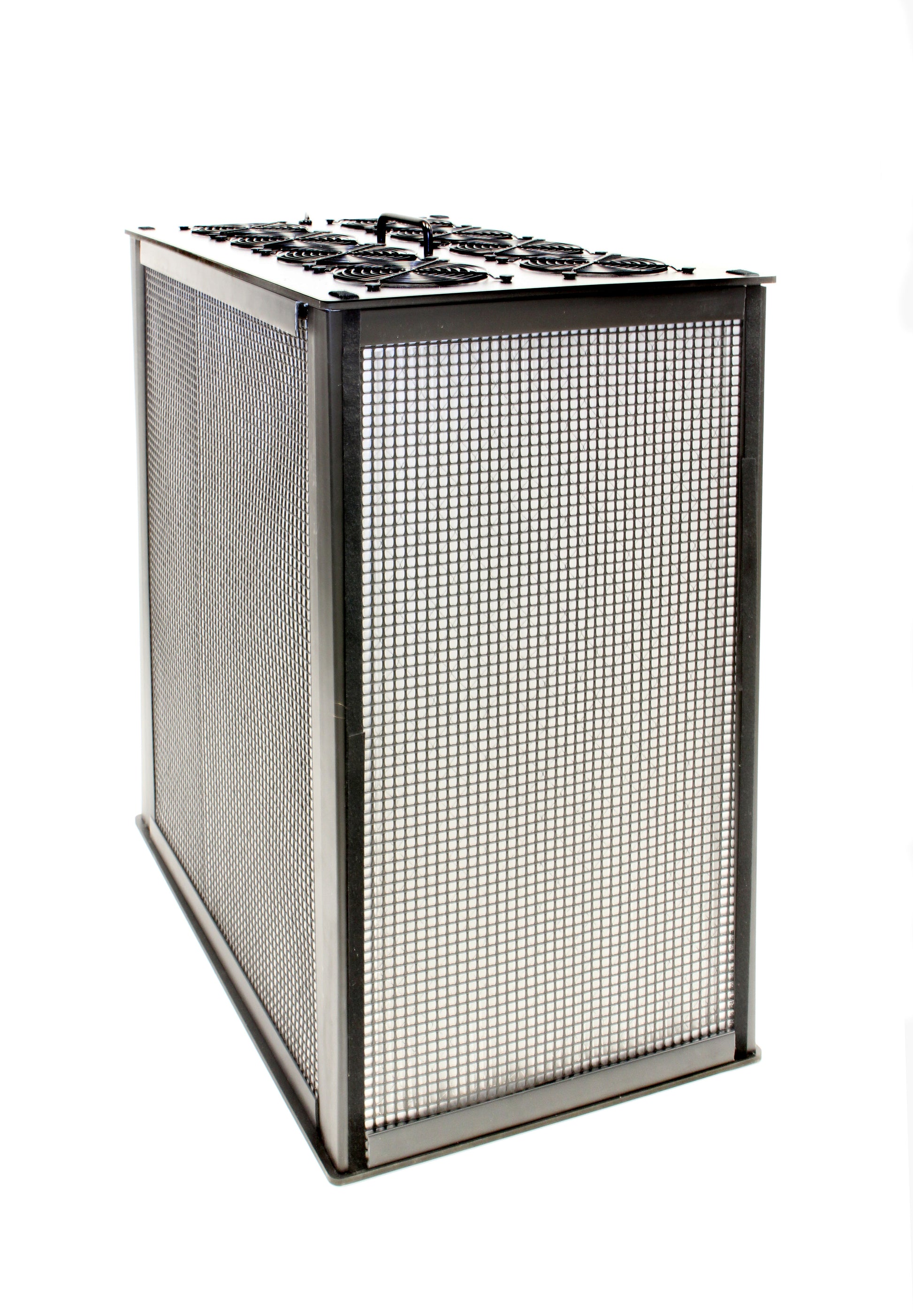

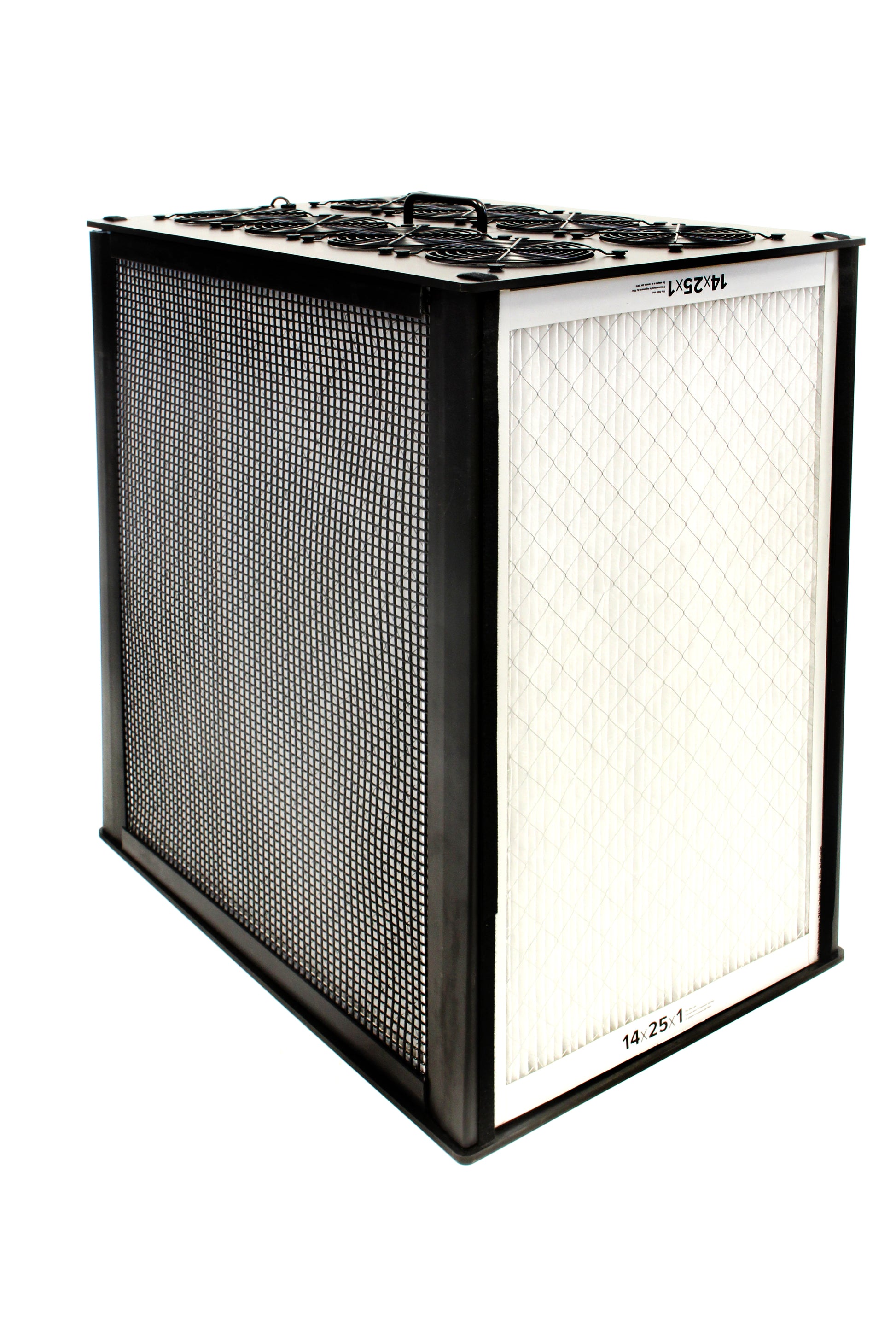

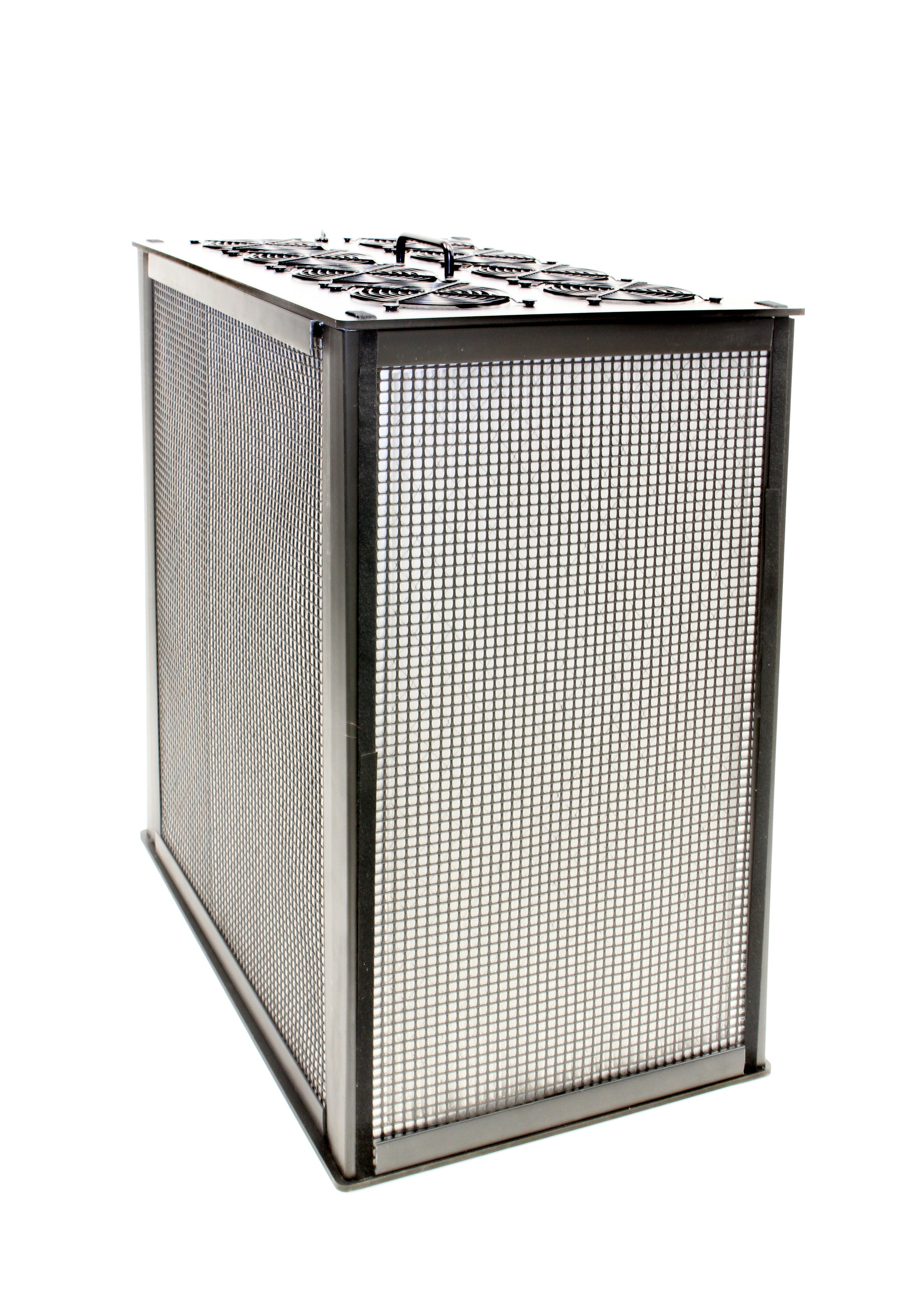

Brisk Box Ultra Black is our most powerful and sturdy PC fan Corsi-Rosenthal box, easily rivaling the output of the original box fan CR boxes but adding UL certification, filter guard corner extrusions and meshes, easy breakdown into a flat pack, and a more space-efficient rectangular footprint.

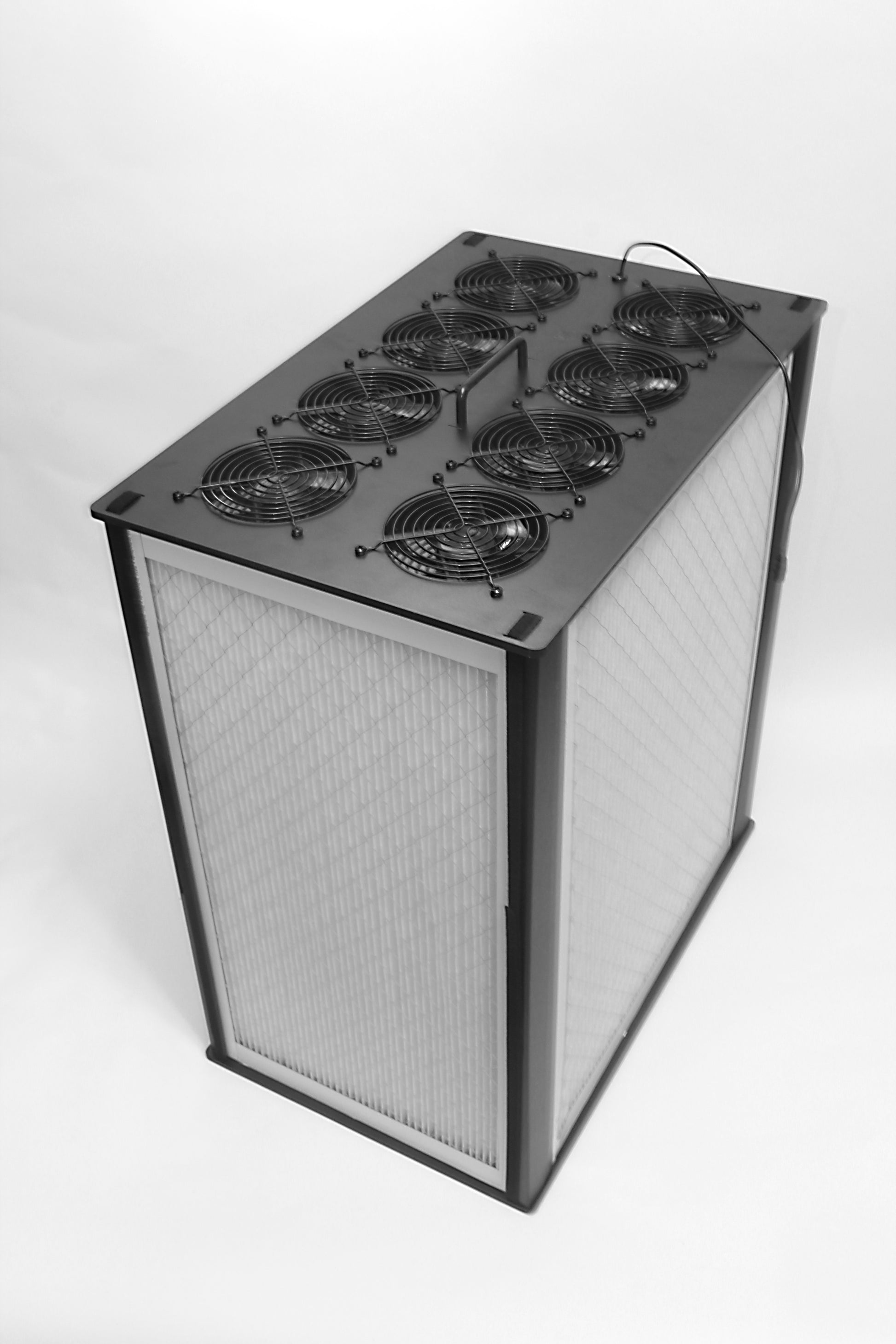

The 8 premium CoolerMaster Mobius Black Edition 2400rpm PC fans with a set of Filtrete MPR1900 MERV13 filters achieve 441 cfm DUST/Virus CADR, 404 cfm PM2.5 CADR, and > 450 cfm Pollen CADR with amazing 25.1 cfm/Watt efficiency factor at only 48 dB. That's more than double the energy efficiency of comparably large HEPA room purifiers in the Energy Star database!
The UL-certified version comes with the fan-plate pre-assembled.
Two 25x20" plus two 25x14" Filtrete MERV12-14 to match this 8-fan kit are sold separately. Choose one of these great deals:
-
25x20x1" MPR1900 and 25x14x1" MPR1900 at Lowes
- Filtrete MPR25000 4-packs at Costco
- Filtrete MPR1600 4-packs at Sam's Club

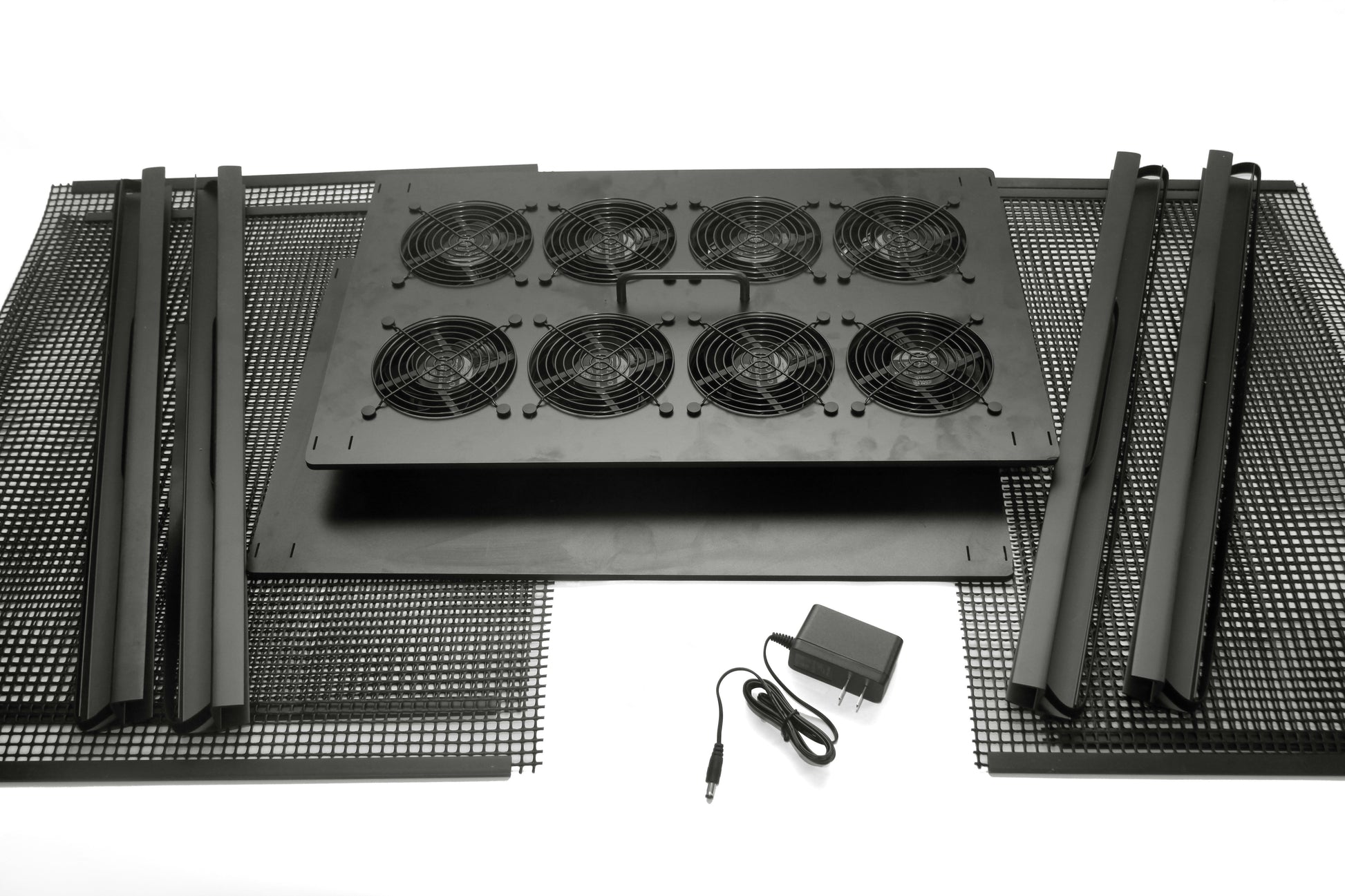

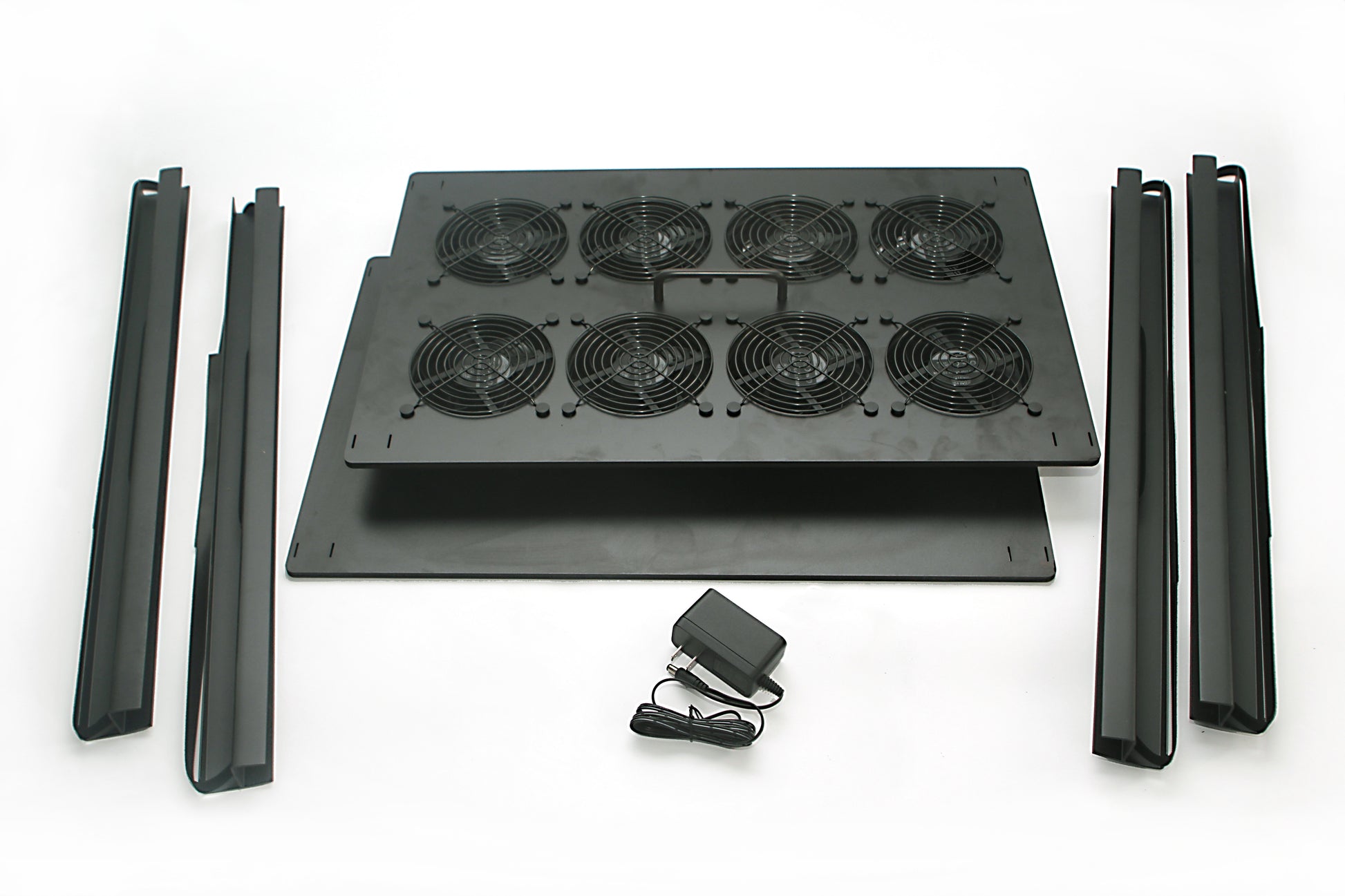

Brisk Box Ultra Black panels are laser cut from strong 1/4" black melamine. Corner extrusions with velcro attach allow easy no-tape assembly in about 10 minutes.
Brisk Box Ultra Black includes a 120v AC to 12V 2A DC barrel 5.5x2.1mm UL-listed wall plug.
-
Assembled Size26x21x15"
-
Fans8 CoolerMaster Mobius Black 2400rpm - UL registered
-
3M Filtretetwo 25x20x1" + two 25x14x1" MPR1500-2500 (sold separately)
-
Occupants @40cfm/person11
-
5ACH Coverage660 sq ft
-
Pollen CADR> 450 cfm
-
Dust CADR441 cfm
-
Smoke CADR370 cfm
-
Power Usage16W
-
PM2.5 Efficiency Factor25.2 cfm/Watt
-
Sound Pressure48dB
- 120VAC to 12V 2A DC Barrel US wall adapter: UL-Registered
Unintuitively Quiet
It's dead simple. CleanAirKits deliver top-end portable HEPA performance and they're QUIET. At that performance level, HEPA are not quiet -- people turn them down or turn them off. And we need them to be on and high-performing to passively remove covid and pollutants.The exceptionally large, unencumbered filtration area provided by dual micro pleated 3M Filtretes, and our diffuse banks of silent pressure fans make this possible. Delivering 200-500 cubic feet per minute of clean air means the boxes filter 1000-2000 faster than an adult human breathes!
Always On Safety
Since a Clean Air Kit is not loud and power hungry like a HEPA, it can always be running. And if it's always running, it's always adding a layer of protection for you and your family from smoke & airborne transmission of viruses like Flu, RSV, and Covid.
This corresponds to the pandemic HVAC best practice of continuously running furnace fan circulation with MERV13 or MERV14 filtration.
March 2022: Study of 10,441 Italian Classrooms with
varying mechanical ventilation up to 6 ACH.
-
Quiet on FullClean Air Kits produce 5-10x less noise than HEPA purifiers at max capacity.
-
One Speed DesignSpeed controls defeat the efficacy of most HEPAs -- people turn them down to quiet where air cleaning slows. We have just one speed: silent full blast!
-
Unprecedented Energy EfficiencyDecades of competition has driven amazing silence + efficiency in PC fans. Our fan banks use 6-16W -- comparable to a LED bulb and easy to run off batteries!
Products are returnable within 30 days for a full refund less $44 filter hygiene cost and shipping. Exchanges to other models with same filter sizes are free except for shipping, otherwise $44 for new filters.
All products ship from Missouri via UPS according to an average rate per product (until backend supports live rates accurately). Due to high demand and customizations products may take up to two weeks to ship.
-
"Standalone HEPAs or Corsi-Rosenthal boxes are a quick way to lower the risk of inhaling SARS-CoV-2 virus. Filtering the virus out of the air reduces the chance of inhaling it---simple logic. The other option is to filter/trap it with a mask before it is released or inhaled."
Kim Prather, PhD
Distinguished Professor, UCSD
Director NSF Center for Aerosol Impacts
on Chemistry of the Environment -
3M tested the Corsi-Rosenthal Box with the same rigor it applies to its Filtrete brand of products and found the C-R Box “performs exceptionally well in its ability to capture unwanted airborne particles, including viruses," says Kelsey Hei, a 3M application engineer.
Fortune: A DIY air purifier that costs
under $100 to make is taking Americas
classrooms by storm -
“A C-R box uses MERV-13 filters, which can only remove 60% to 80% of those particles, (but) the fan on the C-R box is much bigger and can clean more air,” says Joseph Fox, chair of the indoor air quality advisory group with the Ontario Society of Professional Engineers, who works with schools on HVAC issues. “All you care about in the end is the total rate at which the air is cleaned. So, what the C-R box lacks in efficiency, it makes up for in airflow.”
Fortune: A DIY air purifier that costs
under $100 to make is taking Americas
classrooms by storm -
Many exciting innovations have emerged in the last two years alone. Once it is clearly acknowledged the virus is airborne, it becomes a very fixable problem. People will shift from cleaning surfaces to cleaning indoor air where we spend 90% of our time. This has huge positive health ramifications beyond COVID-19 by reducing the spread of all airborne pathogens, pollutants including wildfire smoke, and other asthma-inducing aerosols.
Kim Prather, PhD
Distinguished Professor, UCSD
Director NSF Center for Aerosol Impacts
on Chemistry of the Environment -
To lower inhalation dose of virus-laden respiratory aerosol particles (a major key to suppressing the mortaility and mobidity associated with COVID-19) the three Rs must be advanced from where they are now. Remove, Reduce, Remediate.
Richard Corsi, PhD PE (Texas)
Dean of Engineering, UC Davis -
Appropriate combos of Remove, Reduce, & Remediate are what many of us called layered risk reduction (or layered inhalation dose reduction) back in Spring 2020. Not rocket science. For those who still care about reducing the spread of COVID-19, it all still applies, folks.
Richard Corsi, PhD PE (Texas)
Dean of Engineering, UC Davis -
"I am thrilled to be part of something that is so accessible to people around the world, helping to protect children in school and families in their homes, all the while inspiring children about the power of STEM."
Richard Corsi, PhD PE (Texas)
Dean of Engineering, UC Davis
