Large PC fan CR Boxes can save a couple hundred dollars per year in electricity and filter replacement cost compared to equivalent large HEPAs
-
602 sq ft 10 people
Purifying Table (7-Fan)
Purifying Table (7-Fan)
Couldn't load pickup availability
Purifying Table (7-Fan)
Assembly & Support Videos
Tower of Power - Assembly
Step-by-step assembly guide for the Tower of Power.
Assembly • 10:18
Luggable XL Ultra is the quietest, lightest, most compact and cost-effective way to protect 10 people to 40cfm/per level in medium-large rooms like classrooms and open kitchen/family rooms.
For the XL Ultra, Coolermaster provided us a special Black Edition of their industry-leading Mobius 120P 2400rpm fan. Seven of these Mobius 120P are thus able to replace and outperform the 9 SickleFlow of our former XXL 25x25" model with same noise level! Plus the Mobius loop-dynamic bearing is rated at 210,000 hours or 22 years MTTF (mean-time-to-failure) vs 18 years MTTF for the SickleFlow.
Intertek tested our XL Ultra to achieve an unprecedented 24 Smoke CADR per Watt, more than double the energy efficiency of all large HEPA purifiers in the EnergyStar database!
XL Ultra is well-oriented: the main 5-fan bank can blows up and the 2-fan bank sideways, with one side against a wall. Finally, it really is luggable -- weighing only 8 lbs! Luggable XL Ultra comes with a side handle installed.
The optional hex mesh filter guard protects from prying little hands and claws. They also strengthen the box considerably. We recommend them if the box will be moved around a lot or placed in high traffic areas like classrooms or restaurants.
Variable speed control can be had with a 3-12V DC 3A power supply like this, sold separately.
Unassembled Kit has 30 minute assembly time and assembles the same as factory procedure.
Considering shipping prices, unassembled STEM Kit w/o filters save ~$40 when 3M Filtrete MPR1900/MPR2200 20x25 are purchased separately from Lowes. Outside the US, try Digi-Key
Luggable XL Ultra hardboard panels do not contain lead, Formaldehyde, or PFAS. However, like cooking, lasercutting can generate trace carcinogens hence:
⚠️WARNING: This product may contain chemicals known to the State of California to cause cancer. www.P65Warnings.ca.gov for more information

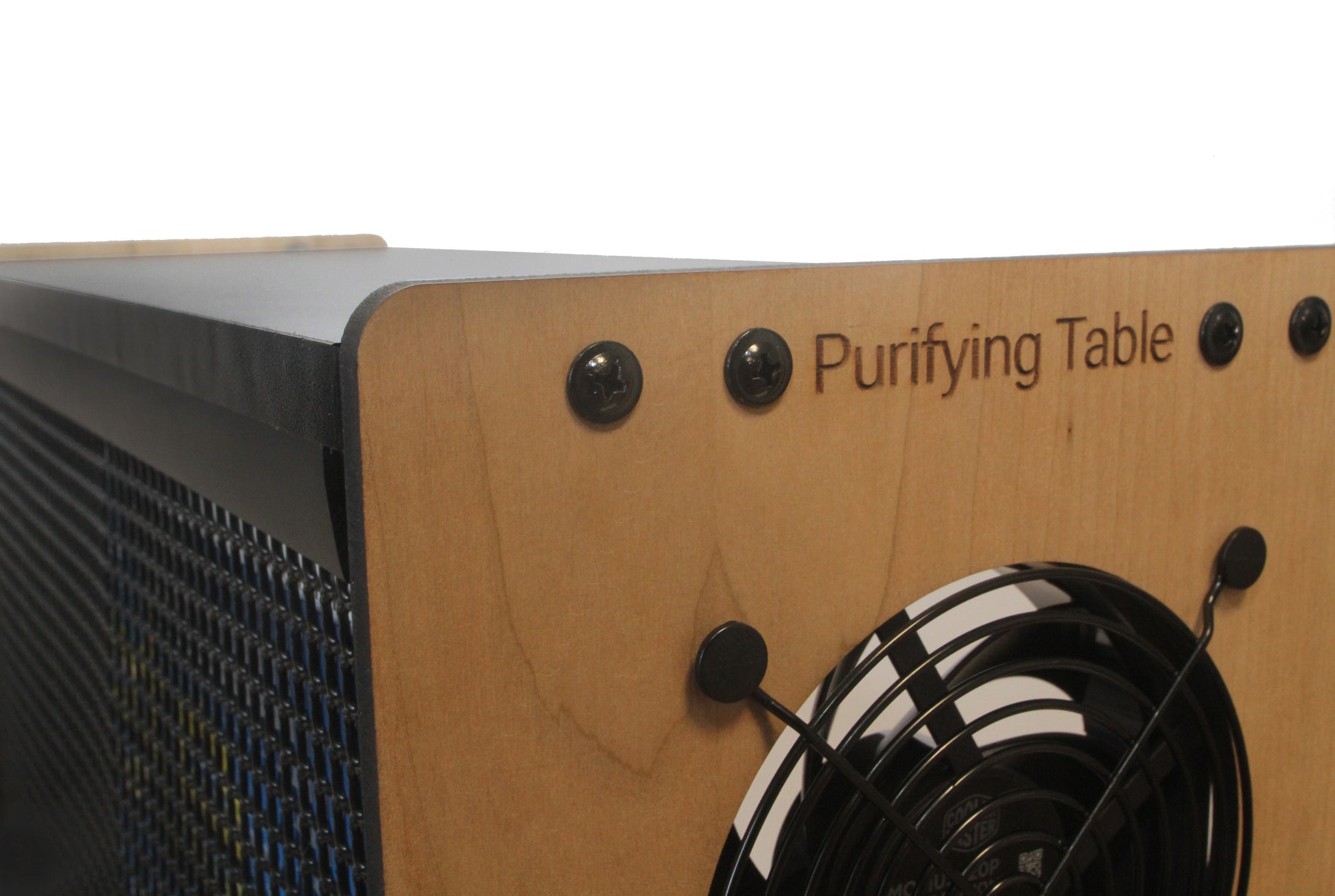

The Purifying Table (7-Fan) is an attractive furniture piece and powerful air purifier, designed to deliver exceptional clean air for larger spaces. This filtering furniture piece has sturdy 1/2" black melamine bridging laser-etched hardboard, or beautifully grained Cherry Veneer fan panels. The Cherry can be stained with a natural oil like Tung Oil.
Its slim profile makes it ideal for large living rooms, open-concept homes, classrooms, offices, community spaces, workshops, and other shared indoor environments where maximum airflow and clean air coverage are needed. It uses the same fans and filter sizes as our Luggable XL Ultra, and thus has equivalent specced performance.

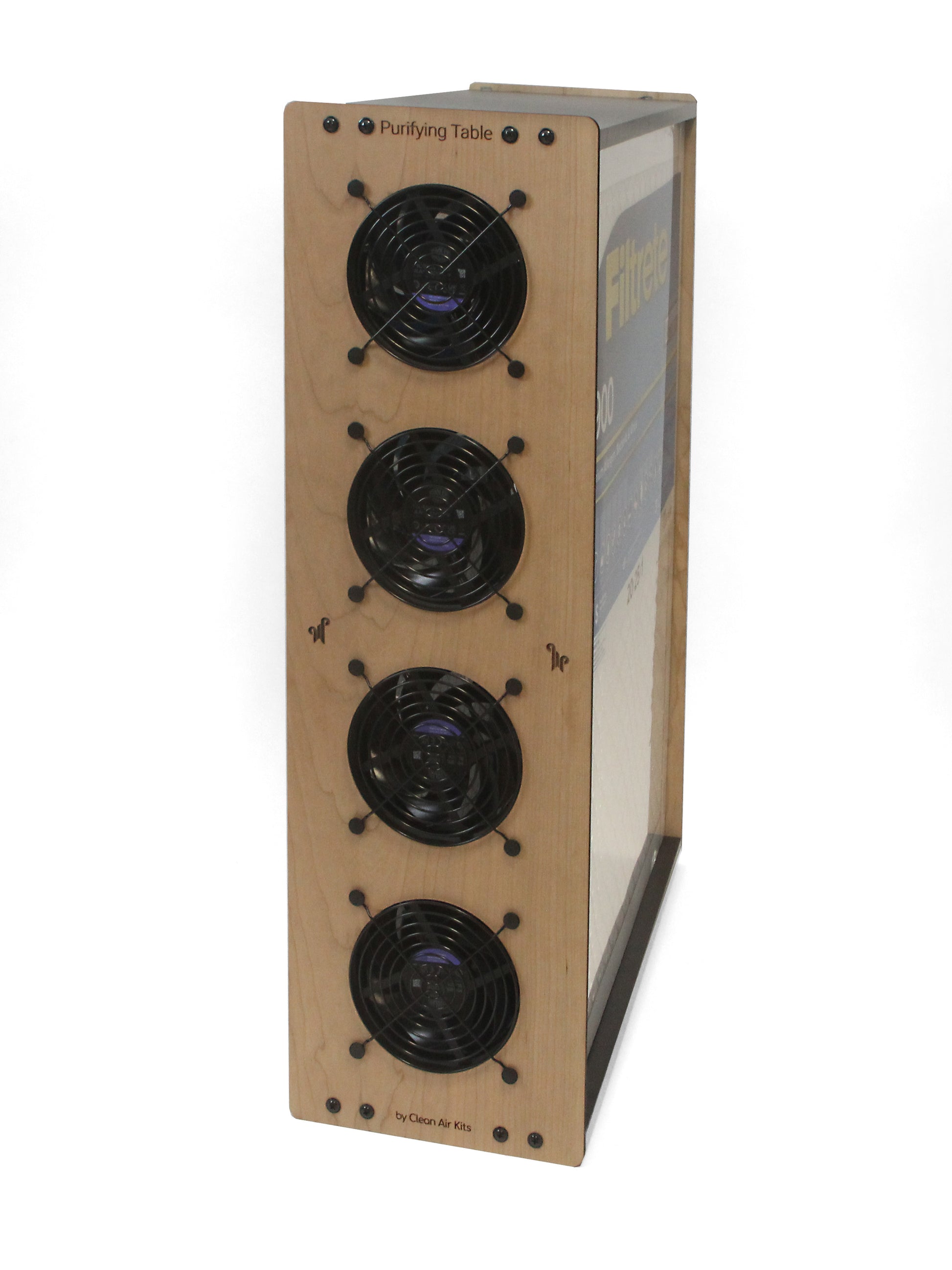

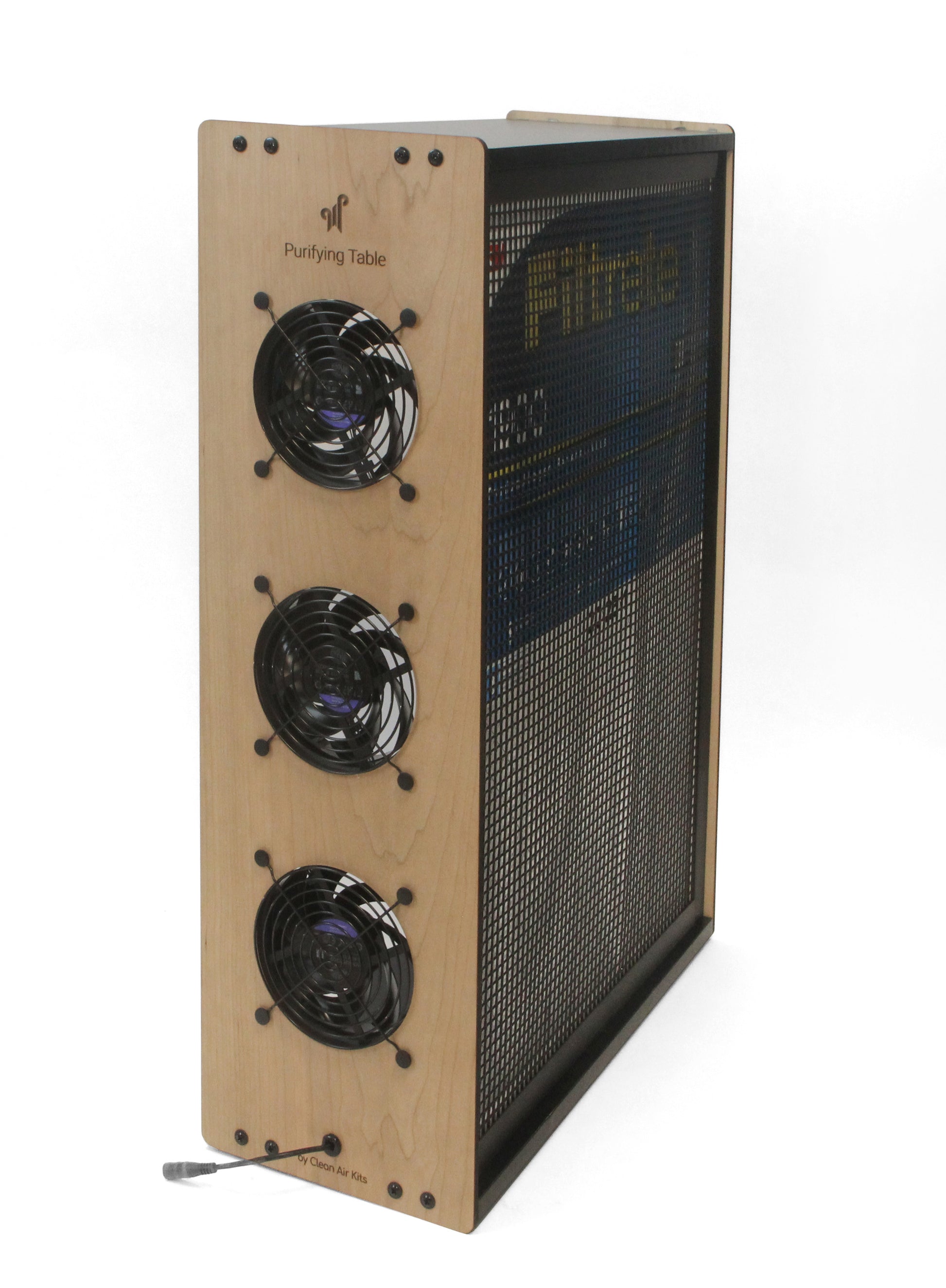

The Purifying Table has two filters on its long sides, and 3-4 fans on each narrow side, so sets conveniently next to a couch, nightstand or island.
High-Performance Filtration

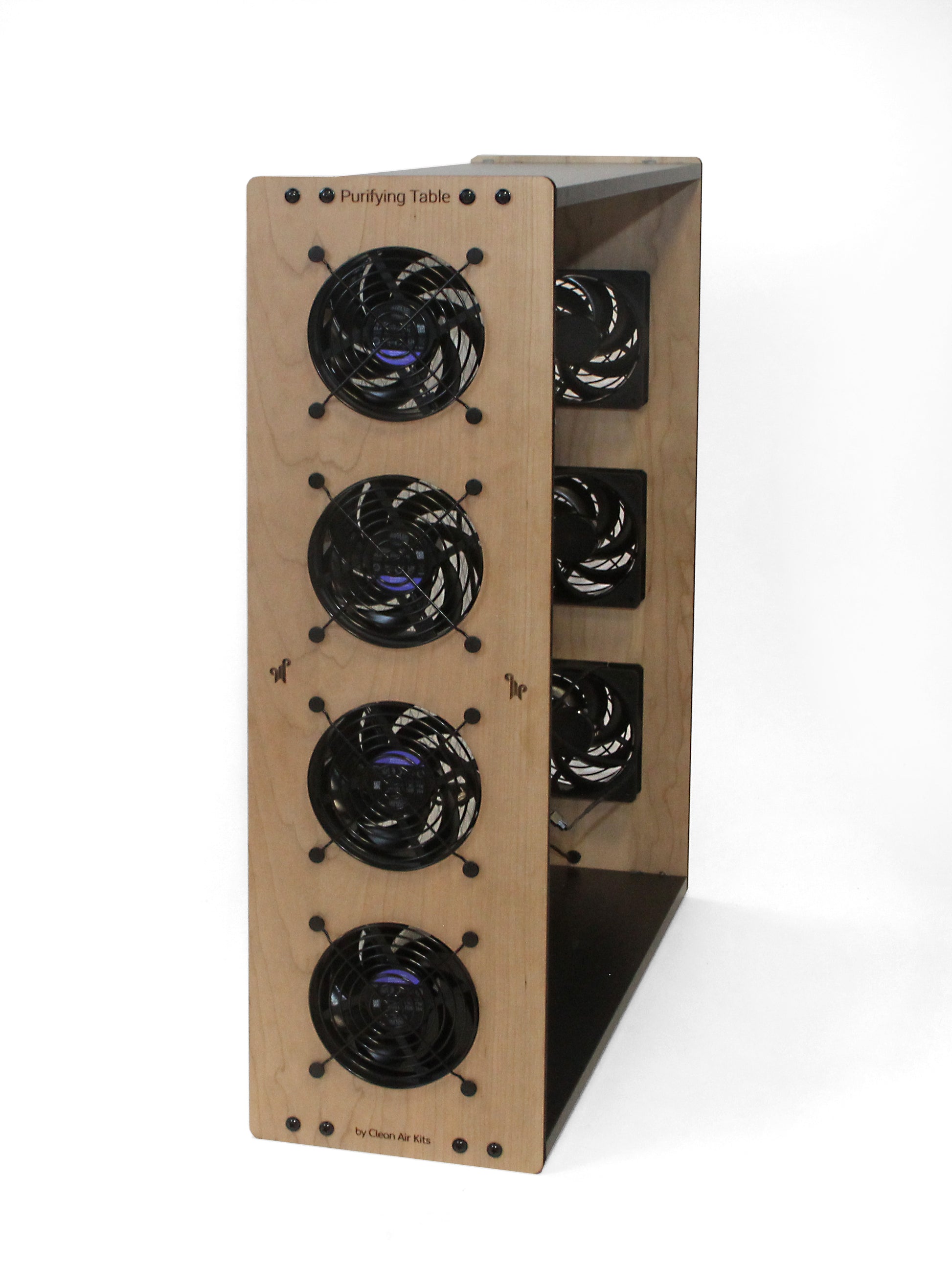

The Purifying Table features seven high-performance Mobius 120P Black Edition fans, an exclusive from Cooler Master for this purifier. These industry-leading fans provide exceptional airflow while maintaining low noise levels and outstanding durability. The Mobius loop dynamic bearing is rated for approximately 210,000 hours (22 years MTTF) of operation.
Efficient Performance
The Purifying Table is designed to deliver high airflow while maintaining low power consumption, making it an energy-efficient choice for continuous air cleaning. In fact, EnergyStar found the equivalent-specced Luggable XL Ultra performed off their charts compared to the previous top performers.
Protection from Claws and Prying Fingers

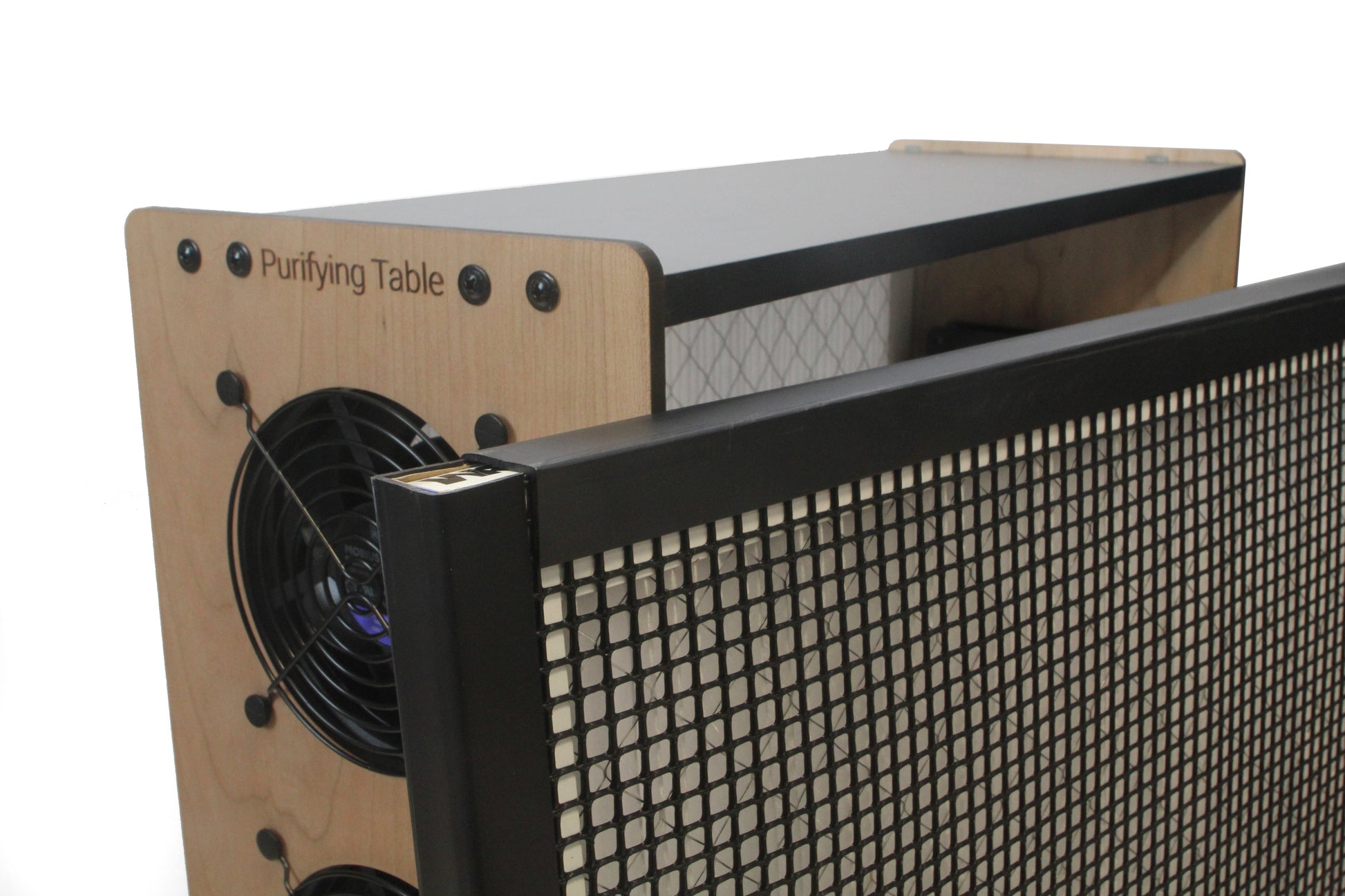

Purifying table includes a set of plastic mesh filter guards that attach to top and bottom of each filter with a simple U-extrusion. These help hide the dust accumulation on the filter and keep little claws and fingers from pulling at the filter material.
Optional Accessories
Like it even quieter? For adjustable airflow, a compatible 3–12V DC, 3A variable power supply is available separately. Otherwise, you get one continuously-running purifier that is always on with one simple, high filtration setting.
Unassembled Kit
To minimize shipping damage & costs, we only ship the Purifying Table as an unassembled flat pack, filters sold separately. Assembly is straightforward with 2 fan panels screwing into the 2 melamine bridges (See guides & video here). Allow 30 minutes for assembly. If concerned, consider asking a handy friend to help with assembly -- they may enjoy it!

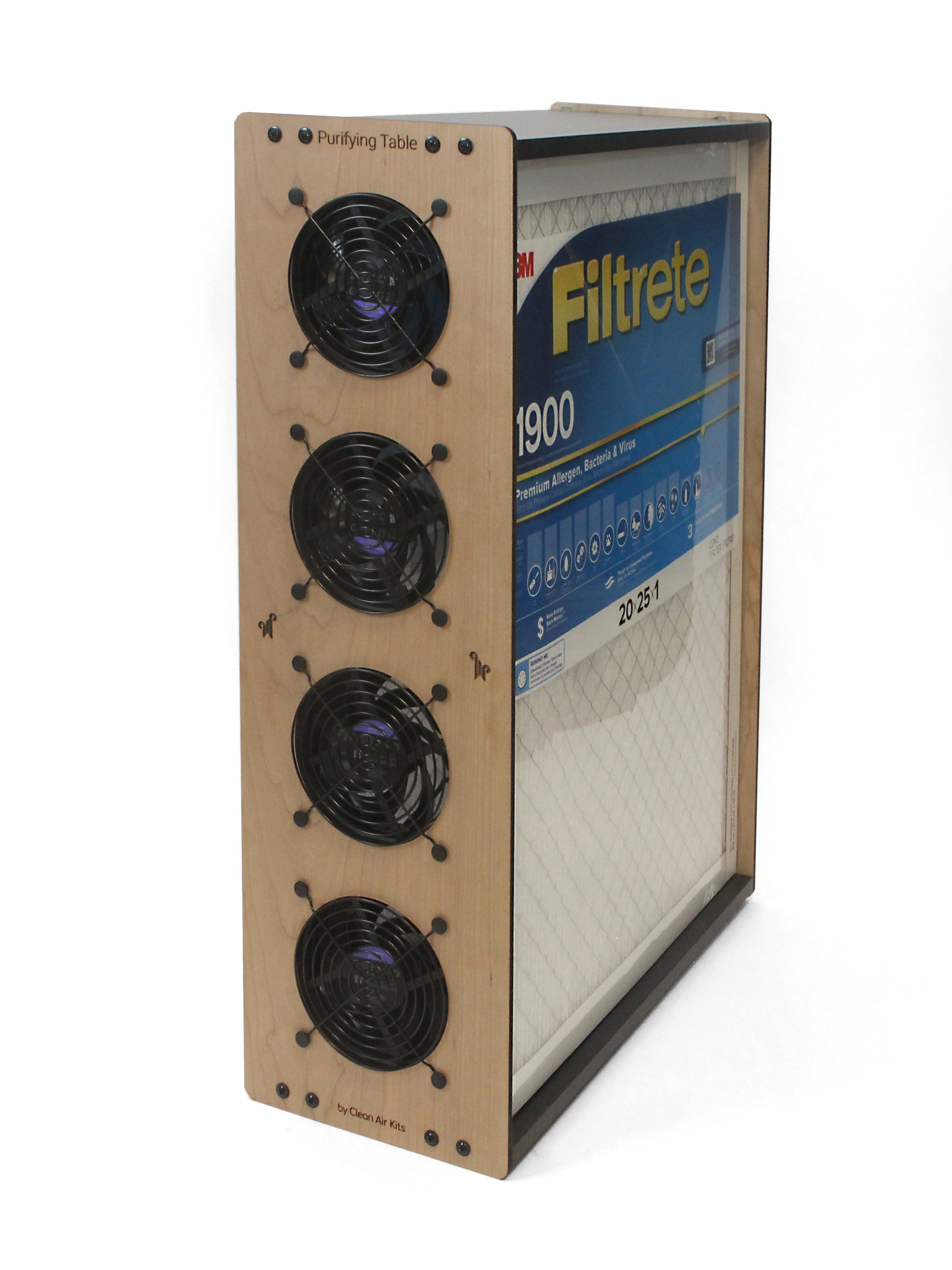

3M Filtrete MPR1900/MPR2200 20x25x1" can be purchased separately from Lowes. Other brand 2" thick MERV13 filters can fit the EndTable by adding 1/4" closed-cell foam weather-seal.
Materials
Purifying Table cherry panels do not contain lead, formaldehyde, or PFAS.
⚠️ California Proposition 65 Warning: Laser cutting of hardboard components may generate trace amounts of chemicals known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov.
-
ModelPurifying Table (7-Fan)
-
Filters2 Filtrete 20x25" MPR1900+
-
Dust/Virus CADR401 cfm (681 m3/hr)
-
Pollen CADR450 cfm
-
Smoke CADR333 cfm
-
Room Occupants (40cfm per)10
-
5 ACH Coverage602 sq ft
-
Power14 W
-
Sound Pressure39 dBA
-
Dimensions20x25x7"
-
Weight13 lbs
- Internal pre-tensioner cords for easy slide-out filter changes and snug fit.
- UL-listed 120V AC to 12V 2A DC wall plug w/ 5.5x2.1mm barrel socket
- CoolerMaster fans are UL-registered components with 160,000 hours mean-time-to-failure for SickleFlow and 210,000 hours for Mobius!
Unintuitively Quiet
It's dead simple. CleanAirKits deliver top-end portable HEPA performance and they're QUIET. At that performance level, HEPA are not quiet -- people turn them down or turn them off. And we need them to be on and high-performing to passively remove covid and pollutants.The exceptionally large, unencumbered filtration area provided by dual micro pleated 3M Filtretes, and our diffuse banks of silent pressure fans make this possible. Delivering 200-500 cubic feet per minute of clean air means the boxes filter 1000-2000 faster than an adult human breathes!
Always On Safety
Since a Clean Air Kit is not loud and power hungry like a HEPA, it can always be running. And if it's always running, it's always adding a layer of protection for you and your family from smoke & airborne transmission of viruses like Flu, RSV, and Covid.
This corresponds to the pandemic HVAC best practice of continuously running furnace fan circulation with MERV13 or MERV14 filtration.
March 2022: Study of 10,441 Italian Classrooms with
varying mechanical ventilation up to 6 ACH.
-
Quiet on FullClean Air Kits produce 5-10x less noise than HEPA purifiers at max capacity.
-
One Speed DesignSpeed controls defeat the efficacy of most HEPAs -- people turn them down to quiet where air cleaning slows. We have just one speed: silent full blast!
-
Unprecedented Energy EfficiencyDecades of competition has driven amazing silence + efficiency in PC fans. Our fan banks use 6-16W -- comparable to a LED bulb and easy to run off batteries!
