Large PC fan CR Boxes can save a couple hundred dollars per year in electricity and filter replacement cost compared to equivalent large HEPAs
-
CADR 369-681 m3/hr - 5-7 fans
Luggables (UK)
Luggables (UK)
Couldn't load pickup availability
Luggables (UK)
Luggable XL Ultra is the quietest, lightest, most compact and cost-effective way to protect 10 people to 40cfm/per level in medium-large rooms like classrooms and open kitchen/family rooms.

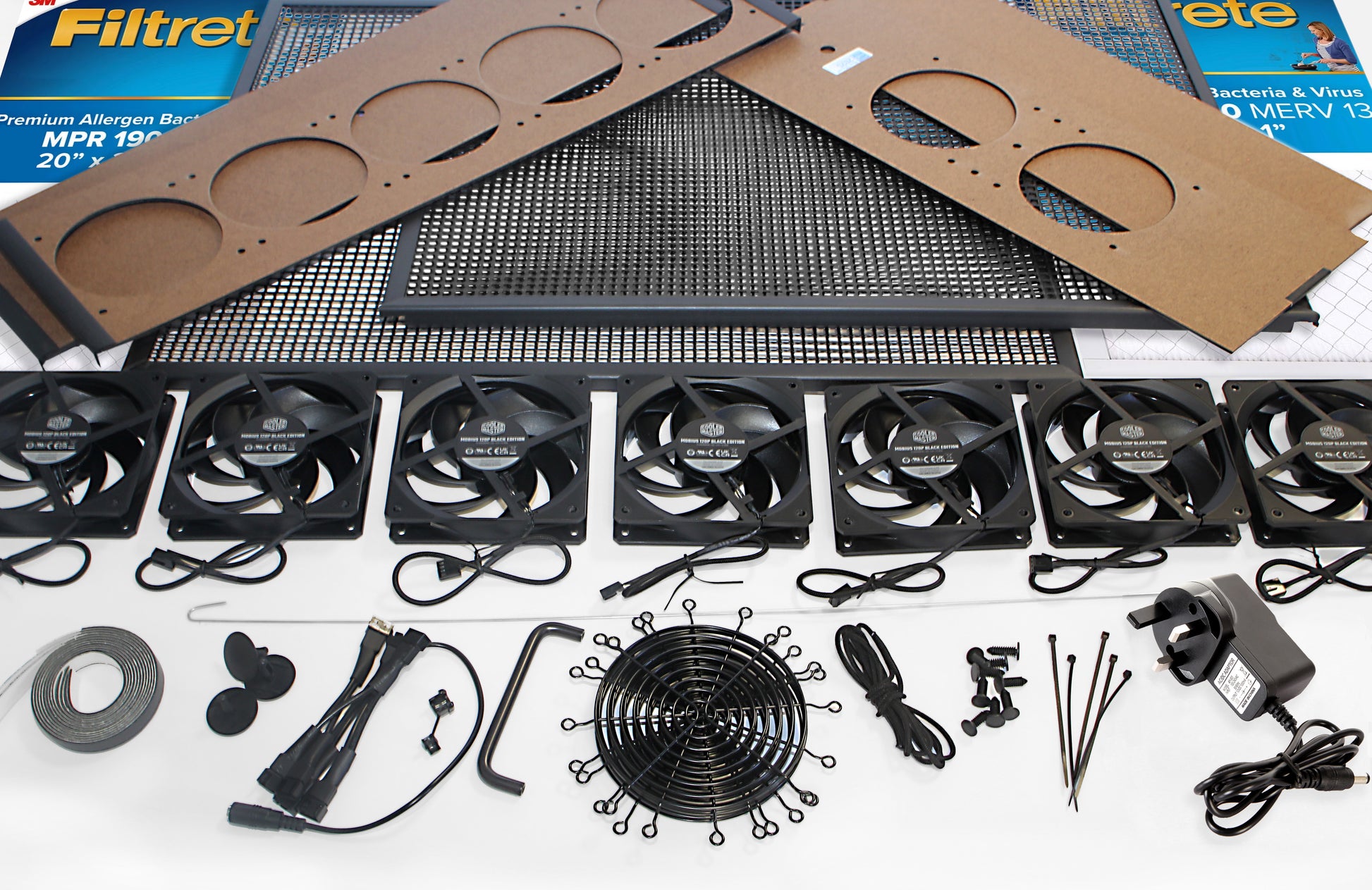

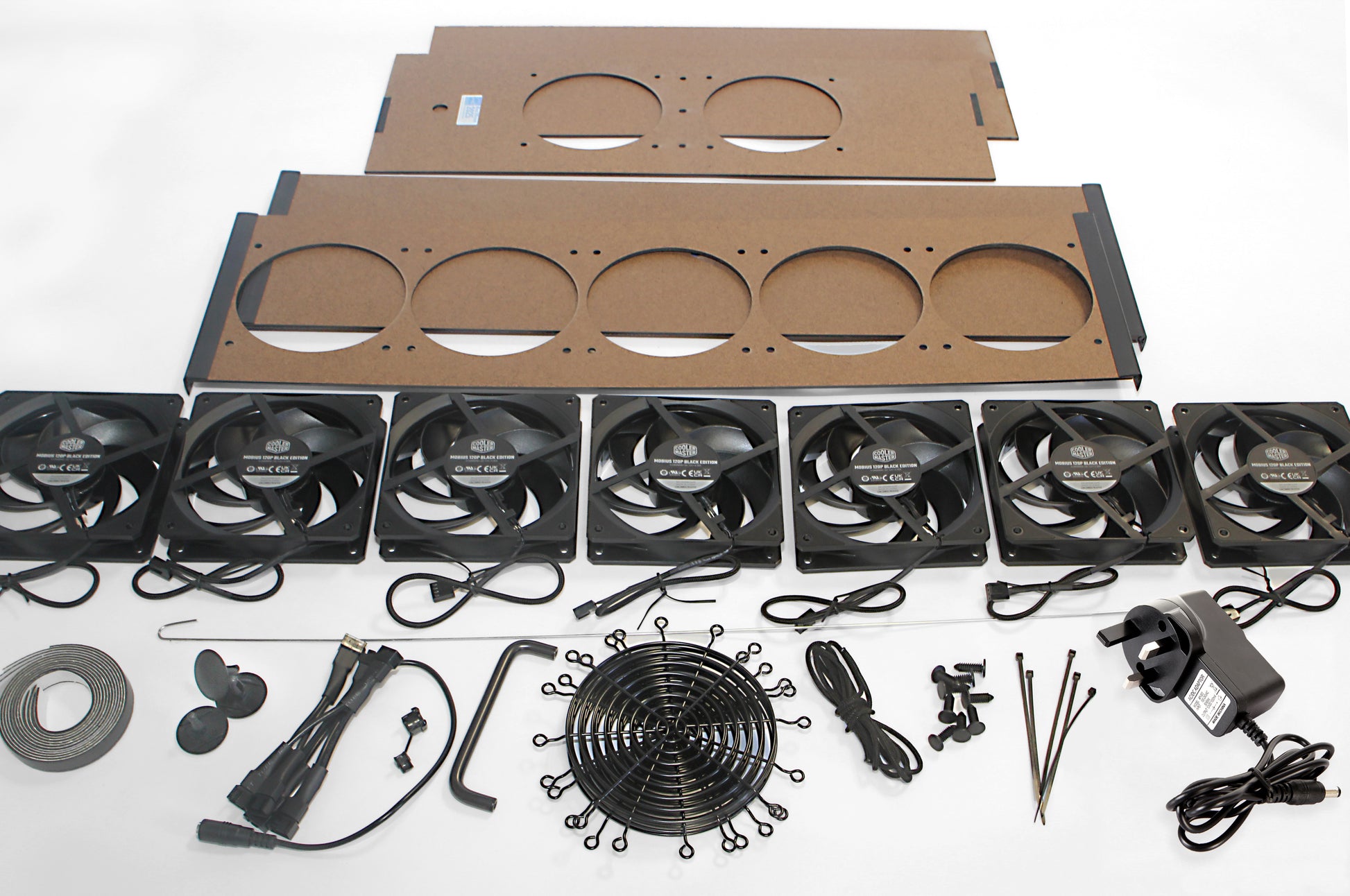

For the XL Ultra, Coolermaster provided us a special Black Edition of their industry-leading Mobius 120P 2400rpm fan. Seven of these Mobius 120P are thus able to replace and outperform the 9 SickleFlow of our former XXL 25x25" model with same noise level! Plus the Mobius loop-dynamic bearing is rated at 210,000 hours or 22 years MTTF (mean-time-to-failure) vs 18 years MTTF for the SickleFlow.
Intertek tested our XL Ultra to achieve an unprecedented 24 Smoke CADR per Watt, more than double the energy efficiency of all large HEPA purifiers in the EnergyStar database!

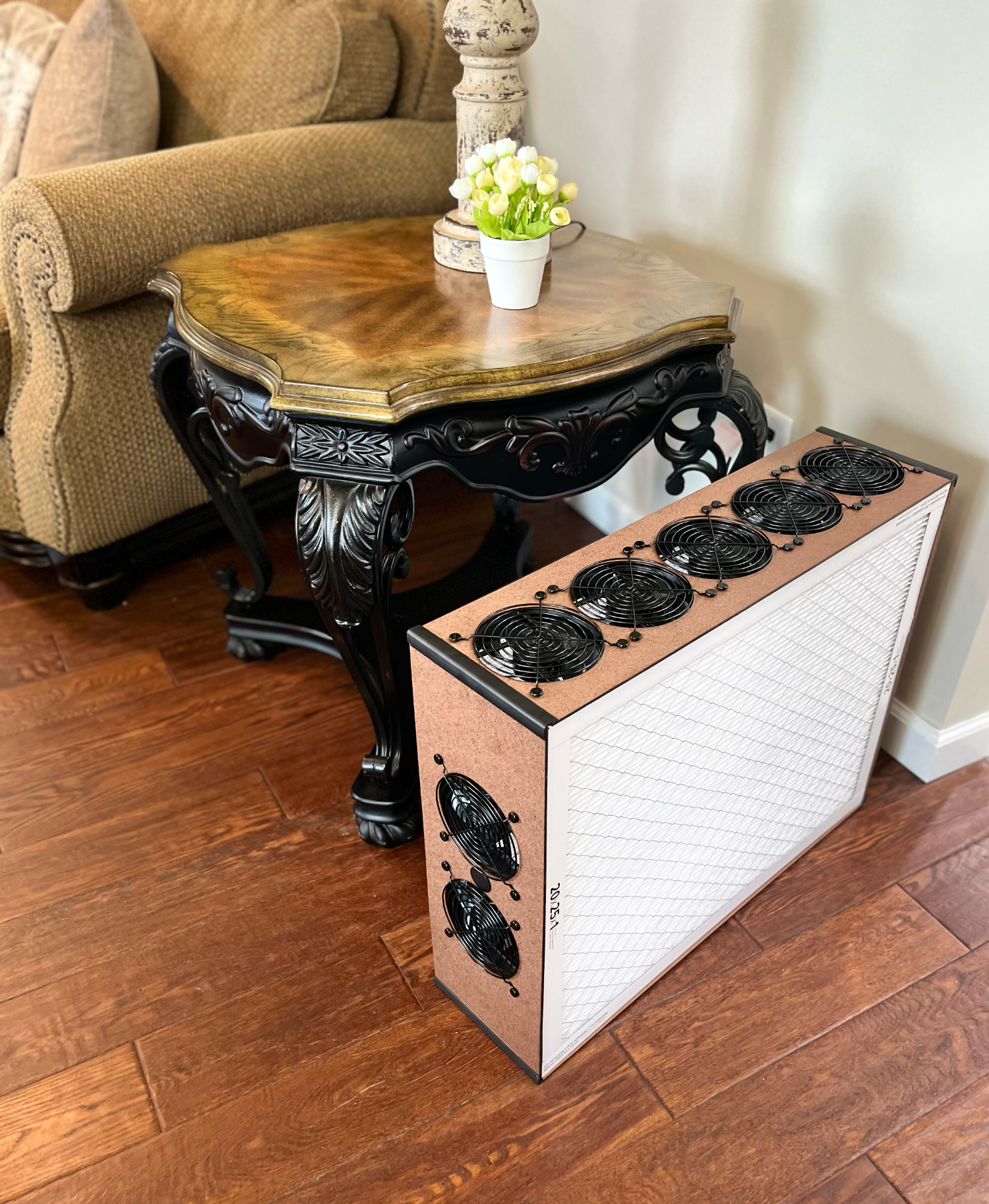

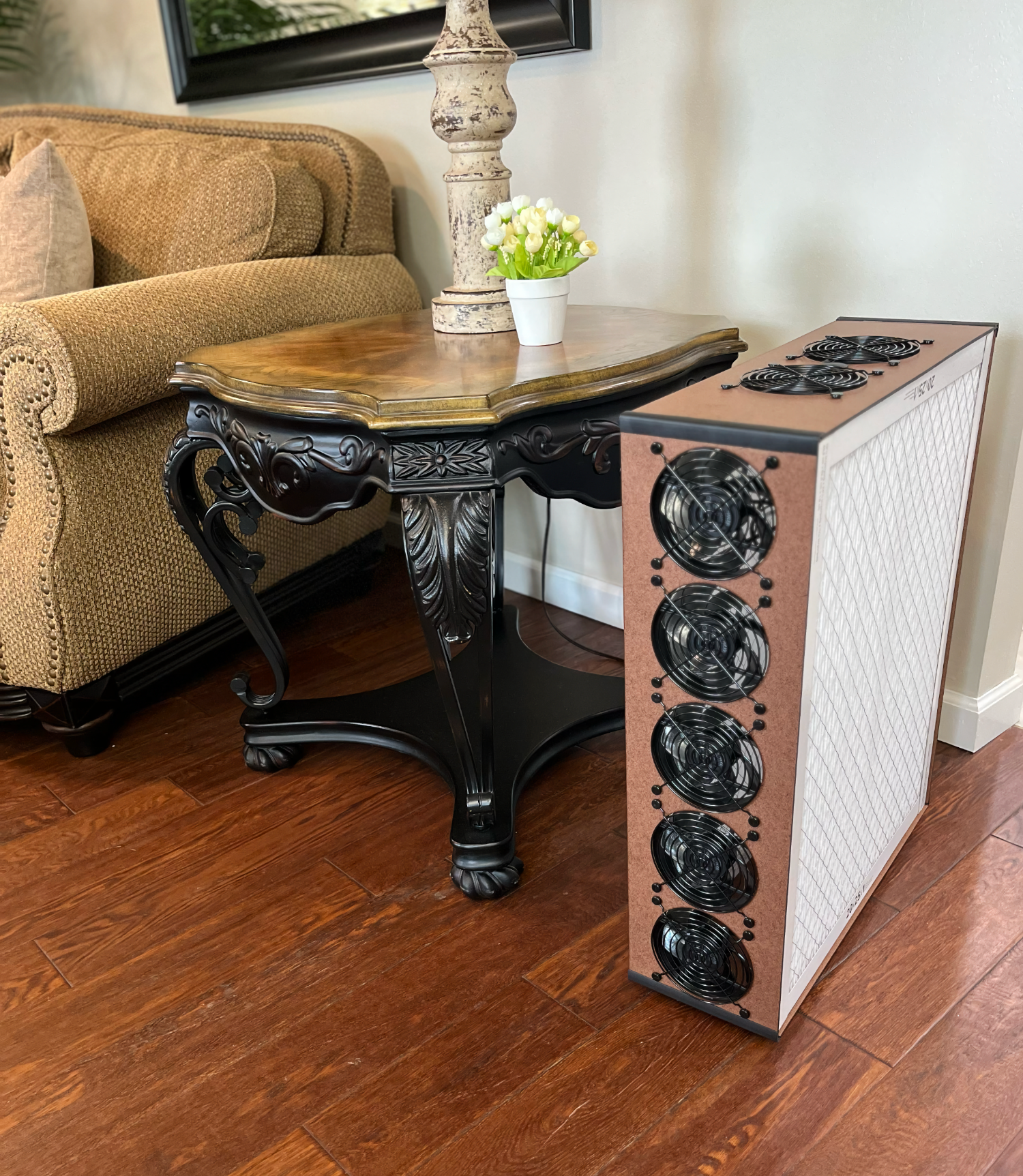

XL Ultra is well-oriented: the main 5-fan bank can blows up and the 2-fan bank sideways, with one side against a wall. Finally, it really is luggable -- weighing only 8 lbs! Luggable XL Ultra comes with a side handle installed.

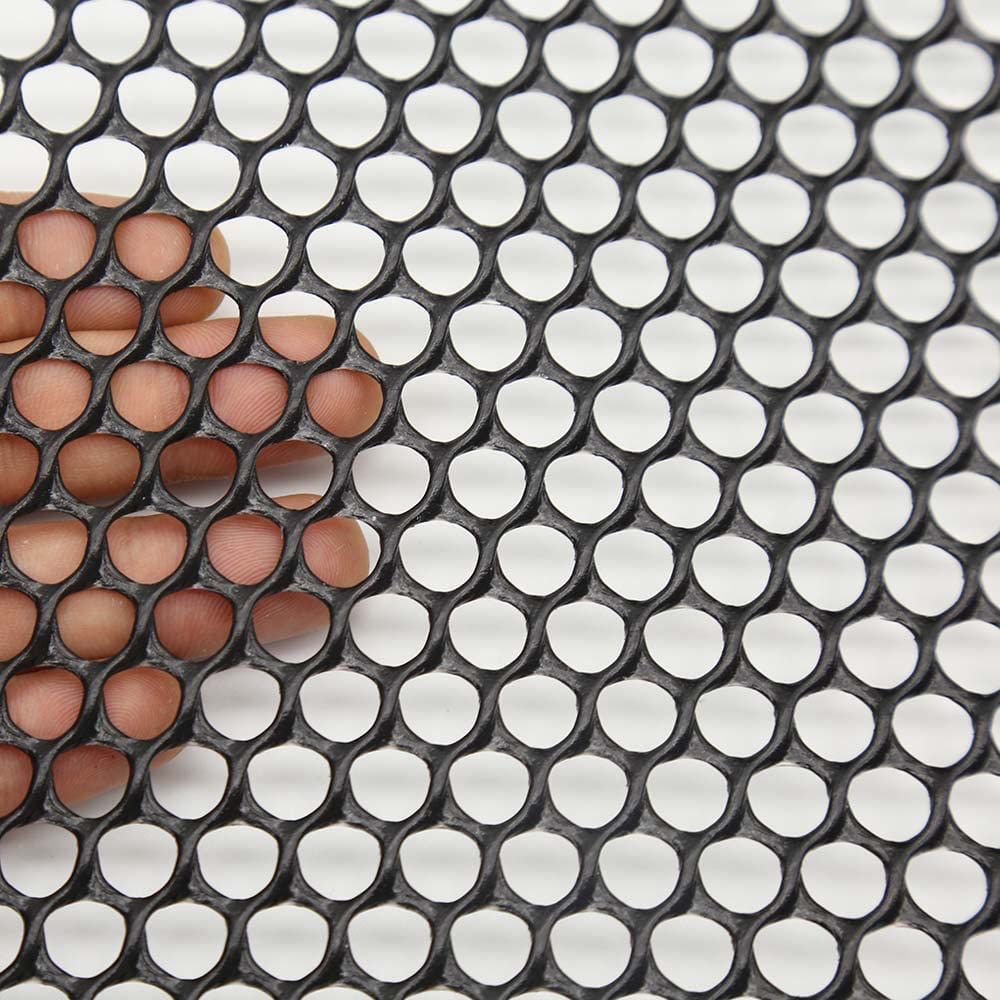

The optional hex mesh filter guard protects from prying little hands and claws. They also strengthen the box considerably. We recommend them if the box will be moved around a lot or placed in high traffic areas like classrooms or restaurants.
Luggables use 3M Filtrete brand American-style MERV13-14 furnace filter media. Filtrete MPR1500-2500 work well with our PC fans and are suitable for capturing smoke, dust, pollen, mold, allergen, bacteria and viruses.

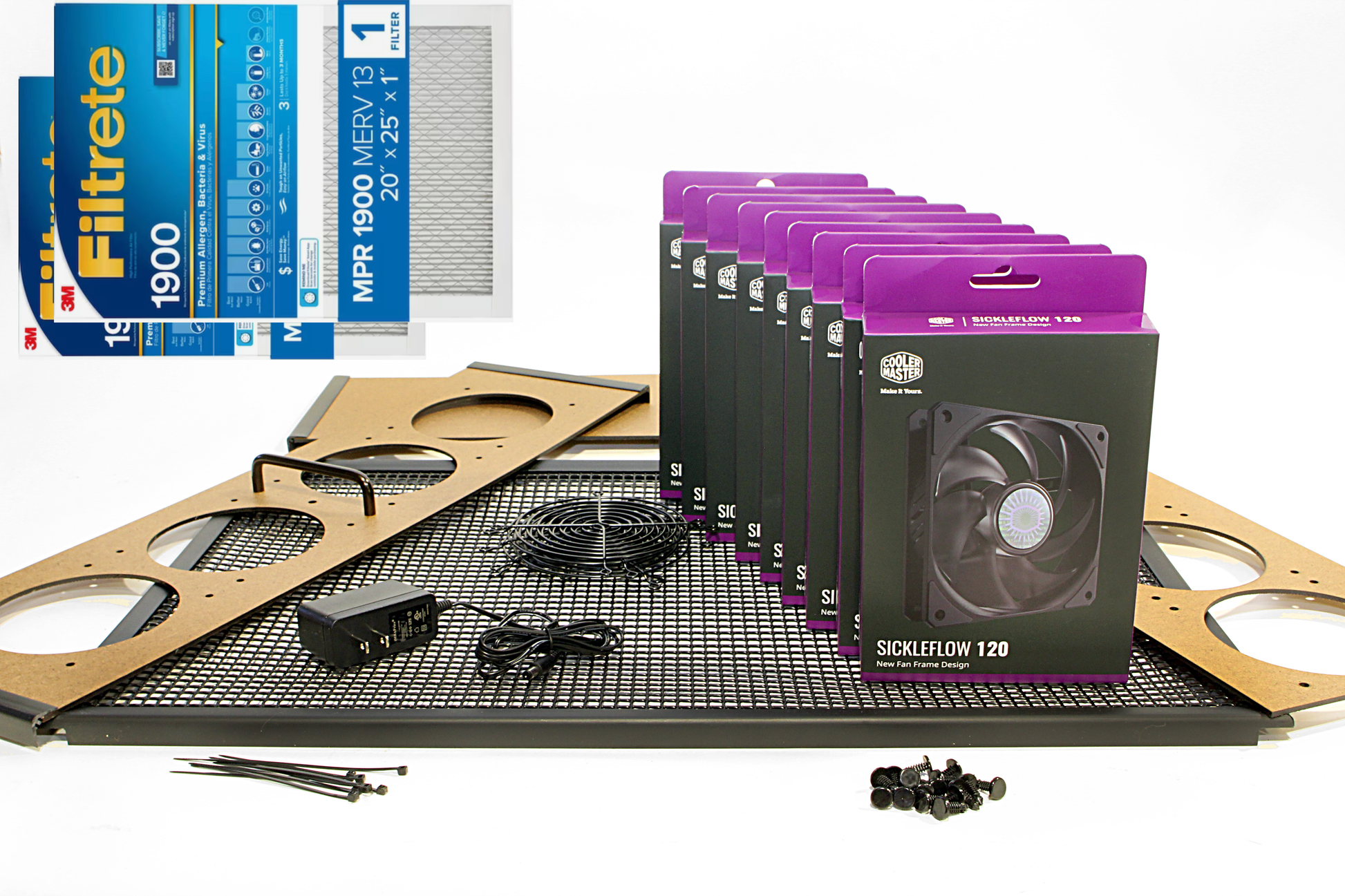

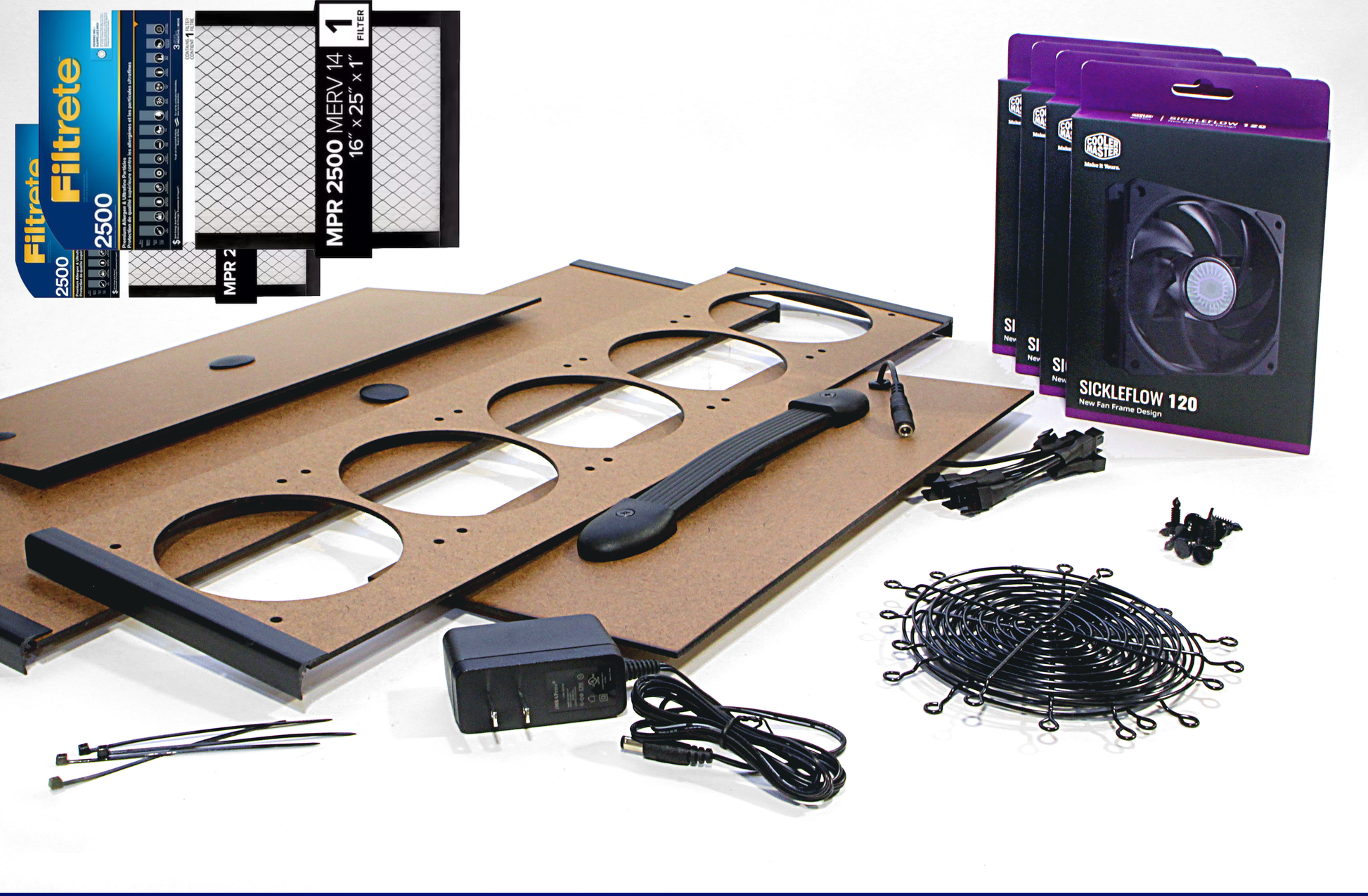

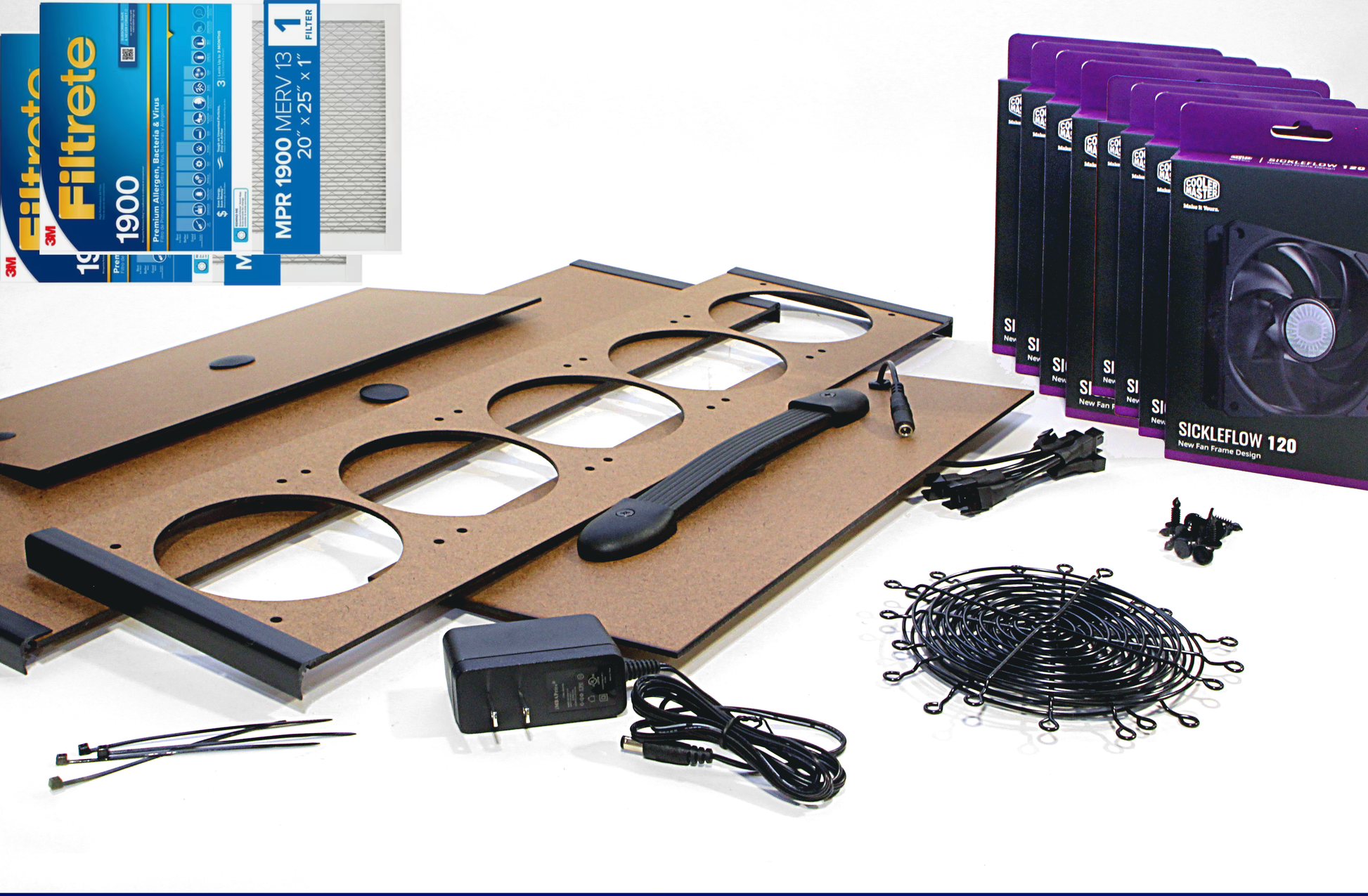

You can choose to bundle 2 pair of MERV13 filter media (a 2-year supply) with your kit order.
In some countries Filtrete replacements may also be purchased from Digikey.

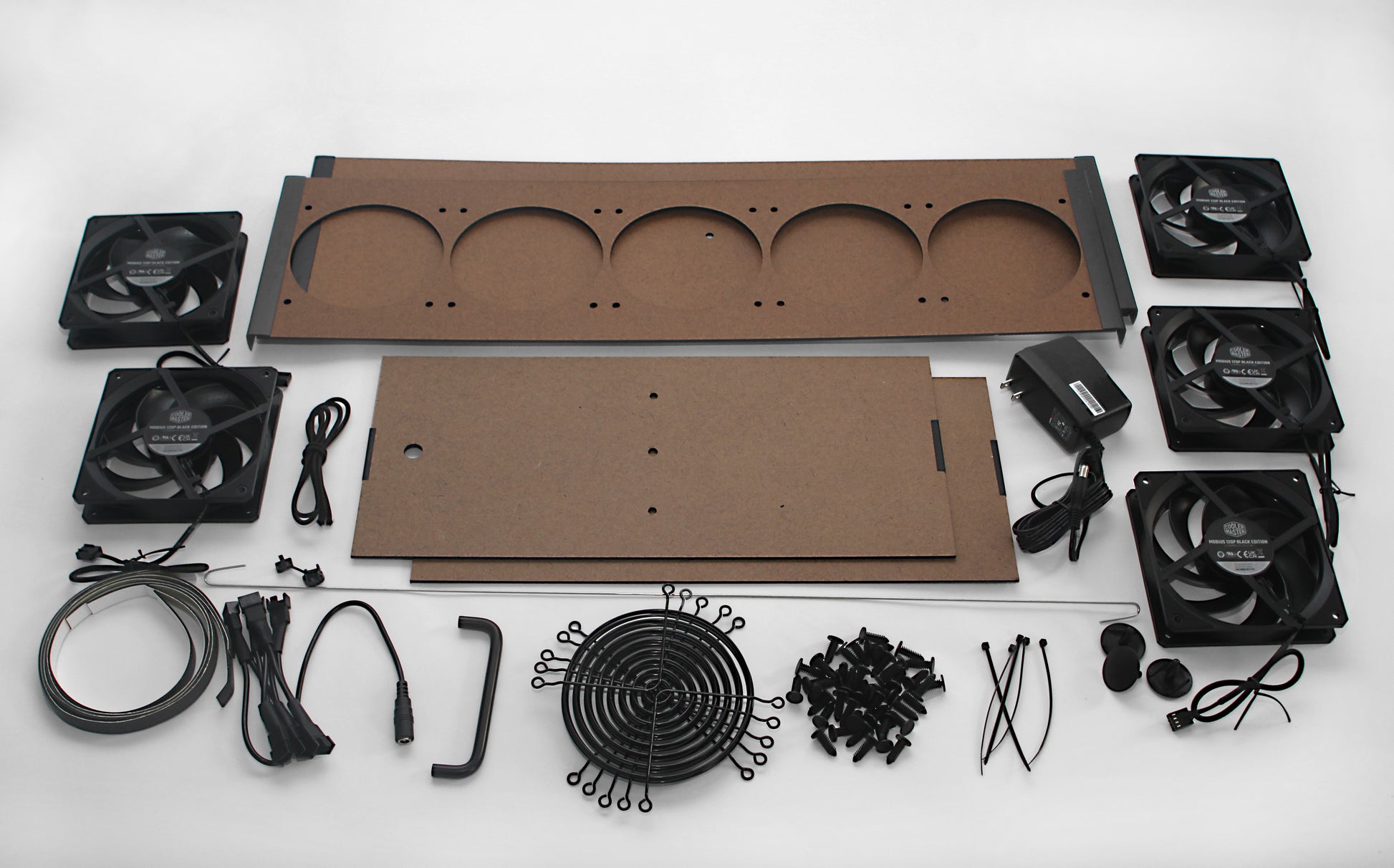

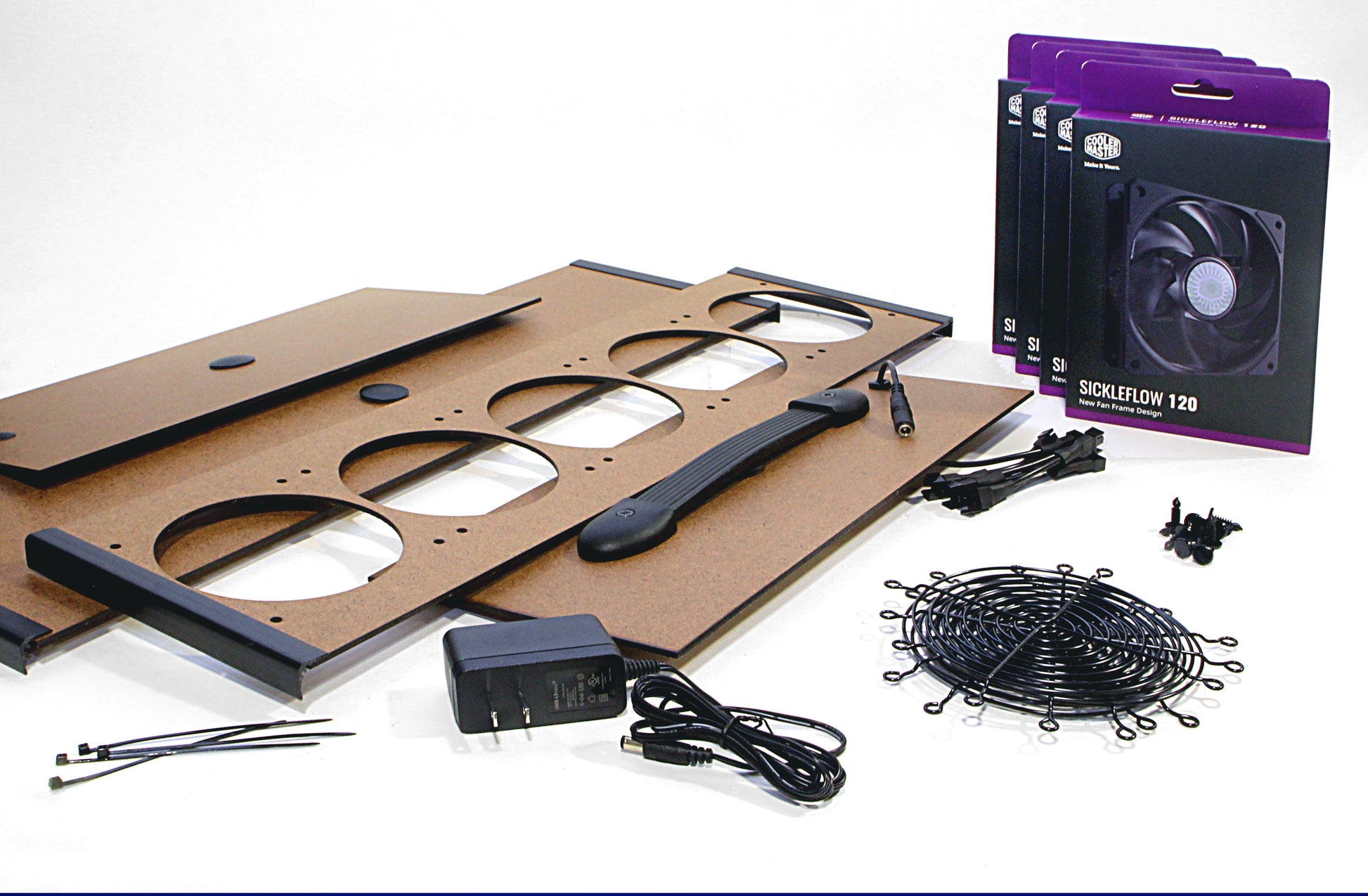

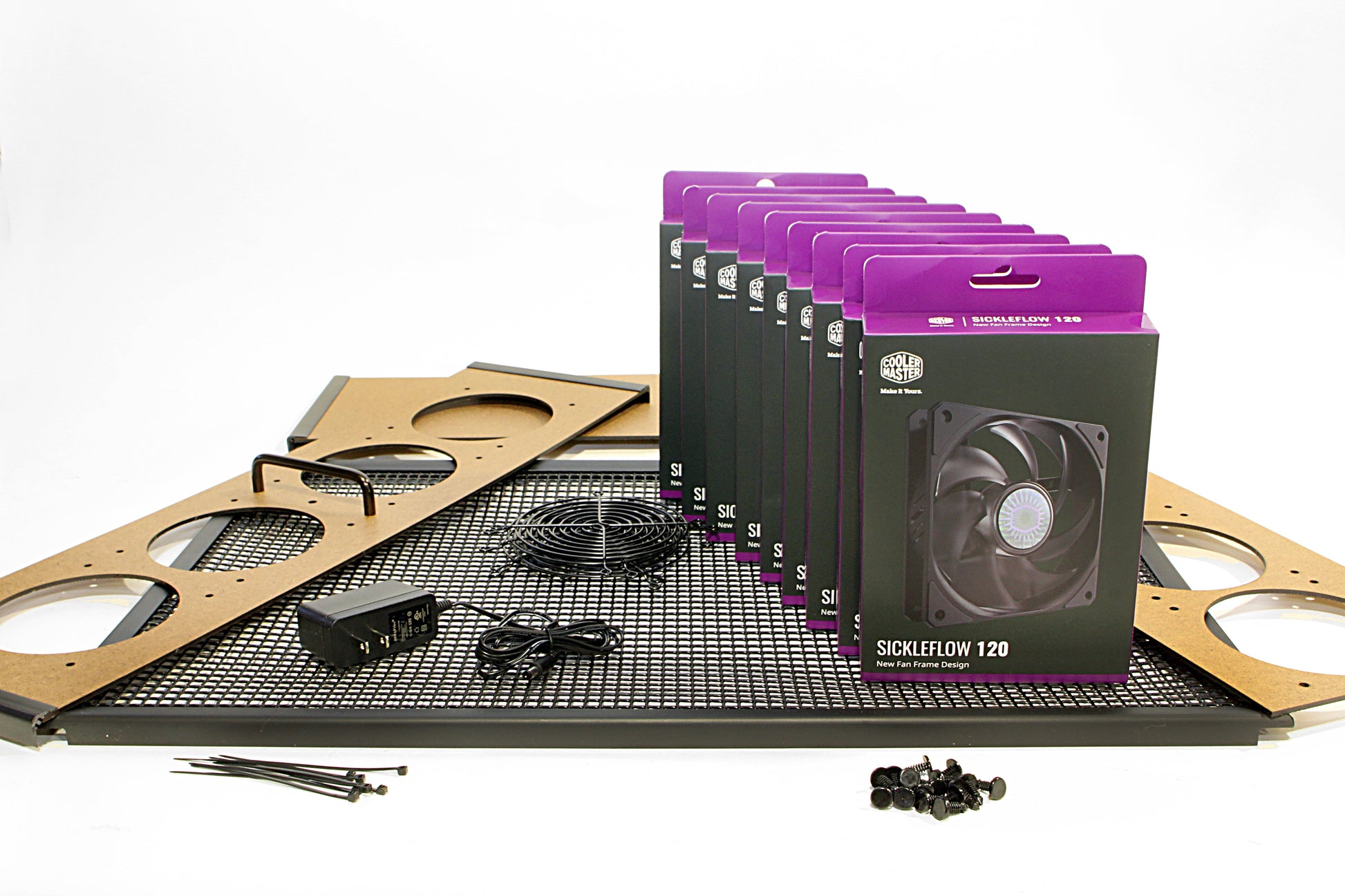

Unassembled Kit has 20-30 minute assembly time. See assembly guides & videos.

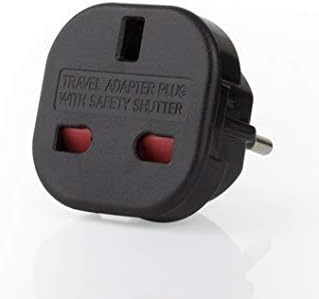

Comes with 12V 2A UK/EU-compatible 220V AC wall power supply
Luggable XL Ultra hardboard panels do not contain lead, Formaldehyde, or PFAS.
Luggable XL Ultra is the quietest, lightest, most compact and cost-effective way to protect 10 people to 40cfm/per level in medium-large rooms like classrooms and open kitchen/family rooms.
For the XL Ultra, Coolermaster provided us a special Black Edition of their industry-leading Mobius 120P 2400rpm fan. Seven of these Mobius 120P are thus able to replace and outperform the 9 SickleFlow of our former XXL 25x25" model with same noise level! Plus the Mobius loop-dynamic bearing is rated at 210,000 hours or 22 years MTTF (mean-time-to-failure) vs 18 years MTTF for the SickleFlow.
Intertek tested our XL Ultra to achieve an unprecedented 24 Smoke CADR per Watt, more than double the energy efficiency of all large HEPA purifiers in the EnergyStar database!
XL Ultra is well-oriented: the main 5-fan bank can blows up and the 2-fan bank sideways, with one side against a wall. Finally, it really is luggable -- weighing only 8 lbs! Luggable XL Ultra comes with a side handle installed.
The optional hex mesh filter guard protects from prying little hands and claws. They also strengthen the box considerably. We recommend them if the box will be moved around a lot or placed in high traffic areas like classrooms or restaurants.
Luggables use 3M Filtrete brand American-style MERV13-14 furnace filter media. Filtrete MPR1500-2500 work well with our PC fans and are suitable for capturing smoke, dust, pollen, mold, allergen, bacteria and viruses.
You can choose to bundle 2 pair of MERV13 filter media (a 2-year supply) with your kit order.
In some countries Filtrete replacements may also be purchased from Digikey.
Unassembled Kit has 20-30 minute assembly time. See assembly guides & videos.
Comes with 12V 2A UK/EU-compatible 220V AC wall power supply
Luggable XL Ultra hardboard panels do not contain lead, Formaldehyde, or PFAS.
Luggable XL Ultra is the quietest, lightest, most compact and cost-effective way to protect 10 people to 40cfm/per level in medium-large rooms like classrooms and open kitchen/family rooms.
For the XL Ultra, Coolermaster provided us a special Black Edition of their industry-leading Mobius 120P 2400rpm fan. Seven of these Mobius 120P are thus able to replace and outperform the 9 SickleFlow of our former XXL 25x25" model with same noise level! Plus the Mobius loop-dynamic bearing is rated at 210,000 hours or 22 years MTTF (mean-time-to-failure) vs 18 years MTTF for the SickleFlow.
Intertek tested our XL Ultra to achieve an unprecedented 24 Smoke CADR per Watt, more than double the energy efficiency of all large HEPA purifiers in the EnergyStar database!
XL Ultra is well-oriented: the main 5-fan bank can blows up and the 2-fan bank sideways, with one side against a wall. Finally, it really is luggable -- weighing only 8 lbs! Luggable XL Ultra comes with a side handle installed.
The optional hex mesh filter guard protects from prying little hands and claws. They also strengthen the box considerably. We recommend them if the box will be moved around a lot or placed in high traffic areas like classrooms or restaurants.
Luggables use 3M Filtrete brand American-style MERV13-14 furnace filter media. Filtrete MPR1500-2500 work well with our PC fans and are suitable for capturing smoke, dust, pollen, mold, allergen, bacteria and viruses.
You can choose to bundle 2 pair of MERV13 filter media (a 2-year supply) with your kit order.
In some countries Filtrete replacements may also be purchased from Digikey.
Unassembled Kit has 20-30 minute assembly time. See assembly guides & videos.
Comes with 12V 2A UK/EU-compatible 220V AC wall power supply
Luggable XL Ultra hardboard panels do not contain lead, Formaldehyde, or PFAS.
Luggable XL Ultra is the quietest, lightest, most compact and cost-effective way to protect 10 people to 40cfm/per level in medium-large rooms like classrooms and open kitchen/family rooms.
For the XL Ultra, Coolermaster provided us a special Black Edition of their industry-leading Mobius 120P 2400rpm fan. Seven of these Mobius 120P are thus able to replace and outperform the 9 SickleFlow of our former XXL 25x25" model with same noise level! Plus the Mobius loop-dynamic bearing is rated at 210,000 hours or 22 years MTTF (mean-time-to-failure) vs 18 years MTTF for the SickleFlow.
Intertek tested our XL Ultra to achieve an unprecedented 24 Smoke CADR per Watt, more than double the energy efficiency of all large HEPA purifiers in the EnergyStar database!
XL Ultra is well-oriented: the main 5-fan bank can blows up and the 2-fan bank sideways, with one side against a wall. Finally, it really is luggable -- weighing only 8 lbs! Luggable XL Ultra comes with a side handle installed.
The optional hex mesh filter guard protects from prying little hands and claws. They also strengthen the box considerably. We recommend them if the box will be moved around a lot or placed in high traffic areas like classrooms or restaurants.
Luggables use 3M Filtrete brand American-style MERV13-14 furnace filter media. Filtrete MPR1500-2500 work well with our PC fans and are suitable for capturing smoke, dust, pollen, mold, allergen, bacteria and viruses.
You can choose to bundle 2 pair of MERV13 filter media (a 2-year supply) with your kit order.
In some countries Filtrete replacements may also be purchased from Digikey.
Unassembled Kit has 20-30 minute assembly time. See assembly guides & videos.
Comes with 12V 2A UK/EU-compatible 220V AC wall power supply
Luggable XL Ultra hardboard panels do not contain lead, Formaldehyde, or PFAS.

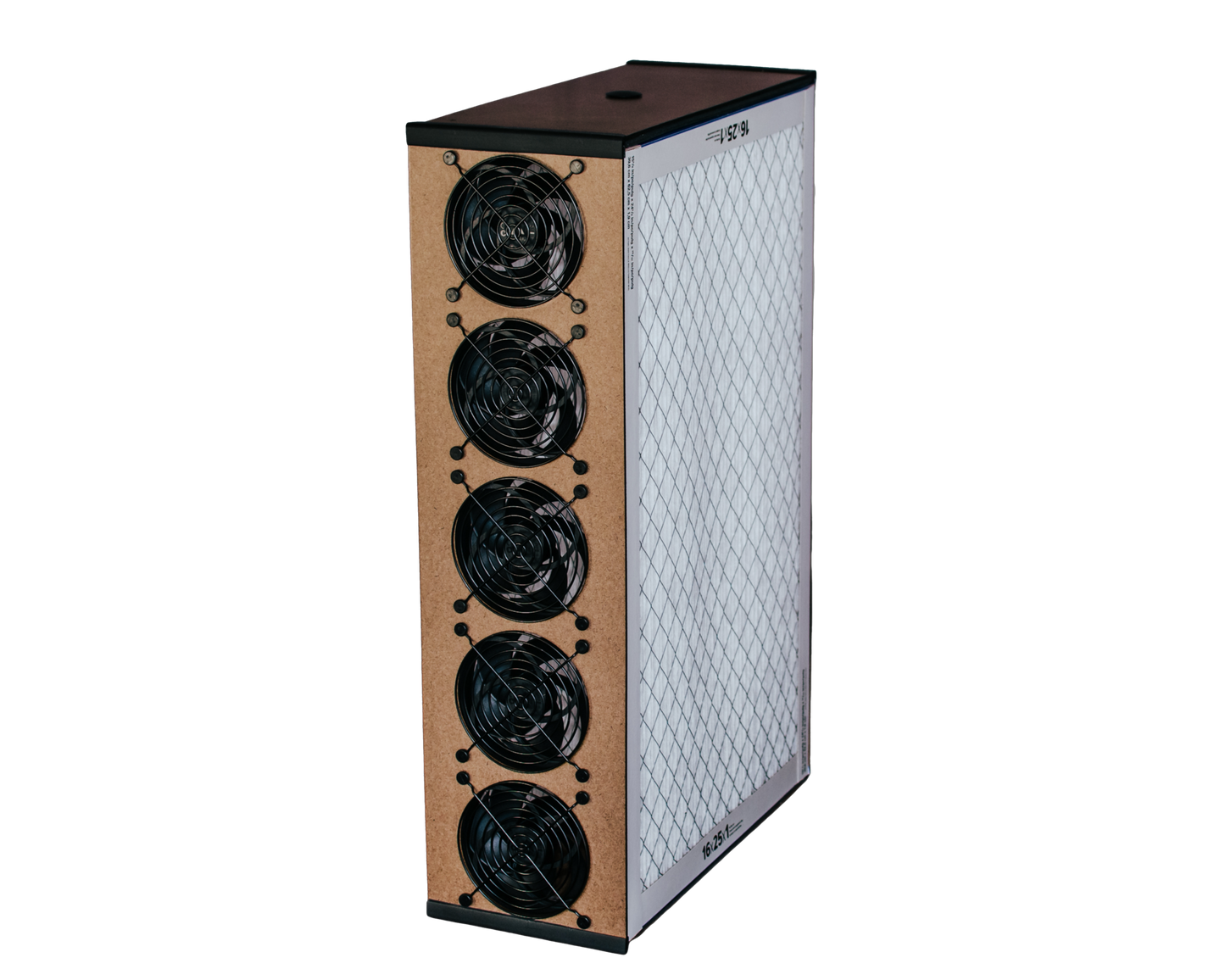

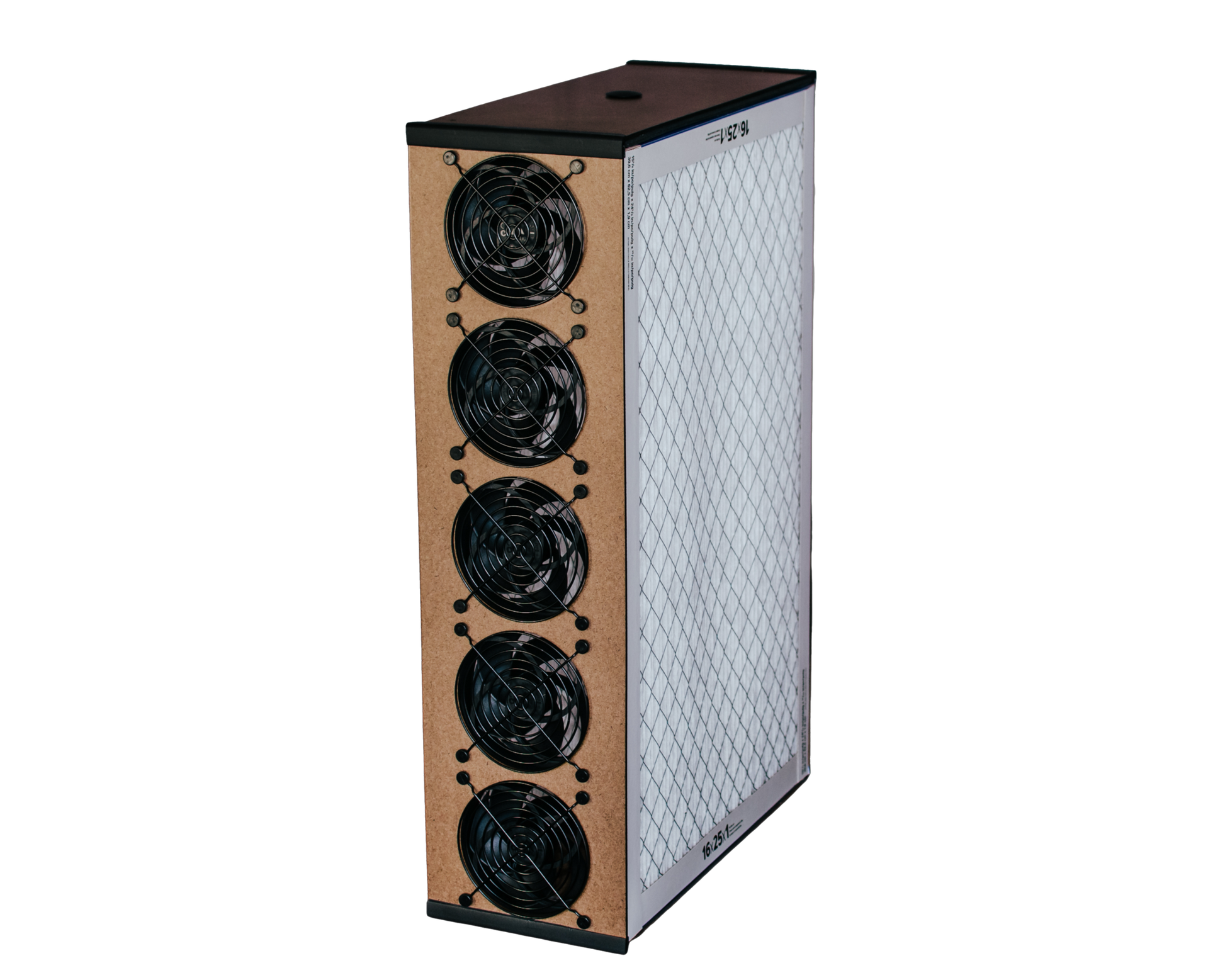

Luggables are our lightweight, portable, and cost-effective CR Boxes covering rooms from small to large. The 16x25x7" 5-fan Luggable fits small-medium bedrooms, offices and dining rooms. The 20x25x7" 7-fan Luggable XL clears open family rooms and classrooms. Luggables are well-oriented: the 5-fan bank can blow up or sideways, with one side against a wall. Finally, it really is luggable -- weighing only 6-9 lbs! Comes with a side suitcase handle installed.
Luggables use 3M Filtrete brand American-style MERV13-14 furnace filter media. Filtrete MPR1500-2500 work well with our PC fans and are suitable for capturing smoke, dust, pollen, mold, allergen, bacteria and viruses.
You can choose to bundle 2 pair of MERV13 filter media (a 2-year supply) with your kit order.
In some countries Filtrete replacements may also be purchased from Digikey.

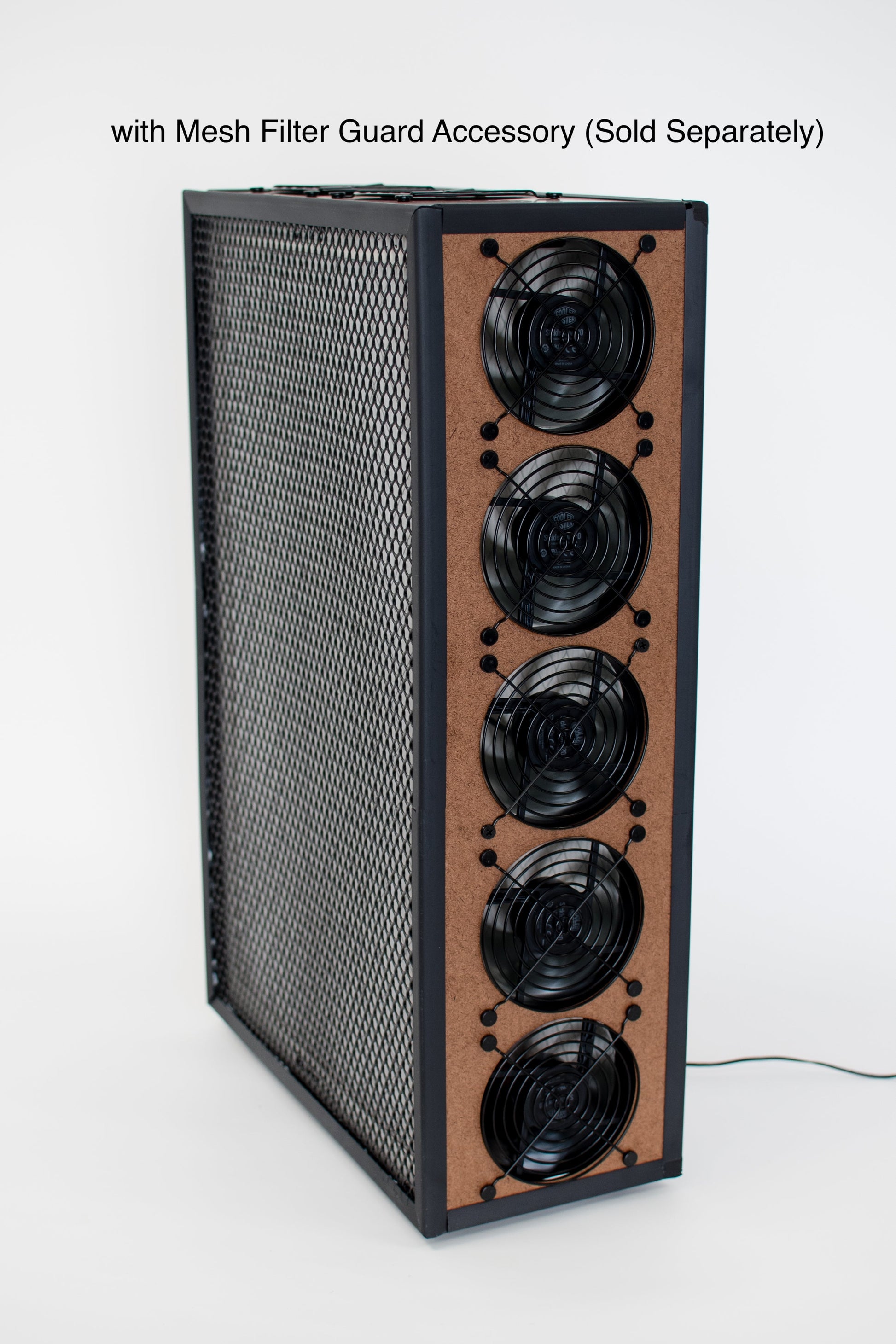

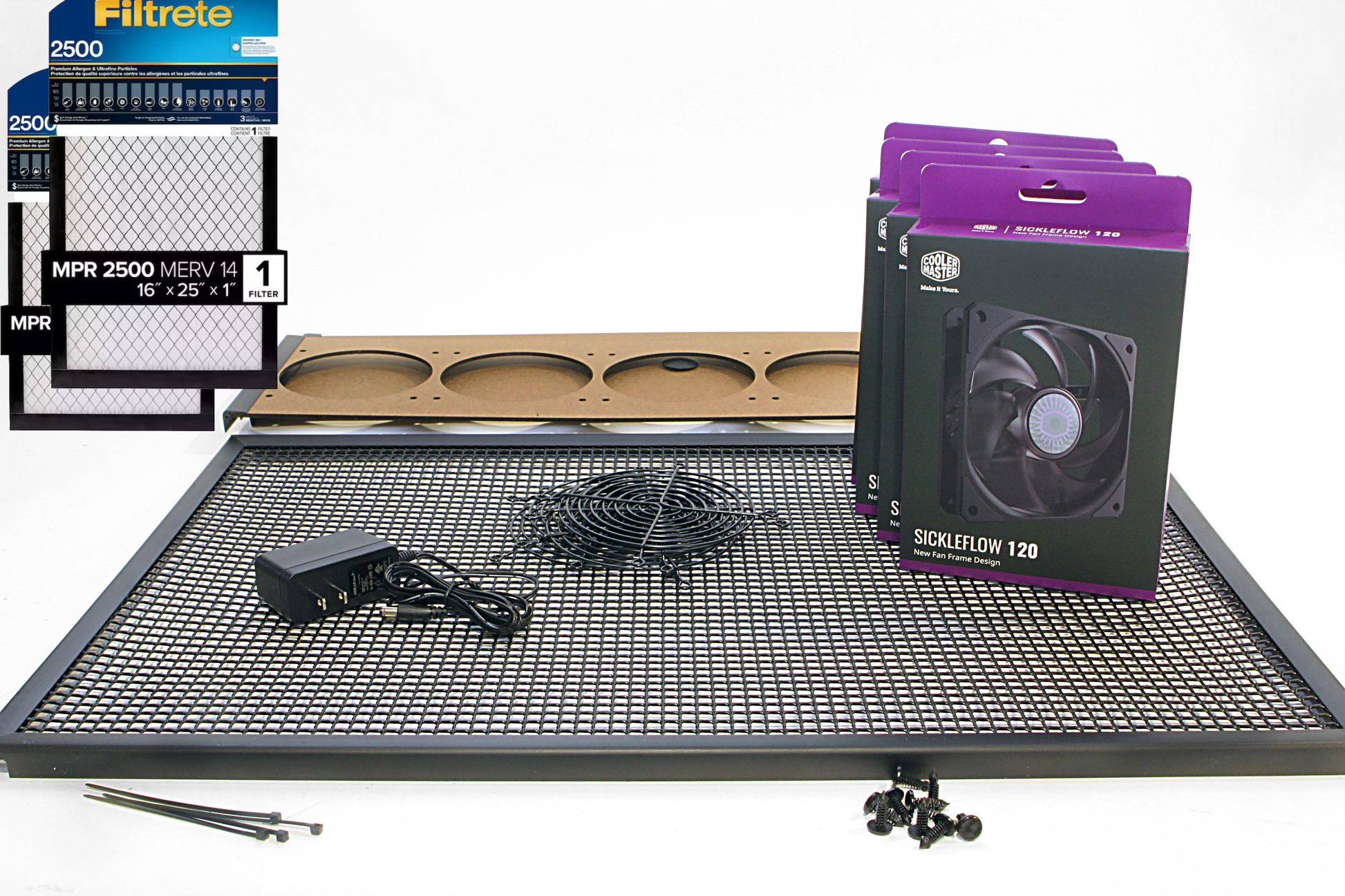

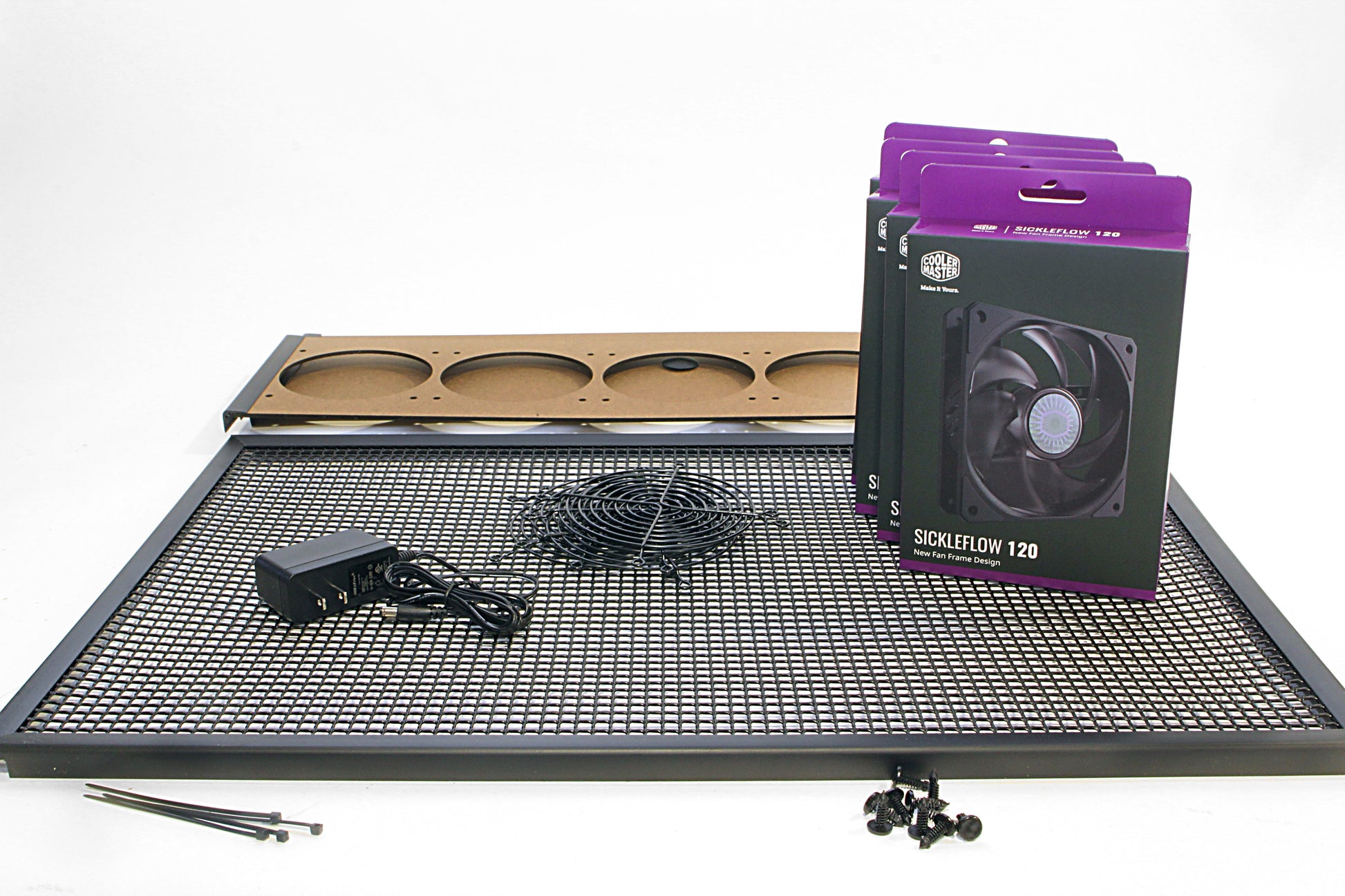

Hex mesh filter guards are also an optional accessory to protect from prying little hands and claws.
Unassembled Kit has 20-30 minute assembly time. See assembly guides & videos.
Comes with 12V 2A UK & EU-compatible 220V AC wall power supply
-

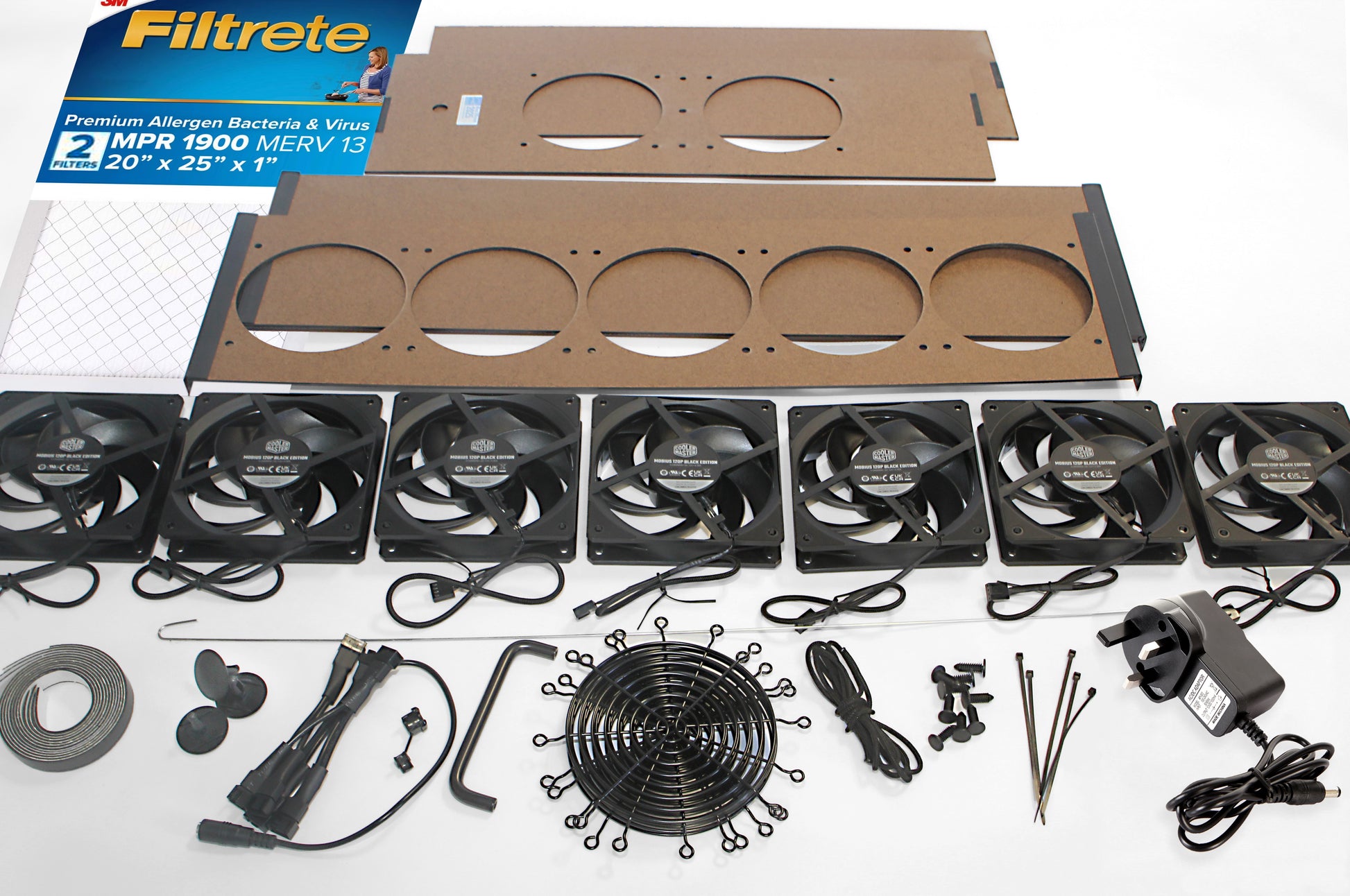

VariantXL Ultra - 7 Mobius 120P
-
Filters2 Filtrete 20x25" MPR1900+
-
Dust/Virus CADR401 cfm (681 m3/hr)
-
Pollen CADR450 cfm
-
Smoke CADR333 cfm
-
Room Occupants (40cfm per)10
-
5 ACH Coverage602 sq ft
-
Power14 W
-
Sound Pressure39 dBA
-
Dimensions20x25x7"
-
Weight8 lbs
-
Variant5 SickleFlow
-
Filters2 Filtrete 16x25 MPR1900+
-
CADR by Intertek (cfm)SMOKE 170 / DUST 218 / POLLEN 236
-
5 ACH Coverage327 sq ft
-
Power7.6 W
-
Sound Pressure @1m34.8 dBA
-
Dimensions16x25x7"
-

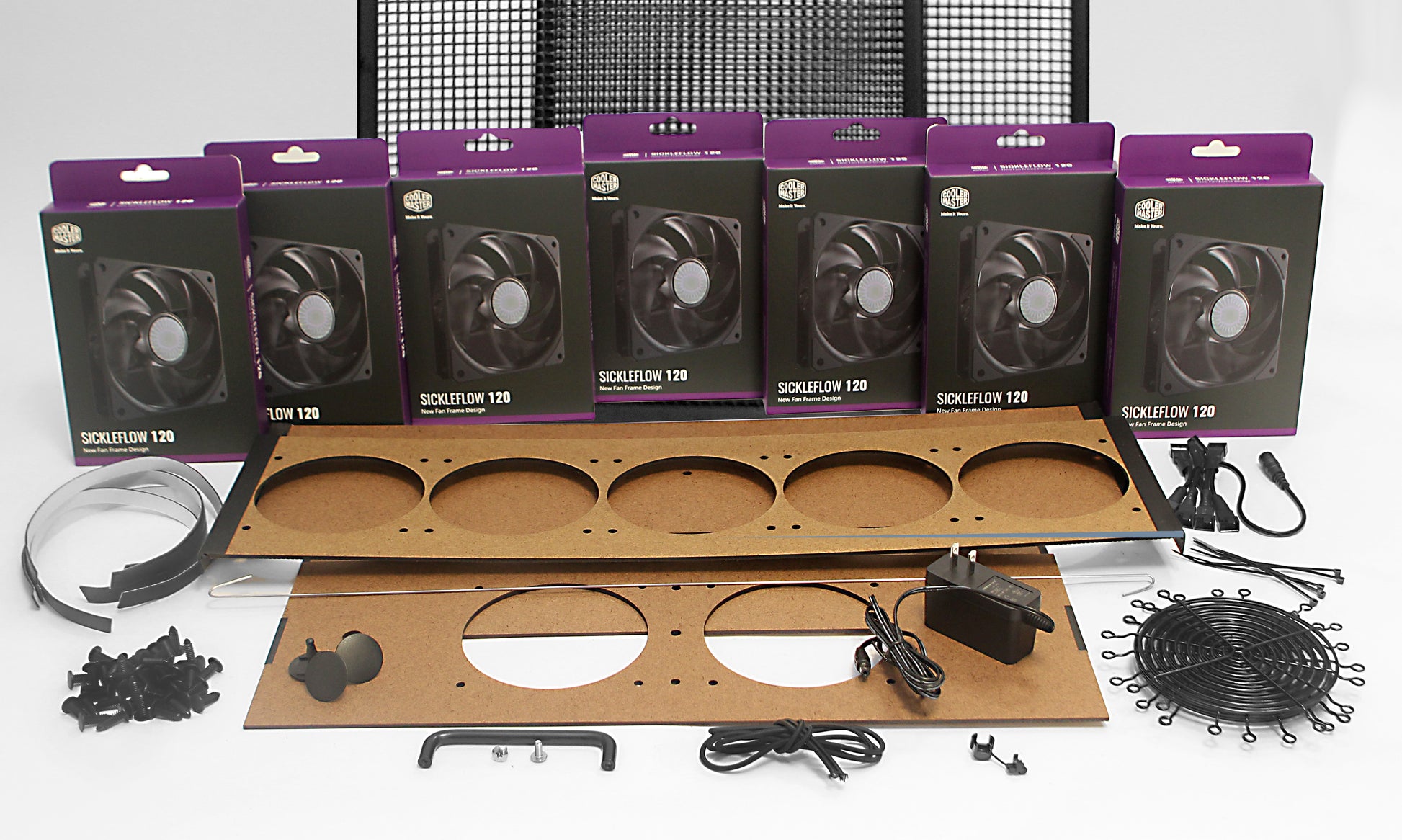

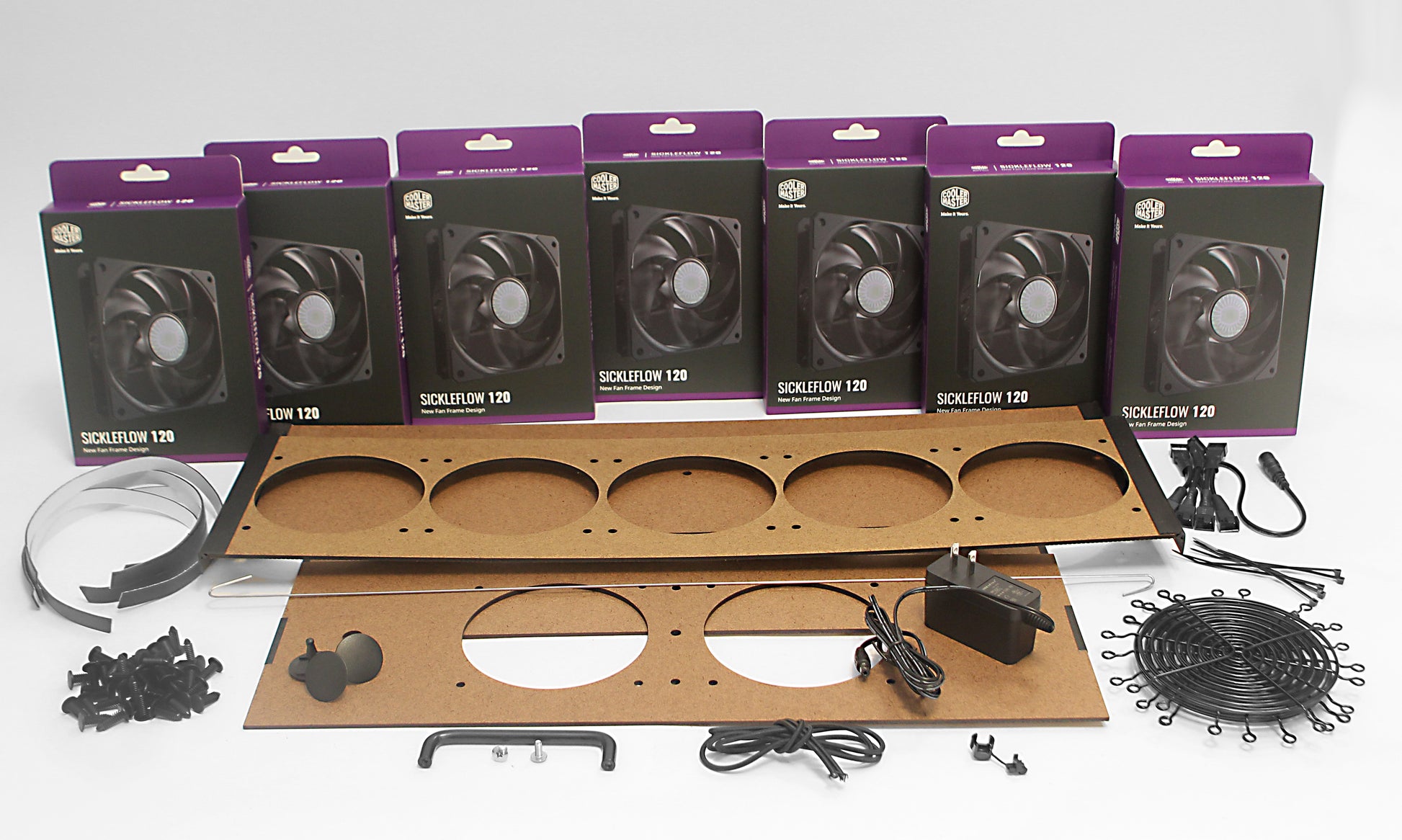

VariantXL - 7 SickleFlow
-
Filters2 Filtrete 20x25 MPR1900+
-
CADR by Intertek (cfm)SMOKE 259 / DUST 323 / POLLEN 370
-
5 ACH Coverage485 sq ft
-
Power10.8 W
-
Sound Pressure @1m37.3 dBA
-
Dimensions20x25x7"
- Integrated Suitcase Handle
- Stands tall or wide against a wall
- Lightweight: 6-8 lbs
- Internal pre-tensioner cords for easy slide-out filter changes and snug fit.
- EU 220V AC to 12V 2A DC wall plug w/ 5.5x2.1mm barrel socket
Unintuitively Quiet
It's dead simple. CleanAirKits deliver top-end portable HEPA performance and they're QUIET. At that performance level, HEPA are not quiet -- people turn them down or turn them off. And we need them to be on and high-performing to passively remove covid and pollutants.The exceptionally large, unencumbered filtration area provided by dual micro pleated 3M Filtretes, and our diffuse banks of silent pressure fans make this possible. Delivering 200-500 cubic feet per minute of clean air means the boxes filter 1000-2000 faster than an adult human breathes!
Always On Safety
Since a Clean Air Kit is not loud and power hungry like a HEPA, it can always be running. And if it's always running, it's always adding a layer of protection for you and your family from smoke & airborne transmission of viruses like Flu, RSV, and Covid.
This corresponds to the pandemic HVAC best practice of continuously running furnace fan circulation with MERV13 or MERV14 filtration.
March 2022: Study of 10,441 Italian Classrooms with
varying mechanical ventilation up to 6 ACH.
-
Quiet on FullClean Air Kits produce 5-10x less noise than HEPA purifiers at max capacity.
-
One Speed DesignSpeed controls defeat the efficacy of most HEPAs -- people turn them down to quiet where air cleaning slows. We have just one speed: silent full blast!
-
Unprecedented Energy EfficiencyDecades of competition has driven amazing silence + efficiency in PC fans. Our fan banks use 6-16W -- comparable to a LED bulb and easy to run off batteries!
Products are returnable within 30 days for a full refund less $44 filter hygiene cost and shipping. Exchanges to other models with same filter sizes are free except for shipping, otherwise $44 for new filters.
All products ship from Missouri via UPS according to an average rate per product (until backend supports live rates accurately). Due to high demand and customizations products may take up to two weeks to ship.
-
